7.2
VARIABLE VISE PRESSURE OPTION

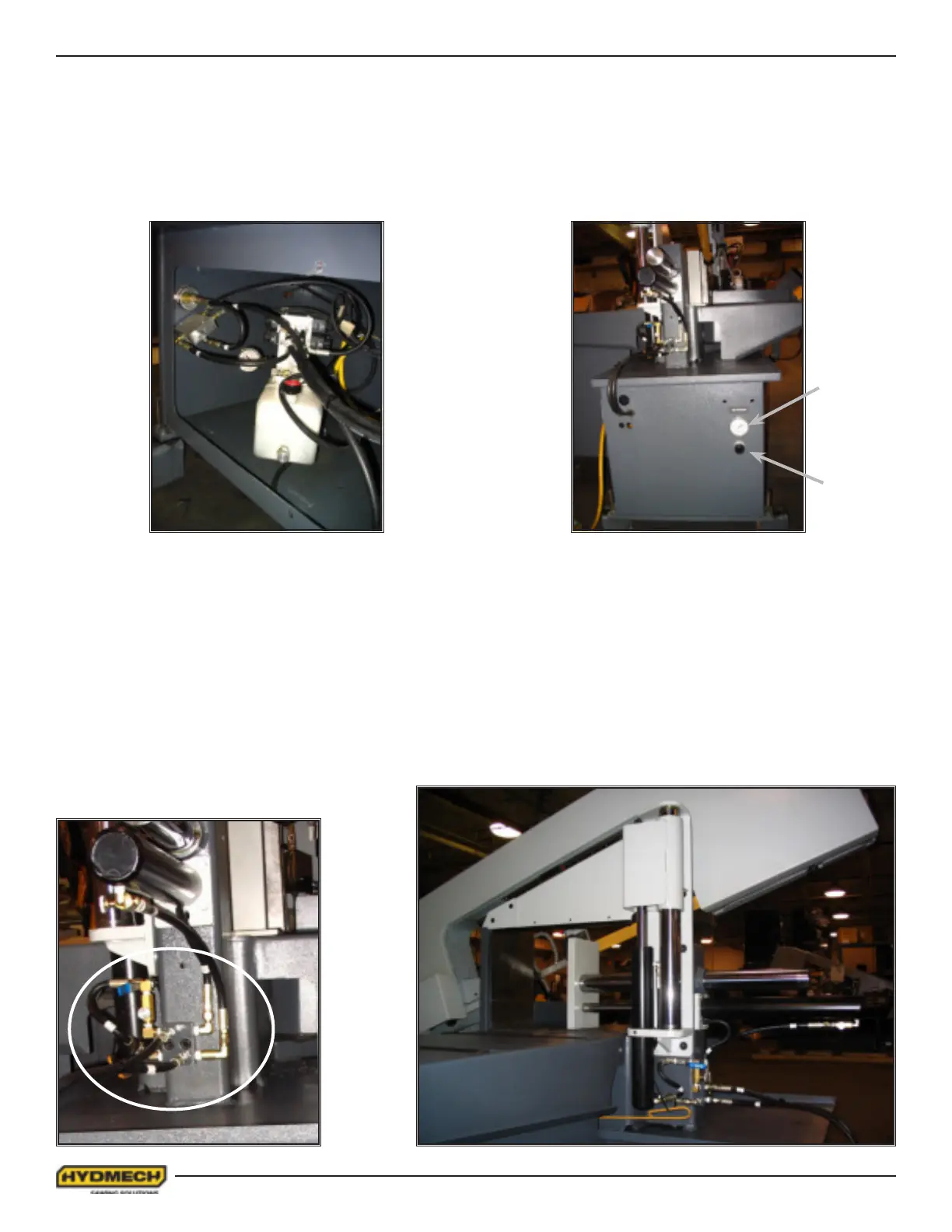

Vise clamping pressure adjustment is located on the idler side of the machine base. Clamping pressure is indicated by the
pressure gauge above the pressure control knob. Turning the knob clockwise increases clamping pressure. The clamp-
ing pressure can be changed innitely form 50PSI to 600PSI (full pump pressure). It has to be taken under consideration
that clamp pressure setting will affect the clamp speed. The actual usable low clamp pressure setting maybe higher than
achievable by controls and is limited by mechanical friction of the vise assemblies.
OVERHEAD BUNDLING
1. The relative speed of the bundling jaw and vise jaw can be adjusted with the needle valve at the cylinder.
2. The following steps will ensure the efcient operation of the Overhead Bundling:
a) The material should be loaded into the machines vise and advanced to a position where a trim can be
performed.
b) Close the Fixed Vise until the Overhead Bundling Arm is slightly (1/32” to 1/64”) above the material to be
cut.
c) Close the ball valve located on the Fixed Overhead Bundling cylinder to lock the position of the Overhead
Bundling Arm and then operate as normal.
