Hydac FluidAqua Mobil FAM 15 User Manual

FAM 15/30/50/70 FAM Set-up and Connection
HYDAC Filter Systems GmbH
en
Page 34 / 68
BEWA FAM15-70Siem 3099574e en 2009-10-08.doc 2008-10-06

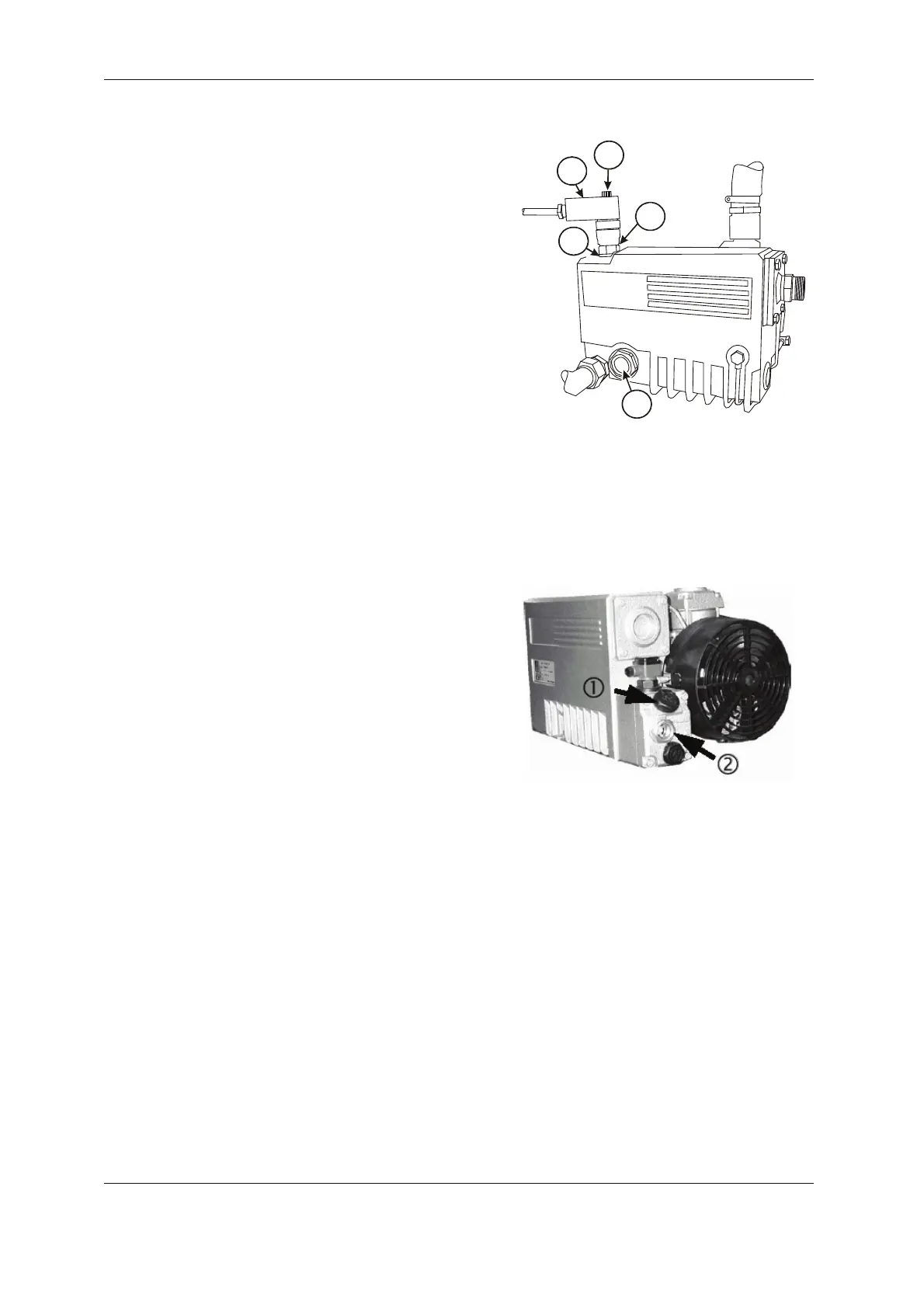

Filling up the rotary vane vacuum pump (FAM 15-30)
Remove the safety screw for the plug at the
level switch (1).
Remove the plug (2) for the level switch.
Unscrew the level switch (3) from the
vacuum pump.
Fill up with vacuum pump oil VE101 through
the filling nozzle (4).
Check the oil level through the inspection
glass (5).
Fill up the vacuum pump oil no higher than
the MAX marking.
We recommend filling up to a level between
the MIN and MAX markings.
The suction strainer is re-mounted in
reverse order.
1
2
3
4
5
Filling up the rotary vane vacuum pump (FAM 50-70)
Remove the screw plug (1).
Fill up with vacuum pump oil VE101 through
the filling nozzle (1).
Check the oil level through the inspection
glass (2).
Fill up the vacuum pump oil no higher than
the MAX
marking.
We recommend filling up to a level between
the MIN and MAX markings.
The suction strainer is re-mounted in
reverse order.
Retransfer pump (only for versions with retransfer pump, external pump)
The differential pressure relief valve on the return pump is preset to 6 bar.
