FAM 15/30/50/70 FAM Set-up and Connection
HYDAC Filter Systems GmbH
en
Page 35 / 68
BEWA FAM15-70Siem 3099574e en 2009-10-08.doc 2008-10-06
Electrical Connection of the FAM
DANGER
Electric shock
Danger of fatal injury
► Any work involving the electrical system may
only be done by a properly trained, certified
electrician.
The voltage and frequency indicated on the rating plate must coincide with the
voltage supply present.
If a plug is present on the FAM or if a plug is mounted, then the FAM is to be
operated from a correspondingly fused socket.

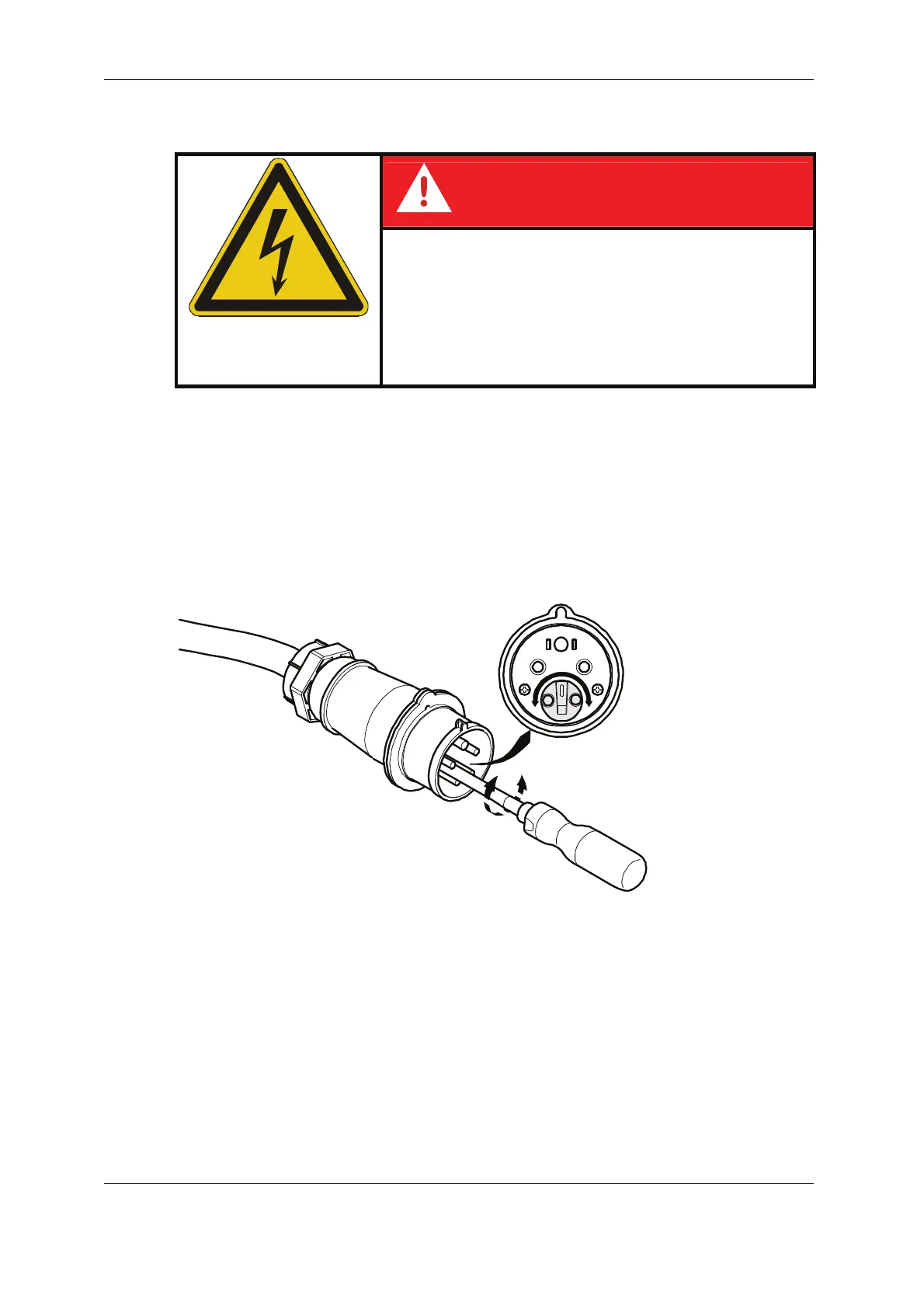

The rotating field of the connection socket must be clockwise. If this is not the case,
then the phases can be rotated in the 16A / 32 A connection plug with the aid of the
phase changing switch in the plug. For the 63A version, the two phases must be
switched on the terminal block S0 (e.g. L1 and L2).
A phase sequence relay checks the correct phase sequence after switch-on. In the
event of an incorrect phase sequence, error message no. 29 is shown on the control
panel.
