Page 11-10: Machine Assemblies and Parts List
Boxxer 421

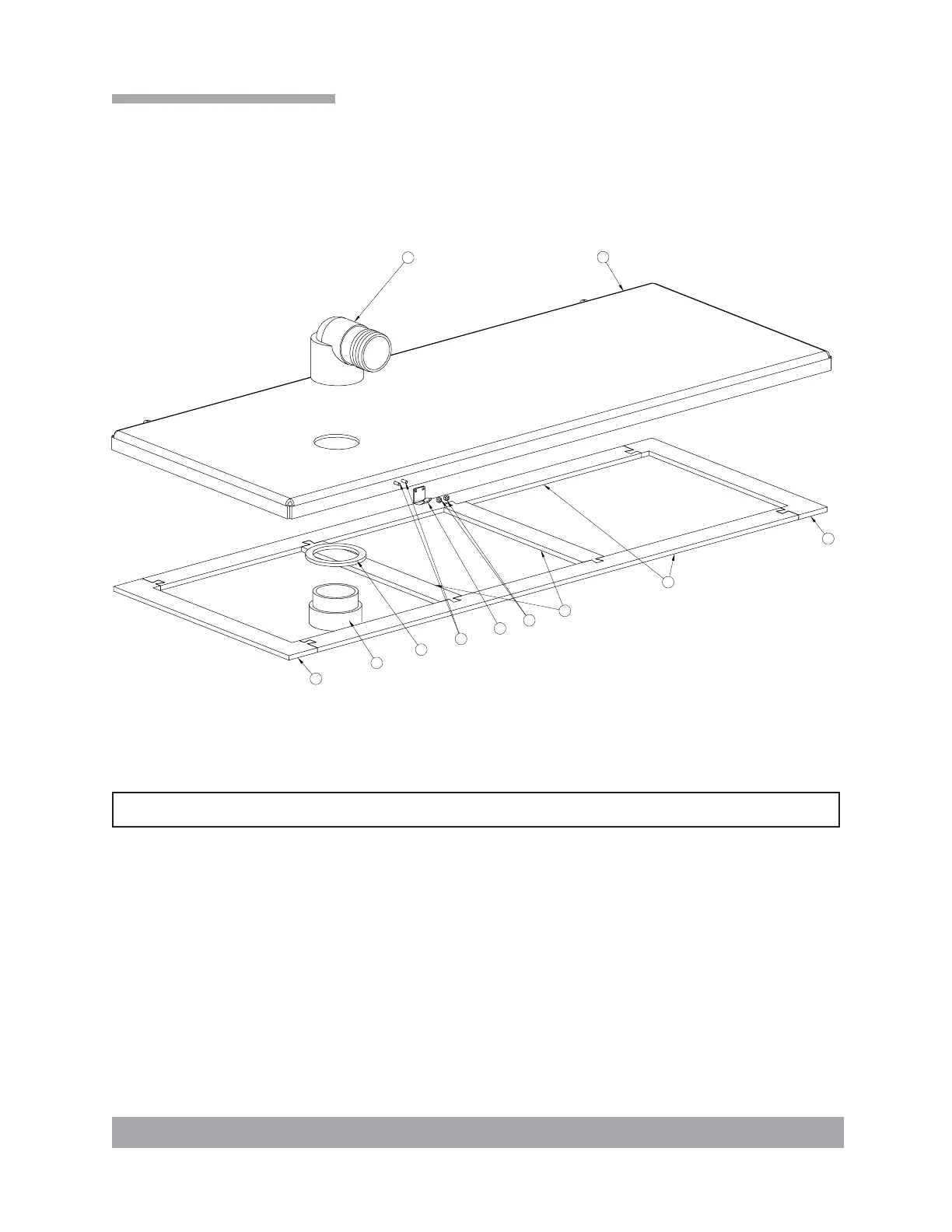

Figure 11-11 70 Gallon Universal Recovery Tank Cover Assembly
D-6891 Rev -
70 Gallon Universal Recovery Tank Cover Assembly Parts List
Item Part Number Description Qty
1 000-041-443 Cover, Single Vac. 70 Gallon Universal Recovery Tank - Wel 1
2 000-052-222 Elbow, 2" Barb x 2" FPT 1
3 000-057-202 Gasket, End - Recovery Tank 2
4 000-057-203 Gasket, Middle - Recovery Tank 2
5 000-057-204 Gasket, Middle - Recovery Tank - 70 Gallon 2
6 000-057-015 Gasket, 1-1/2" Bulkhead Fitting 1
7 000-052-219 Adapter, 2" NPT x 2" F Slip 1
8 000-086-008 Latch, Bungie - Strike 1
9 000-143-539 Screw, #6-32UNC x 0.50" Lg. Button Head Allen 2
10 000-094-063 Nut, #6-32UNC Nylock 2
1
2
10
8
9
4
5
3
7
6
3
