Hydro-Gear Smartec - Bluetooth Module; VIM (Vehicle Integration Module)

Smartec HSA 7
Bluetooth Module
The Bluetooth Module (shown in fi gure 2) functions as a tool that allows the SMARTEC
®
drive con-
trol system to wirelessly communicate through MyMow
®
and SMARTEC
®
applications. A bluetooth
compatible smartphone is required to access the MyMow
®
and SMARTEC
®
applications.
Smartec Devices
Vehicle Integration Module (VIM)
The VIM (shown in Figure 3) is the core communicating module of the SMARTEC
®
HSA (high speed
actuated) drive control system and performs several critical functions. The VIM interfaces with all of
the modules within the SMARTEC
®
HSA drive control system by performing machine state checks
and ensuring feedback data from the modules are within confi gured parameters.
When the VIM is initialized various mechanical safeties are observed before the vehicle is fully
operational.

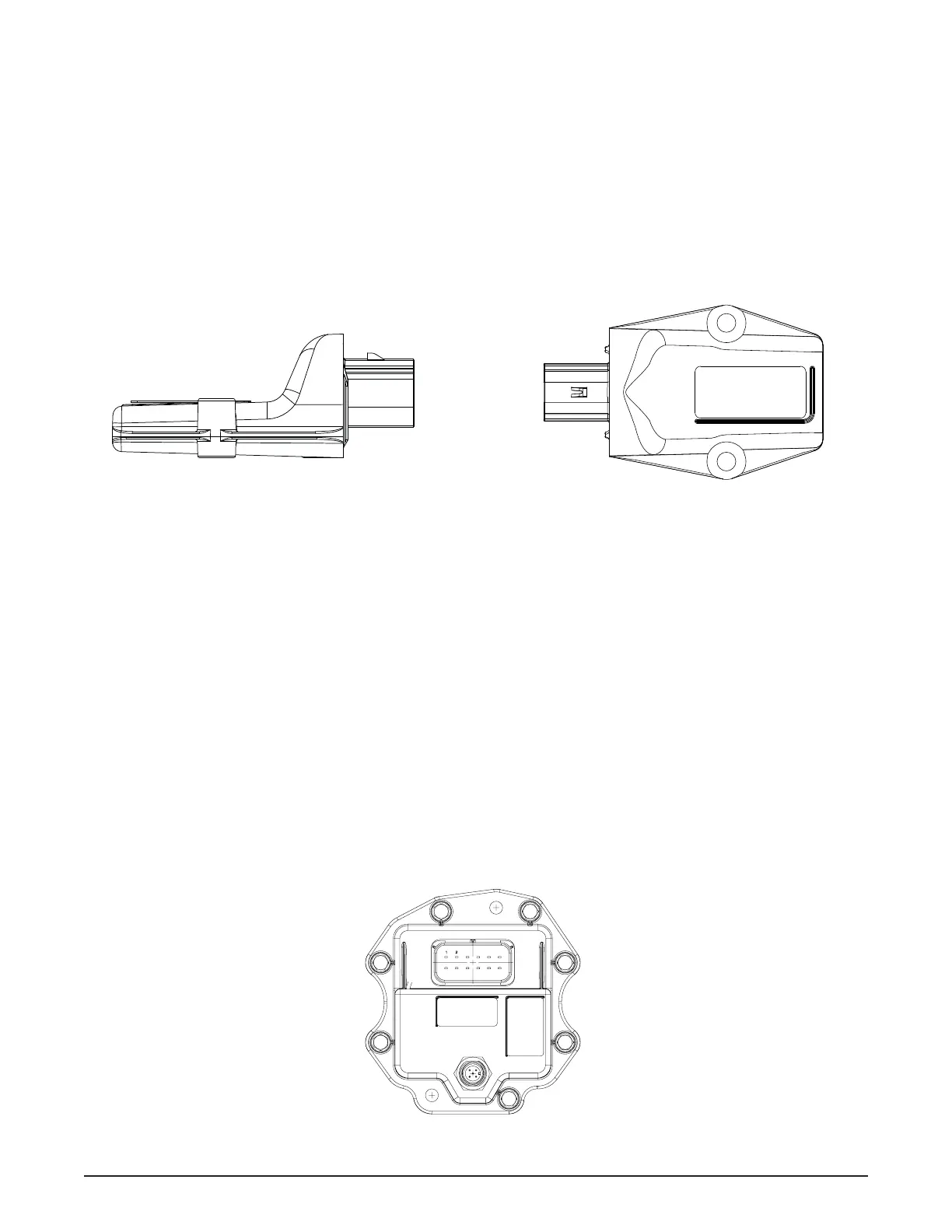

Figure 2.
Figure 3.
