24 T2™
Refer to Figure 16
Disassembly
1. Remove all external items previously dis-
cussed in their recommended order.
2. Remove the bull gear set — two miter gears
(102) with two differential pins (108), and
bull gear (107).
Inspection
1. Inspect all items of the bull gear set for wear
or damage.
BULL GEAR SET
Assembly
1. Reassemble all parts in the reverse order
of disassembly.
2. Install the bull gear (107).
3. Install the miter gears (102) with the differ-
ential pins (108).

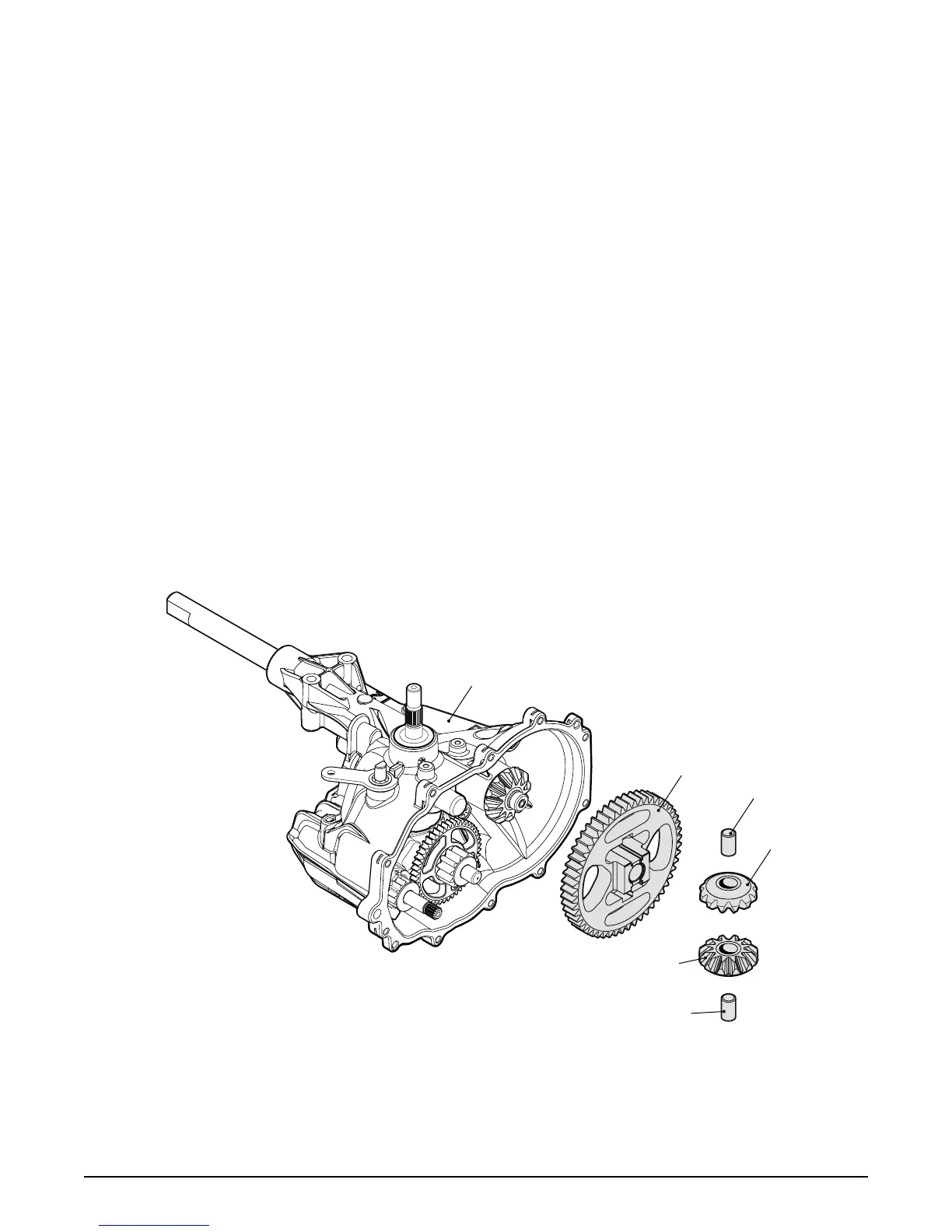

Figure 16, Bull Gear Set
107
108
102
102
108
1
