Hydro-Gear T2 - Reduction Gear Set Service

T2™ 25
REDUCTION GEAR SET
Refer to Figure 17
Disassembly
Reduction Gear Set:
1. Remove all external items previously dis-
cussed in their recommended order.
2. Remove the washer (93), jack shaft gear
(91) and reduction gear (90).
3. Remove the jack shaft (92) and second
washer (93).
Inspection
1. Inspect all items of the reduction gear set
for wear or damage.
Assembly
1. Reassemble all parts in the reverse order
of disassembly.
2. Install the washer (93) and jack shaft (92).
3. Install the jack shaft gear (91) into the re-
duction gear (90). Insert onto the jack shaft
(92).
4. Place the washer (93) onto the jack shaft
(92).

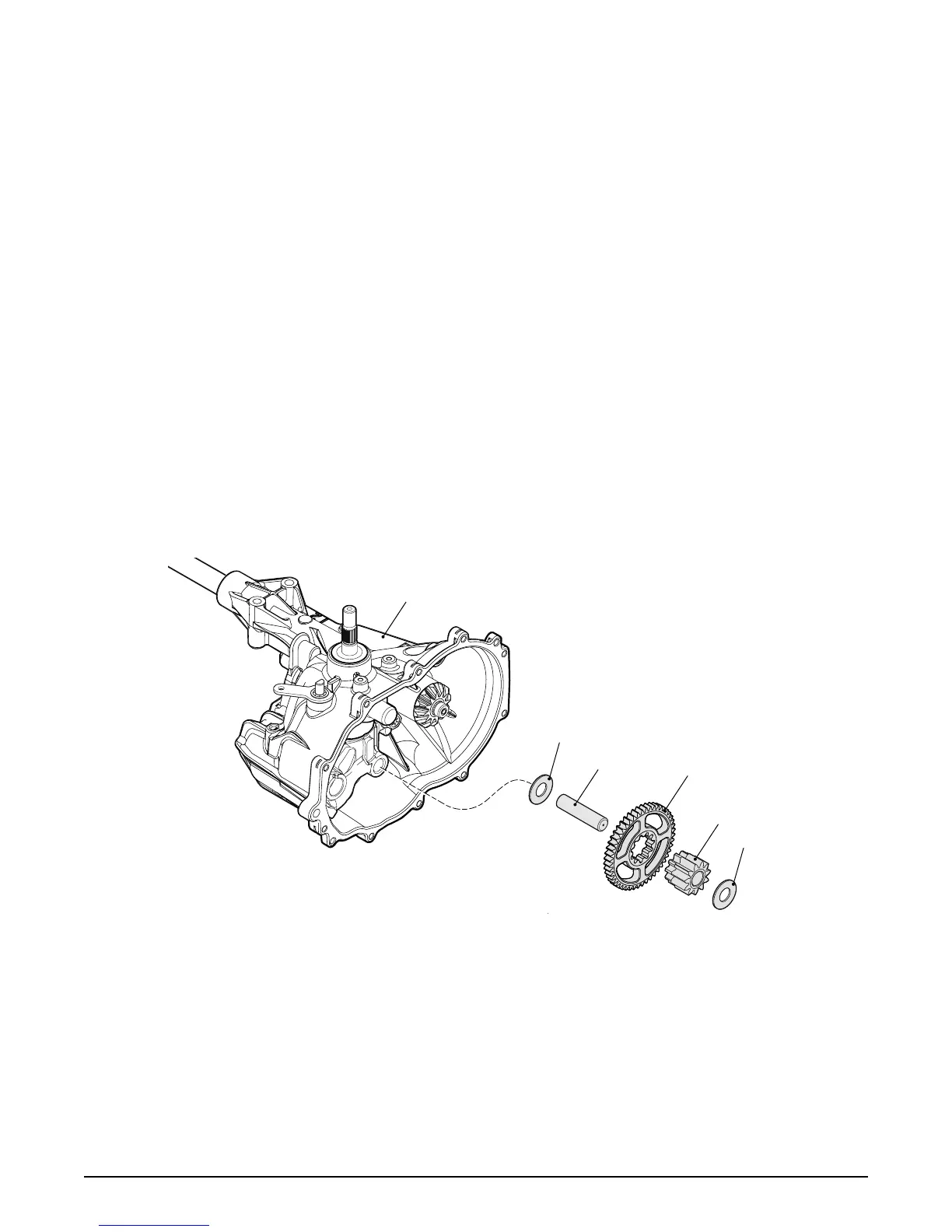

Figure 17, Reduction Gear Set
1
90
92
93
93
91
