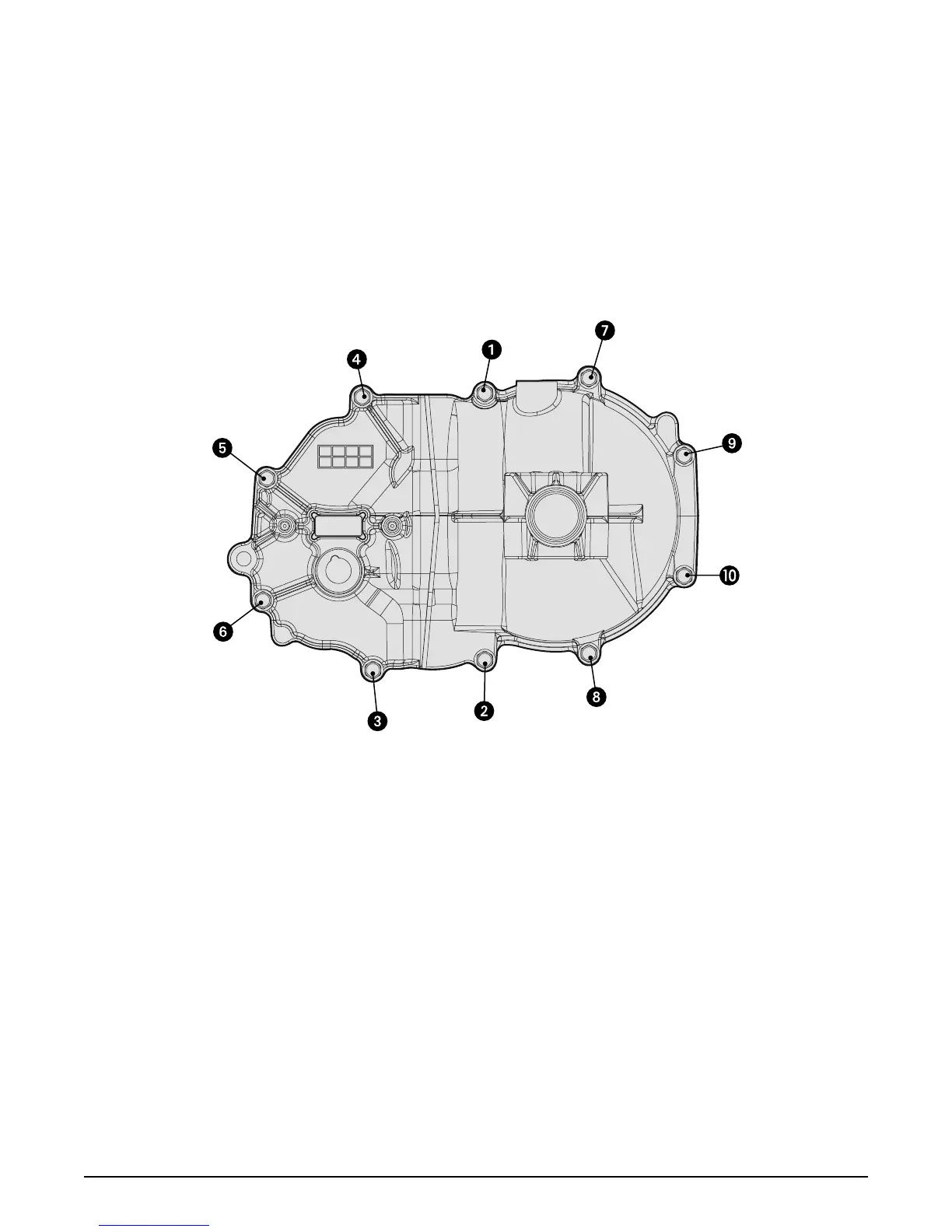

Figure 28, Screw tightening sequence
Starting with the number “1” screw location, tighten sequentially through to “10.”
Torque each screw to 105 – 155 lb-in (11.8 – 17.5 Nm).
NOTE: As a general rule, use the low end of
the torque specifi cation.
SIDE HOUSING – SCREW TIGHTENING SEQUENCE
