30 T2™

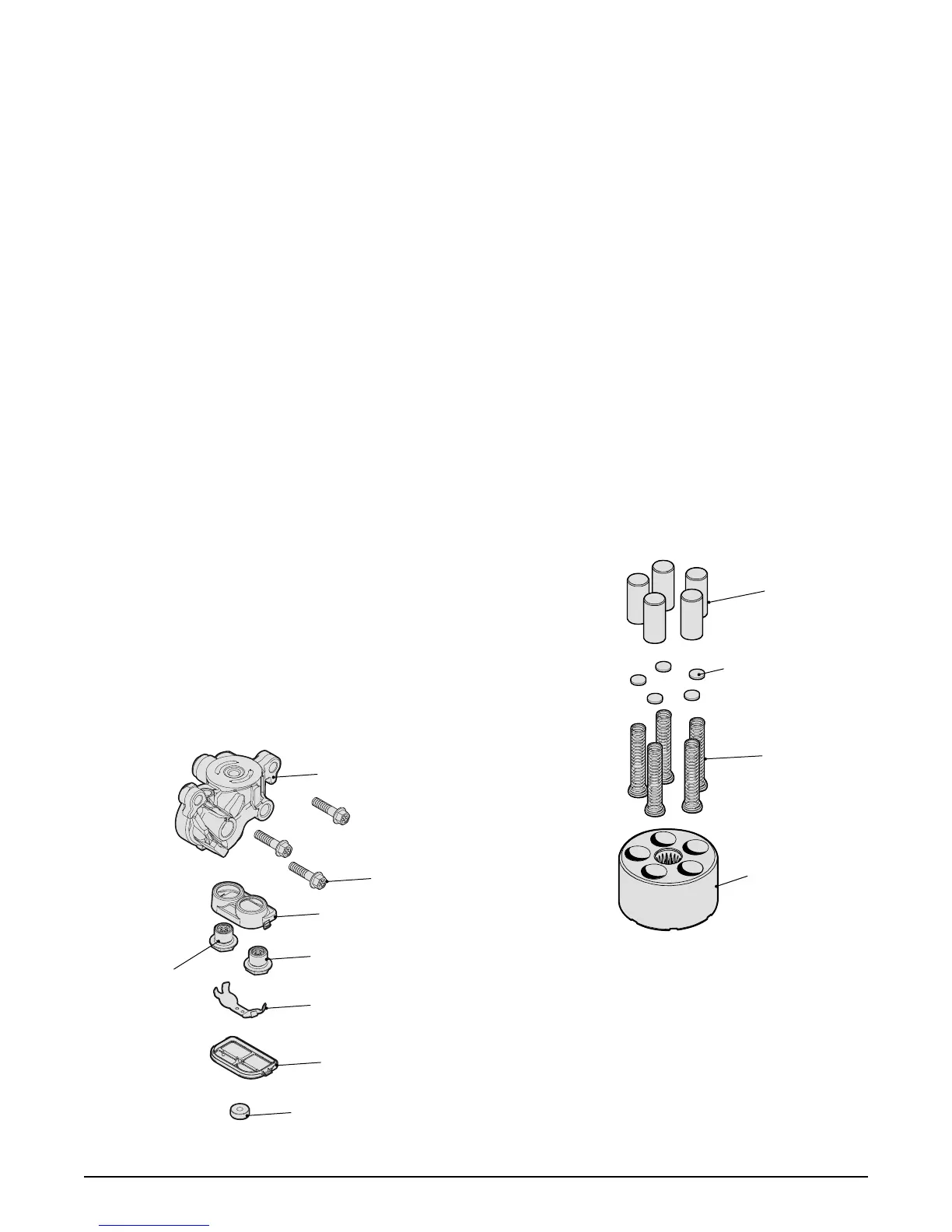

Figure 23, Filter Assembly
FILTER ASSEMBLY
Figure 24, Pump/Motor Cylinder Block Assembly
CYLINDER BLOCKS
Refer to Figure 24
Inspect each component of the cylinder block
assemblies for wear or damage. Inspect the
cylinder blocks’ running surface for scratches.
Replace if necessary.
NOTE: During separation of the cylinder
blocks, take care not to damage the
surfaces of the pistons and block.
Apply a thin coating of oil to all compo-
nents of the cylinder block assemblies
before reassembly.
After reassembling the cylinder block compo-
nents, set aside until ready for installation of
the center section and swashplate. Refer to
pages 27 and 29.
Refer to Figure 23
Disassembly
1. Remove the magnet (28) and the fi lter (27).
The fi lter can be removed without damaging
the fi lter base.
2. Remove the defl ector (29).
3. Inspect the check plugs (24, 25). Remove
if necessary.
4. Inspect the fi lter base (26). Remove/replace
if necessary.
Inspection
1. Inspect all parts for wear or damage. Re-
place as necessary.
Assembly
1. Install the fi lter base, if removed.
2. Install the check plugs, if removed. Refer to
torque chart on page 15.
3. Install the defl ector (29).
4. Install a new fi lter (27) and the magnet
(28).
Pistons
Thrust Washers
Cylinder Block
Springs
28
27
29
24
26
22
20
25
To Next Page
