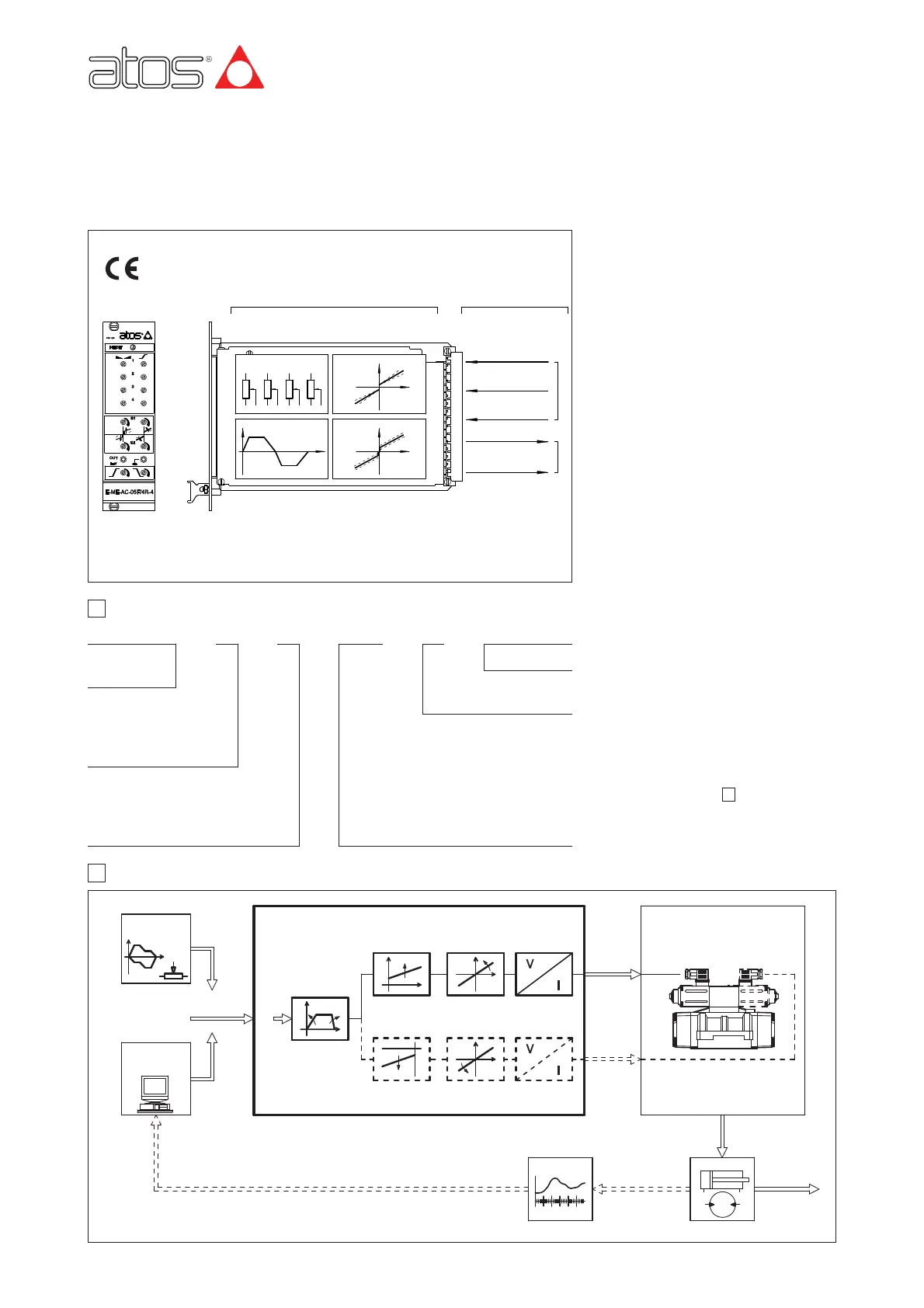

Hydro atos E-BM-AC-05F - Page 10

E-ME = Electronic
driver in
Eurocard
format
Electronic drivers type E-ME-AC
analog, Eurocard format, for proportional valves without transducer
Table G035-11/E
E-ME
AC = for proportional valves
without transducer
01F = for single solenoid proportional valves
05F = for double solenoid proportional valves
Options:
- = standard symmetrical ramp
/RR = with adjustable dissymmetrical ramps
-4 = with 4 reference potentiometers
/RR-4 = with rising and falling ramps and
4 reference potentiometers
/4R-4 = with 4 ramps and
4 reference potentiometers
/I = suitable to receive current reference
signal 4÷20 mA
(not suitable with -4, /RR-4, /4R-4 options)
Series number
Set code (see 4.4)
AC – **01F /*–
1 MODEL CODE
2 BLOCK DIAGRAM
G035
–
USER FUNCTIONS & CONTROL OPTIONS USER INTERFACE
SCALE ADJUST
INTERNAL REFERENCE
POTENTIOMETERS
RAMP GENERATOR DEAD BAND ADJUST
REFERENCE SIGNAL
SUPPLY 24 V
ENABLE SIGNAL
SOLENOID SUPPLY
SOLENOID SUPPLY
INPUTSOUTPUTS
www.atos.com
E-ME-AC drivers control the current to
the solenoid of Atos proportional valves
without pressure or position transdu-
cer, regulating the spool position, the
flow or the pressure according to the
electronic reference signal.
Features:
• bias and scale regulations by poten-
tiometers
• symmetrical (standard) or dissym-
metrical (/RR and /RR-4 options)
rising and falling ramp generator
• factory pre-setted
• Eurocard format (DIN 41494 modular
unit)
• 4 internally generated reference
signals, selectables by external ON-
OFF signals (-4, /RR-4, /4R-4
options)
• electronic filters on input and output
lines
• CE marking granting the conformity
to the EMC Directive (Electromag-
netic Compatibility)
• both sides of the card with shielded
cover with E faston connector
Applications:
Pressure, flow, position open or closed-
loop regulation systems, according to
the block diagram .
2
ELECTRONIC DRIVER E-ME-AC-01F (*)
CLOSE LOOP
CONTROL
(AXES CARD)
DEAD BAND SCALE
CURRENT
AMPLIFIER
RAMP
(*) dotted line for E-ME-AC-05F
ACTUATOR FEEDBACK
COIL S1
COIL S2
REFERENCE
PROPORTIONAL VALVE
DRIVING CURRENT
FLOW
PRESSURE
POSITION
SPEED
ACCELERATION
FORCE
TRANSDUCER
ACTUATORS
DRIVING CURRENT
EXTERNAL
GENERATOR
DEAD BAND SCALE
CURRENT
AMPLIFIER
