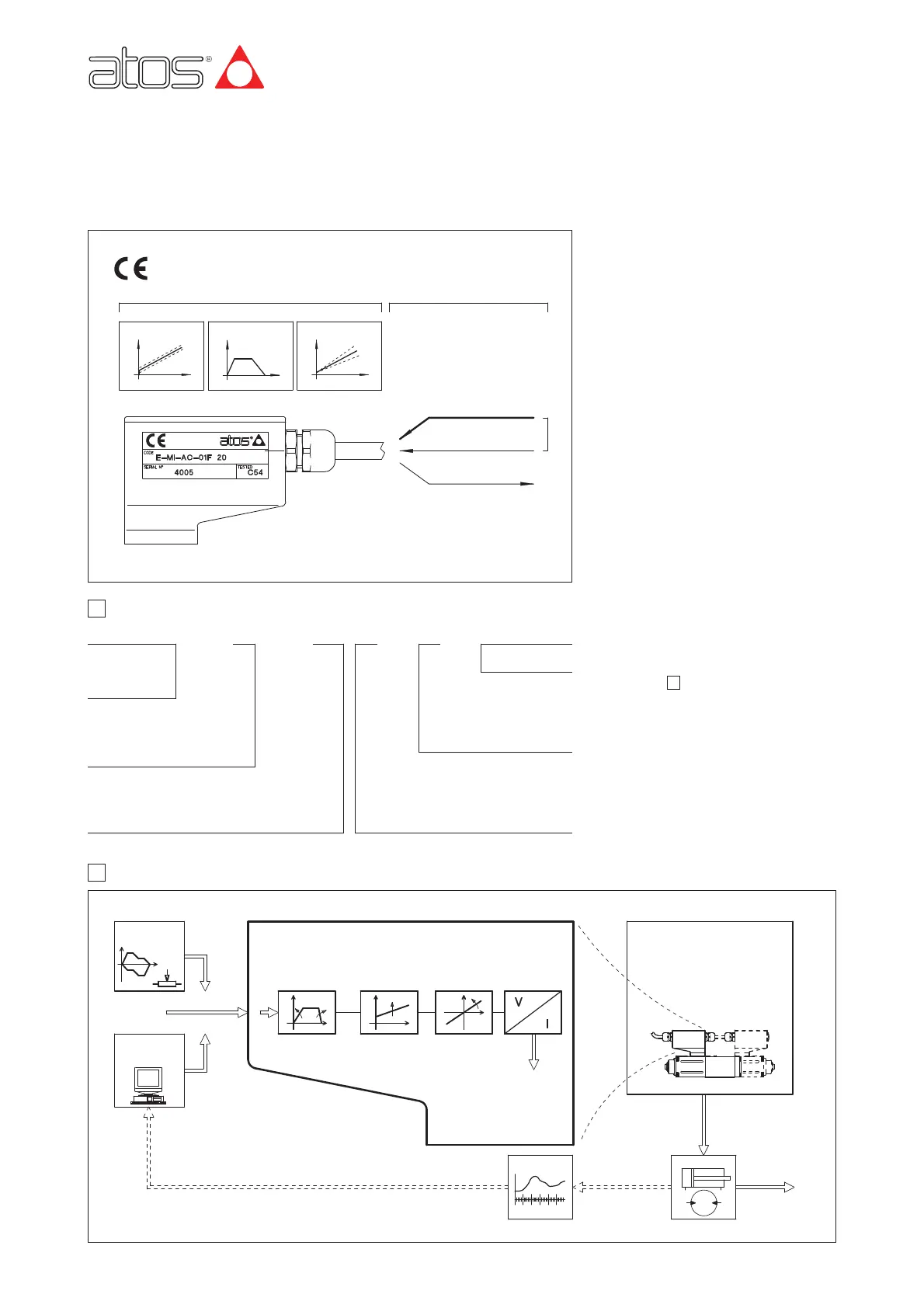

USER FUNCTIONS AND CONTROL OPTIONS
USER INTERFACE
DEAD BAND ADJUSTMENT RAMP GENERATOR SCALE ADJUSTMENT
SUPPLY 24V
REFERENCE SIGNAL
POTENTIOMETER SUPPLY
OUTPUT INPUTS
Electronic drivers type E-MI-AC
analog, DIN 43650 plug-in format, for proportional valves without transducer
Table G010-15/E
E-MI-AC drivers control the current to the
solenoid of Atos proportional valves
without pressure or position transducer,
regulating the spool position, the flow or
the pressure according to the electronic
reference signal.
Features:
• bias and scale regulations by poten-
tiometers;
• symmetrical (standard) or dissym-
metrical (/RR option) rising and fal-
ling ramp generator;
• factory pre-setted
• alluminium box with IP65 protection
degree
• electronic filters on input and output
lines;
• CE marking grating the conformity to
the EMC Directive (Electro ma gne tic
compatibility).
Applications:
Pressure, flow, position open or closed-
loop systems, according to the block
diagram .
2
E-MI
E-MI = electronic
driver plug format
as per DIN 43650
AC = for proportional valve
without transducer
01F = for single solenoid proportional valve
Options:
- standard symmetrical ramps
/RR = adjustable dissimmetrical ramps, adjustable
dither, suitable also for current signal 0÷20 mA
/7 = pre arranged for double solenoid valves
control
set code
(see 4.4)
AC –01F /*–
1 MODEL CODE
2 BLOCK DIAGRAM
G010
–
EXTERNAL
GENERATOR
CLOSE LOOP
CONTROL
(AXES CARD)
ELECTRONIC DRIVER E-MI-AC-01F
RAMP DEAD BAND SCALE
CURRENT
AMPLIFIER
PROPORTIONAL VALVE
DRIVING
CURRENT
FLOW
PRESSURE
POSITION
SPEED
ACCELERATION
FORCE
ACTUATORS
Series number
**
REFERENCE
www.atos.com
TRANSDUCER
ACTUATOR FEEDBACK
