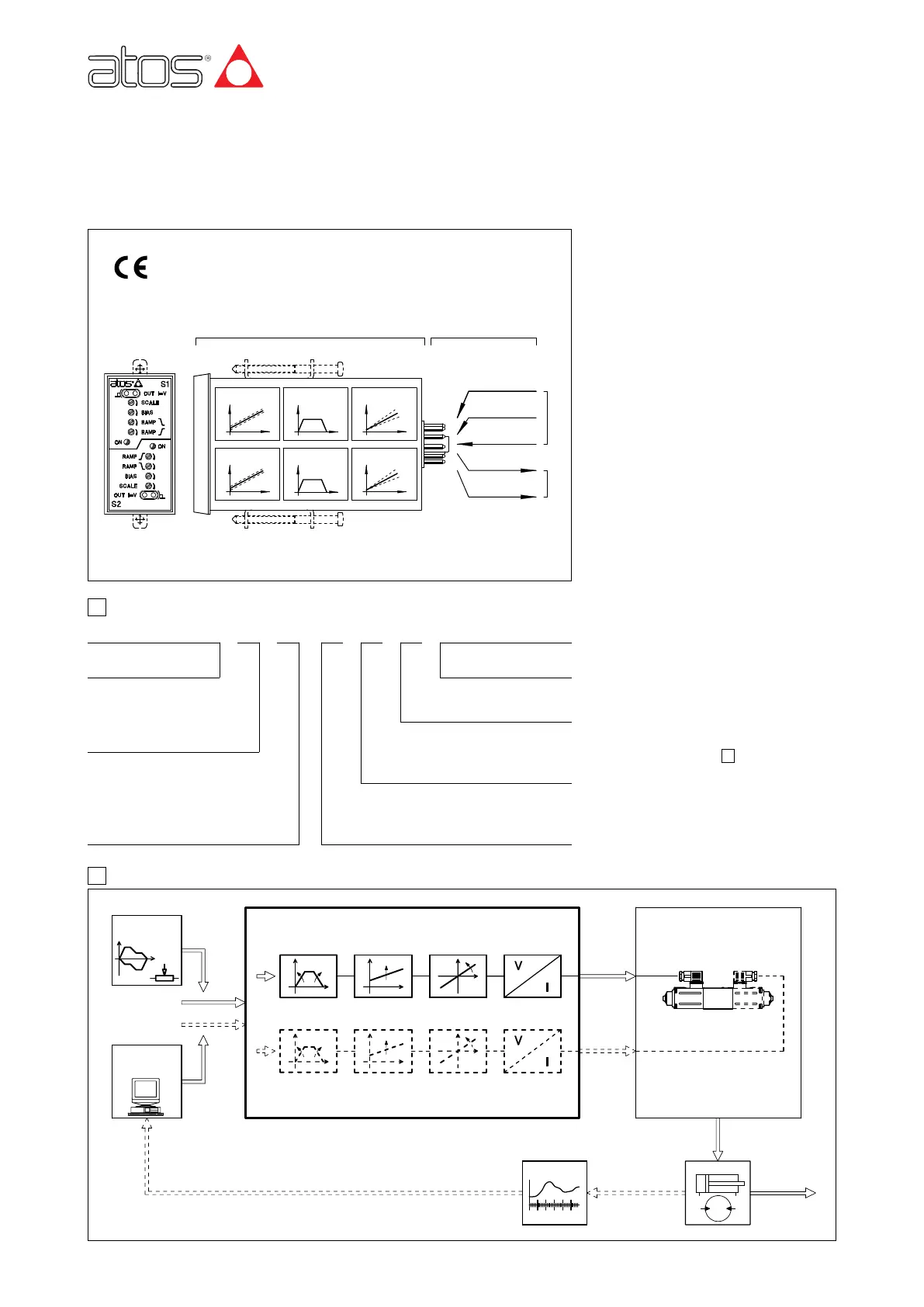

Hydro atos E-BM-AC-05F - Page 6

Electronic drivers type E-BM-AC
analog, DIN 43700 UNDECAL fast plug-in, for proportional valves without transducer
Table G025-4/E
E-BM-AC drivers control the current to
the solenoid of Atos proportional valves
without pressure or position transducer,
regulating the spool position, the flow or
the pressure according to the electronic
reference signal.
Features:
• bias and scale regulations by poten-
tiometers
• symmetrical (standard) or dissym-
metrical (/RR option) rising and fal-
ling ramp generator
• factory pre-setted
• alluminium box (DIN 43700 modular
unit)
• can be mounted on back panel DIN
guide or on front panel
• power supply 24 V
DC or 12 VDC (/12
option)
• electronic filters on input and output
lines
• CE marking granting the conformity
to the EMC Directive (Electromag-
netic Compatibility)
Applications:
Pressure, flow, position open or closed-
loop regulation systems, according to
the block diagram .
2
E-BM
E-BM = electronic driver
Fast plug-in format
AC = for prortional valves
without transducer
01F = for single solenoid proportional valves
011F = for two single solenoid proportional valves
05F = for double solenoid proportional valves
Notes:
- the reference R2 must be supplied only for E-BM-AC-011F
- with the version 011F it is possible to regulate two-single solenoid proportional valves also contemporary
Options:
- = standard symmetrical ramp
/RR = with adjustable dissymmetrical ramps
Series number
- = 24 V
DC
power supply
/12 = 12 V
DC
power supply (see 4.1)
set code (see 4.4)
AC –– **01F /*–
1 MODEL CODE
2 BLOCK DIAGRAM
G025
–
USER FUNCTIONS AND CONTROL OPTIONS
USER INTERFACE
SUPPLY 24V
REFERENCE
SIGNAL R1
REFERENCE
SIGNAL R2
COIL S1
SUPPLY
COIL S2
SUPPLY
OUTPUTS INPUTS
RAMP
GENERATOR
DEAD BAND
ADJUST
SCALE
ADJUSTMENT
RAMP
GENERATOR
DEAD BAND
ADJUST
SCALE
ADJUSTMENT
EXTERNAL
GENERATOR
CLOSE LOOP
CONTROL
(AXES CARD)
ELECTRONIC DRIVER E-BM-AC-0*F (*)
RAMPS
RAMPS
DEAD BAND
SCALE
CURRENT
AMPLIFIER
REFERENCE R1
REFERENCE R2
(*) dotted line for E-BM-AC-011F and E-BM-AC-05F
TRANSDUCER
ACTUATOR FEEDBACK
PROPORTIONAL VALVE
DRIVING CURRENT
DRIVING CURRENT
FLOW
PRESSURE
POSITION
SPEED
ACCELERATION
FORCE
ACTUATORS
www.atos.com
COIL S1
COIL S2
DEAD BAND
SCALE
CURRENT
AMPLIFIER
