SECTION 2: PROGRAMMING INSTRUCTIONS

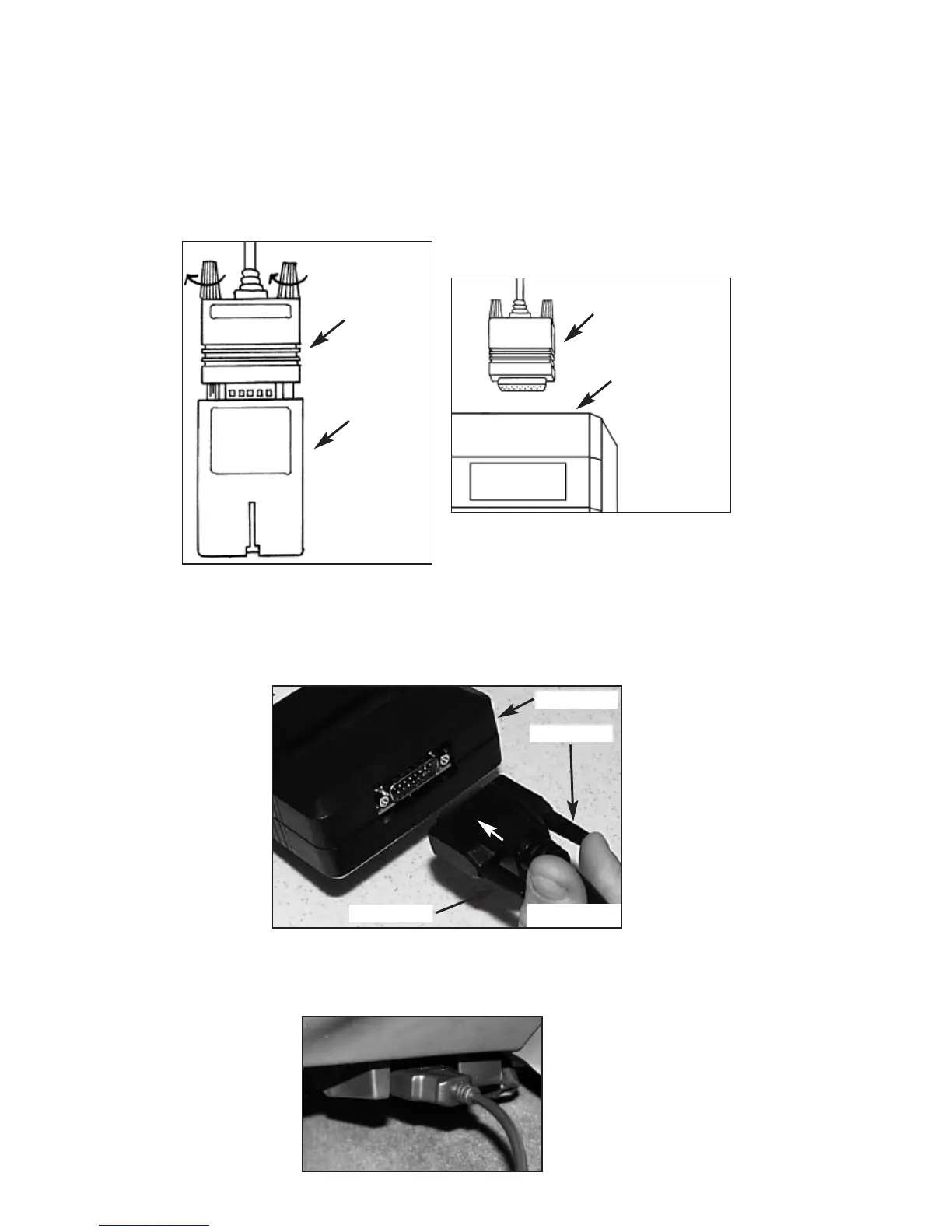

• Connect one (1) end of the provided cable to the black plastic
adapter using the thumbscrews as in Figure C. Connect the
other end of the cable to the programmer as shown in Figure D,
and tighten the thumbscrews.
• Connect one (1) end of the provided cable to the programmer
as in Figure E and tighten the two (2) thumbscrews.
• See Figure F. Locate the Data Link Connector (DLC) under the
driver’s side of the dash panel near the driver’s right knee.
6
Figure F
Figure E
Programmer
FOR 1994 CAMARO/FIREBIRD AND
1994-1995 IMPALA SS/CAPRICE/ROADMASTER:
FOR ALL OTHER LT1/LT4 VEHICLES:
Data link cable
Data link
adapter
Programmer
cable
Programmer
Figure D
Figure C
Thumbscrew
Thumbscrew
