Duramax/Duramax Hyamp Robotic Torches Service Manual 807460 31
2 – Torch Setup
For the recommended minimum bend radius of the torch lead, see Figure 1 or Figure 2 on page 16.
If you are using Hypertherm’s robotic torch clamp (228806), complete the following instructions:

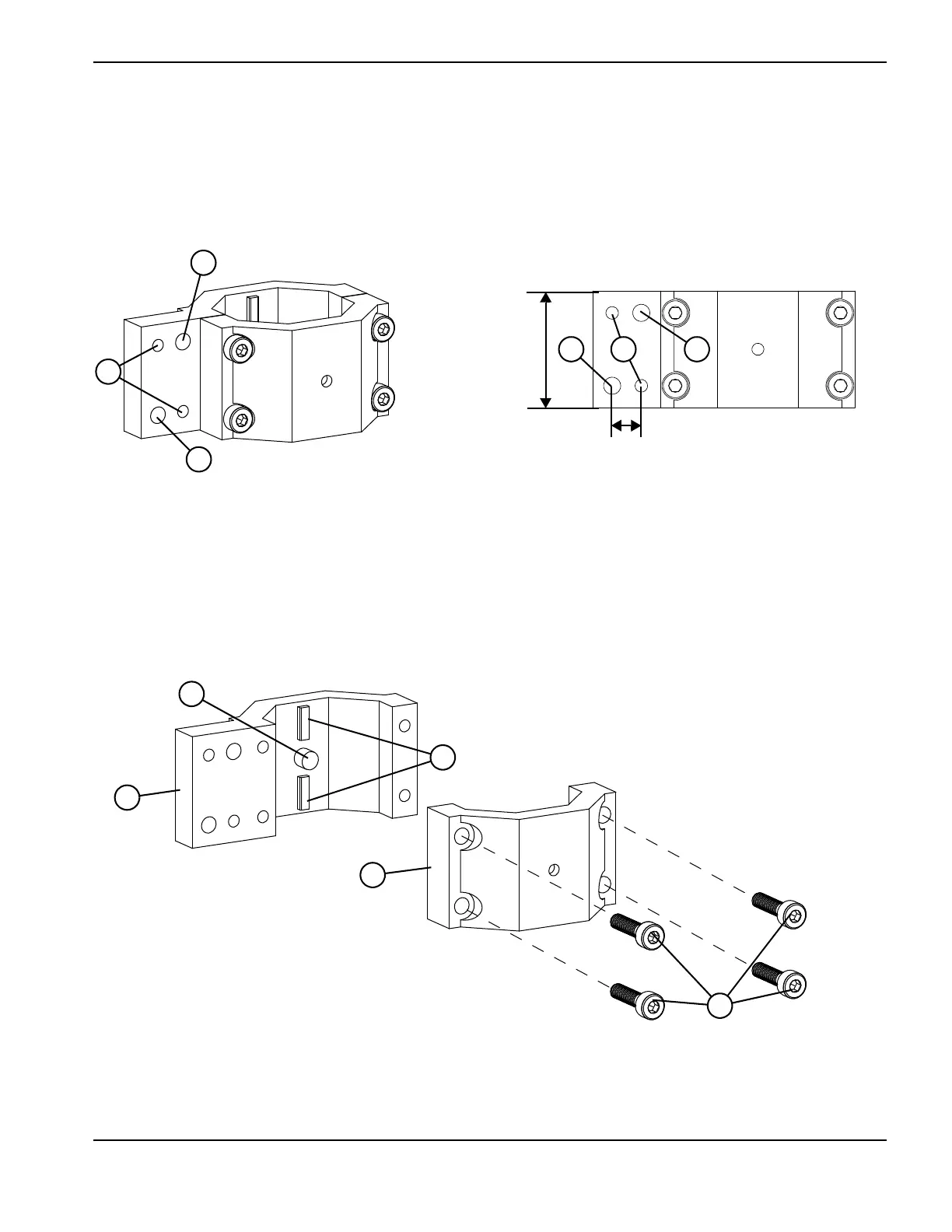

1. Mount the robotic torch clamp using one set of mounting holes (through hole or threaded).
Figure 11
2. Separate the torch clamp by removing the 4 screws from the front half of the torch clamp.
A second positioning dowel is provided in the kit to be used for additional mounting
support, if necessary, or as a replacement part.
Figure 12
0.76 cm
(0.30 inch)
1.91 cm
(0.75 inch)
2
1
1
2 11
1 0.45 cm (0.18 inch) through hole 2 M4 x 0.7 threaded hole
1 Positioning dowel
2 Rear half of the clamp
3 Front half of the clamp
4 Screws (4)
5 Anti-rotational tabs
