32 Duramax/Duramax Hyamp Robotic Torches Service Manual 807460
2 – Torch Setup
3. Align the torch with the clamp using either the increment markings or the positioning holes.
If you are using the increment markings, you must remove the positioning dowel from the
rear half of the torch clamp. Remove the dowel by pressing the end located in the center
hole of the torch clamp until it comes out.
4. Verify that the anti-rotational tabs on each half of the torch clamp are aligned with the slots in the torch.
5. Loosely hand tighten the 4 screws.

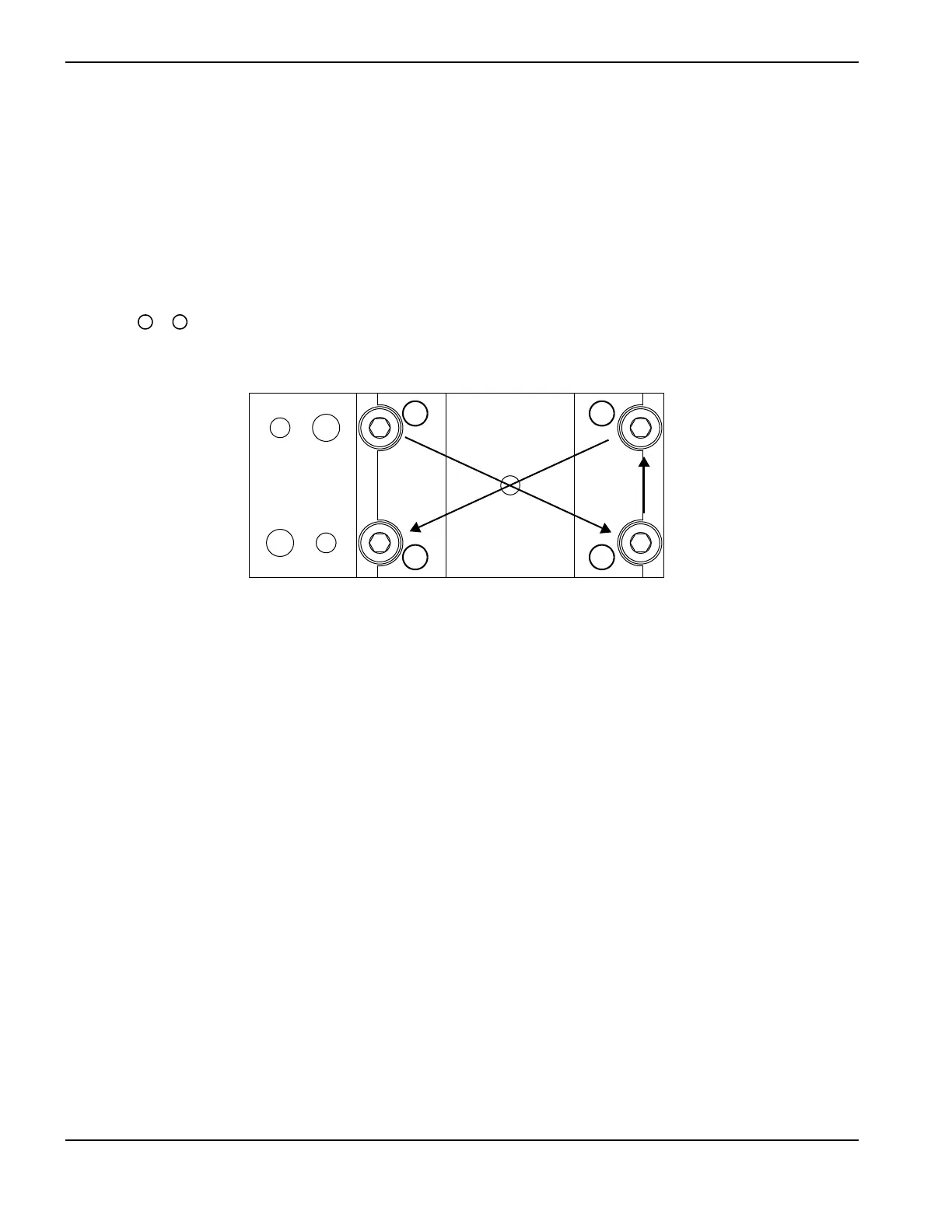

6. Starting with the upper left screw, step torque the 4 screws to 17.3 kg∙cm (15 inch∙pounds) in the pattern shown
below – .
Figure 13
