Duramax/Duramax Hyamp Robotic Torches Service Manual 807460 57
4 – Component Replacement

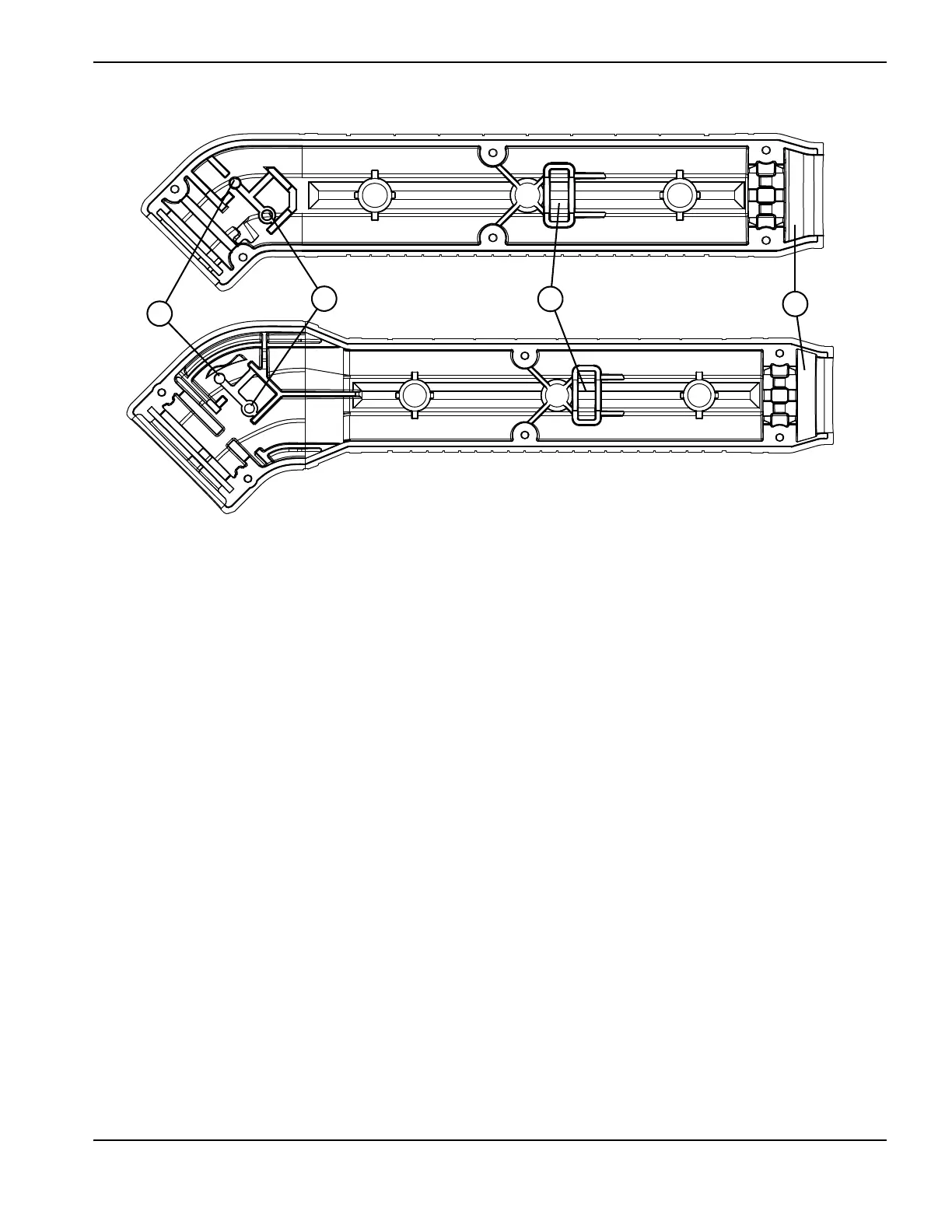

Figure 24 – Duramax 45° (top) and Duramax Hyamp 45° (bottom)
Install the positioning barrel
1. Lay the right half of the positioning barrel on a flat surface with the inside facing up.
If replacing the positioning barrel, use the new barrel halves included in the kit.
2. Press the cap-sensor switch into its post hole and onto its mounting post. (See Figure 24.)
3. Route the cap-sensor wires below the slot for the gas hose fitting’s flange.
4. Route the pilot arc wire under the gas tube and above the slot for the gas hose fitting’s flange. (See Figure 25 and
Figure 26.)
1 Cap-sensor switch mounting post
2 Cap-sensor switch post hole
3 Gas fitting flange slot
4 Strain relief slot
