PARTS LIST
230V CE Installation Manual
3-2

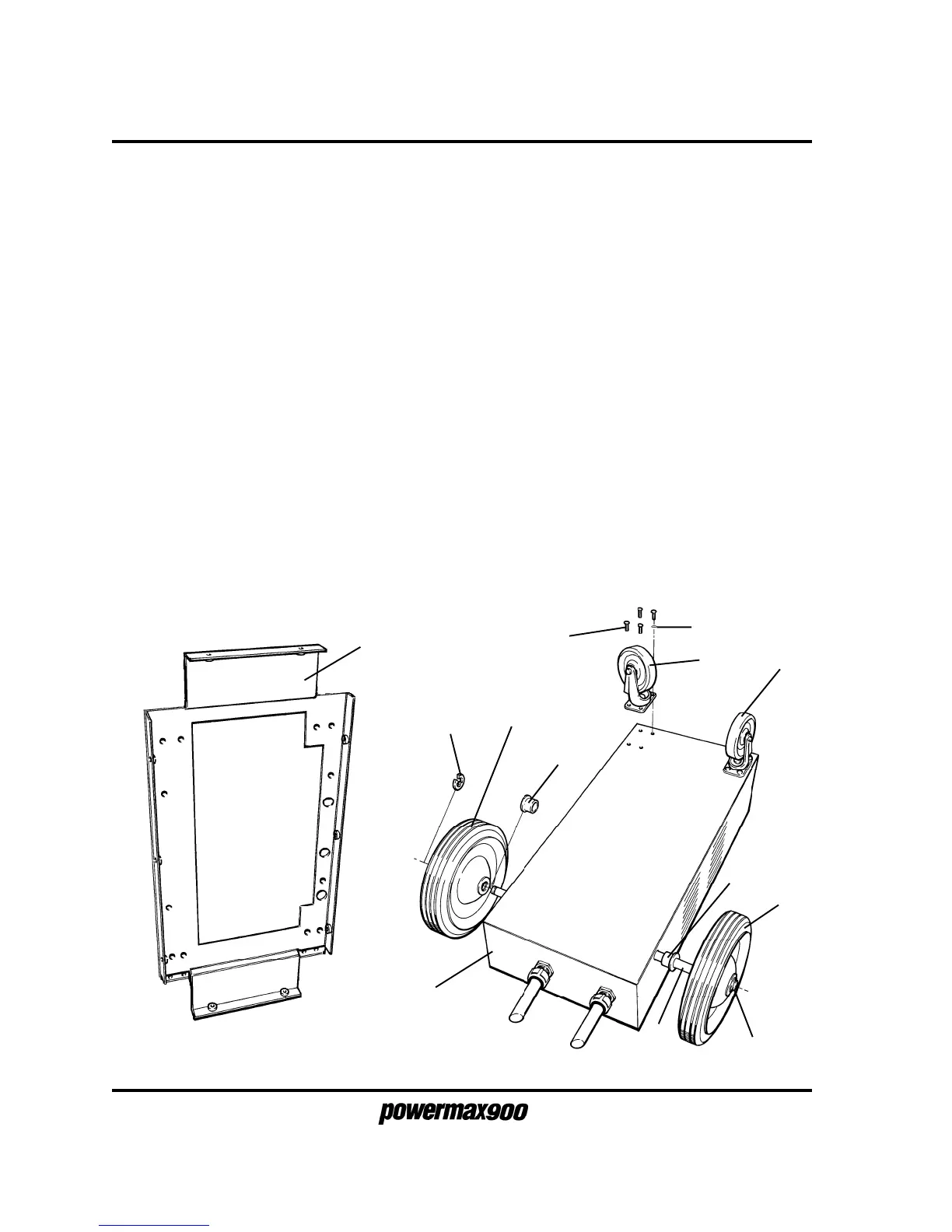

Figure 3-1 Powermax900 230V CE Panel, Wheels and Casters
Index No. Part No. Description Quantity
1 001568 Panel:Powermax800 600V 1
2 004672 Axle:Powermax800 Power Unit 1
3 008973 Shoulder Washer:1/2" X 27/64 Nylon 2
4 027057 Wheel:8" X 1.75" 2
5 027249 Retaining Ring:1/2" Shaft Extension 2
6 027299 Caster:MAX70 Swivel 2
7 075467 M/S:8-32 X 3/8 Phillips Head Round SSB 10
8 075470 M/S:10-32 X 3/4 Phillips Head Pan 20
9 075174 Lockwasher :#10 Internal 20
075160 Kepnut:10-32 S/Z 12
129365 Powermax900 230V CE Conversion SA 1
10 001672 Cover:Powermax900 600V 1
11 001570 Bracket:Powermax800 600V 2
12 008752 Fuseblock:3Position 30A600V 13/32X1-1/2 1
13 008949 Terminal board:3-Terminal 1
14 108092 Fuse:32A 400V 10mm X 38mm 3
15 008963 Strain relief:3/4" X .625-.750 2
16 014236 Transformer:Powermax900 230V Input 1
17 123383 Cable:Powermax900 230V Conv. Fuses 1
18 123384 Cable:Powermax900 230V Conv. Term. Block 1
POWERMAX900 230 VOLT CONVERSION KIT - 128313
1
3
10
8
9
6
6
3
4
5
2
5
4
To Next Page
