1800 SRM 1038 Repair
Brake Housing
CAUTION
Do not exceed a 3 mm (0.118 in.) diameter bead
of silicone gasket material. Too much gasket
material blocks the passages and damages the
components.
1. Apply a 3.0 mm (0.118 in.) diameter continuous
bead of silicone gasket material on the mounting
surface of the brake housing. The bead must go
around each capscrew hole and port. Flatten or
smear the bead of silicone around the ports. Be
careful not to get silicone into the ports or brake
housing bore. See Figure 33.

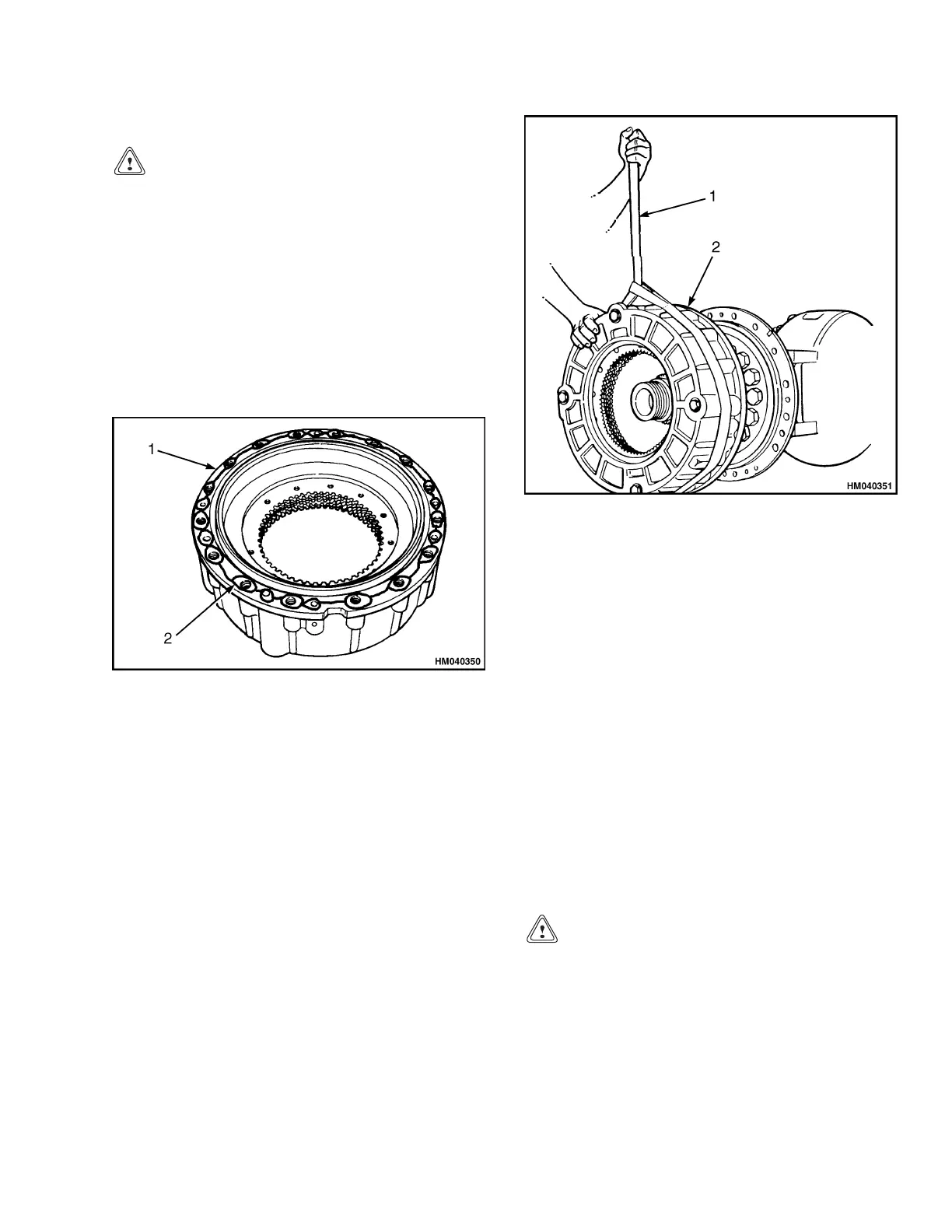

1. BRAKE HOUSING
2. SILICONE BEAD
Figure 33. Brake Housing
2. Connect a lifting device to the brake housing so
that the bores for the bleeder screw and the inlet
fitting in the housing are aligned with the correct
holes in the cover.
3. Install two studs in the brake housing. The studs
are installed opposite each other. Make the stud
by removing the head of a housing-to-cover cap-
screw. Cut a flat-bladed screwdriver slot in the
end of the stud without the threads. The studs
help install the housing correctly on to the cover.
4. Lift the housing on to the cover so that the studs
go through the holes in the cover. Verify the bores
for the bleeder screw and the inlet fitting are
aligned with the holes in the cover. Push and
hold the brake housing against the cover. See
Figure 34.
1. LIFTING DEVICE
2. BRAKE HOUSING
Figure 34. Brake Housing
5. Install the capscrews and washers that fasten
the brake housing to cover.
6. Remove the two assembly studs and install the
last two capscrews and washers.
7. Tighten the capscrews to the specified torque.
See Specifications.
8. Remove the lifting device from the brake hous-
ing.
9. Install and tighten the following components on
the back (inboard) side of the cover of the brake
housing. See Figure 6.
a. Bleederscrew: Tightento20to27N•m(15
to 20 lbf ft).
CAUTION
Use the correct fitting. You cannot replace a
tapered seat fitting with an O-ring fitting. You
cannot replace an O-ring fitting with a tapered
seat fitting. If the wrong fitting is used, the
housing and the fitting will be damaged.
b. Inlet fitting for the hydraulic line: A tapered
seatfittingoranO-ringfitting.
15
