Two-Stage Mast With Limited Free-Lift Repair 4000 SRM 736
Legend for Figure 11
1. OUTER WELDMEN
T
2. INNER WELDMENT
3. LIFT CYLINDER
4. LIFT CHAIN
5. CHAIN SHEAVE
6. CHAIN ANCHOR
7. LOAD ROLLER
8. SHIMS
9. SNAP RING
10. STRIP BEARING
11. SHIMS
12. FITTING
13. CLAMP
14. CLAMP
15. CLAMP
16. HOSE
17. VELOCITY FUSE
18. BRACKET
19. HOUSING
20. FITTING
21. LOWERING CONTROL VALVE
22. FITTING
23. FITTING

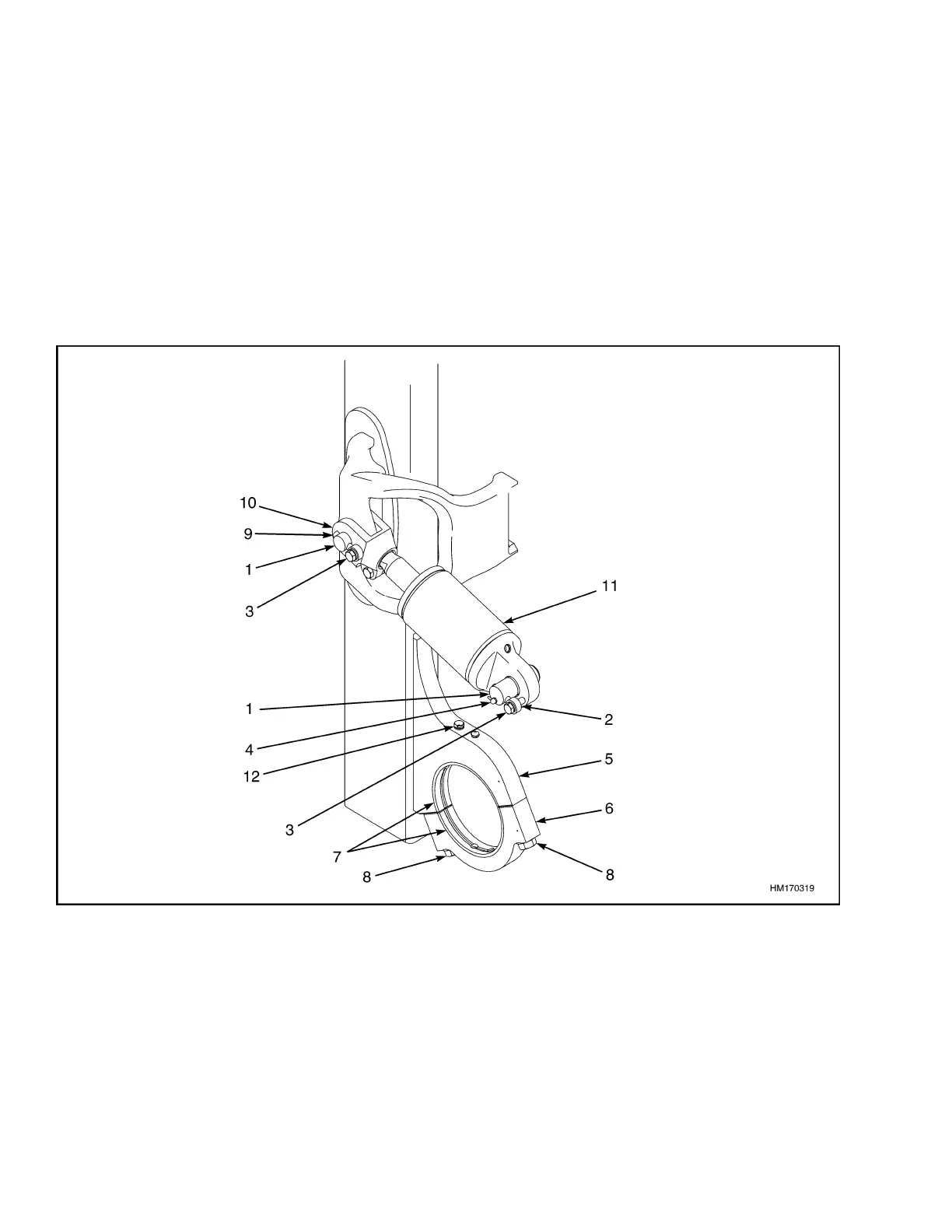

1. TILT PIN
2. ANCHOR PIN CAPSCREWS
3. CAPSCREW AND WASHER
4. LUBE FITTINGS
5. MAST MOUNTING HANGER
6. MAST MOUNTING CAP
7. MAST BUSHING
8. MAST MOUNTING
CAPSCREWS
9. TILT PIN RETAINER
10. ROD END
11. TILT CYLINDER ASSEMBLY
12. CAPSCREW AND WASHER
FOR MAIN LIFT CYLINDER
RESTRAINT BRACKET
Figure 12. Mast Mounting and Tilt Cylinder Removal - S3.50-5.50XM (S70-120XM) and
E3.50-5.50XL
3
(E70-120XL
3
)ModelLiftTrucks
14
