3.3.1 Introduction
Front Panel

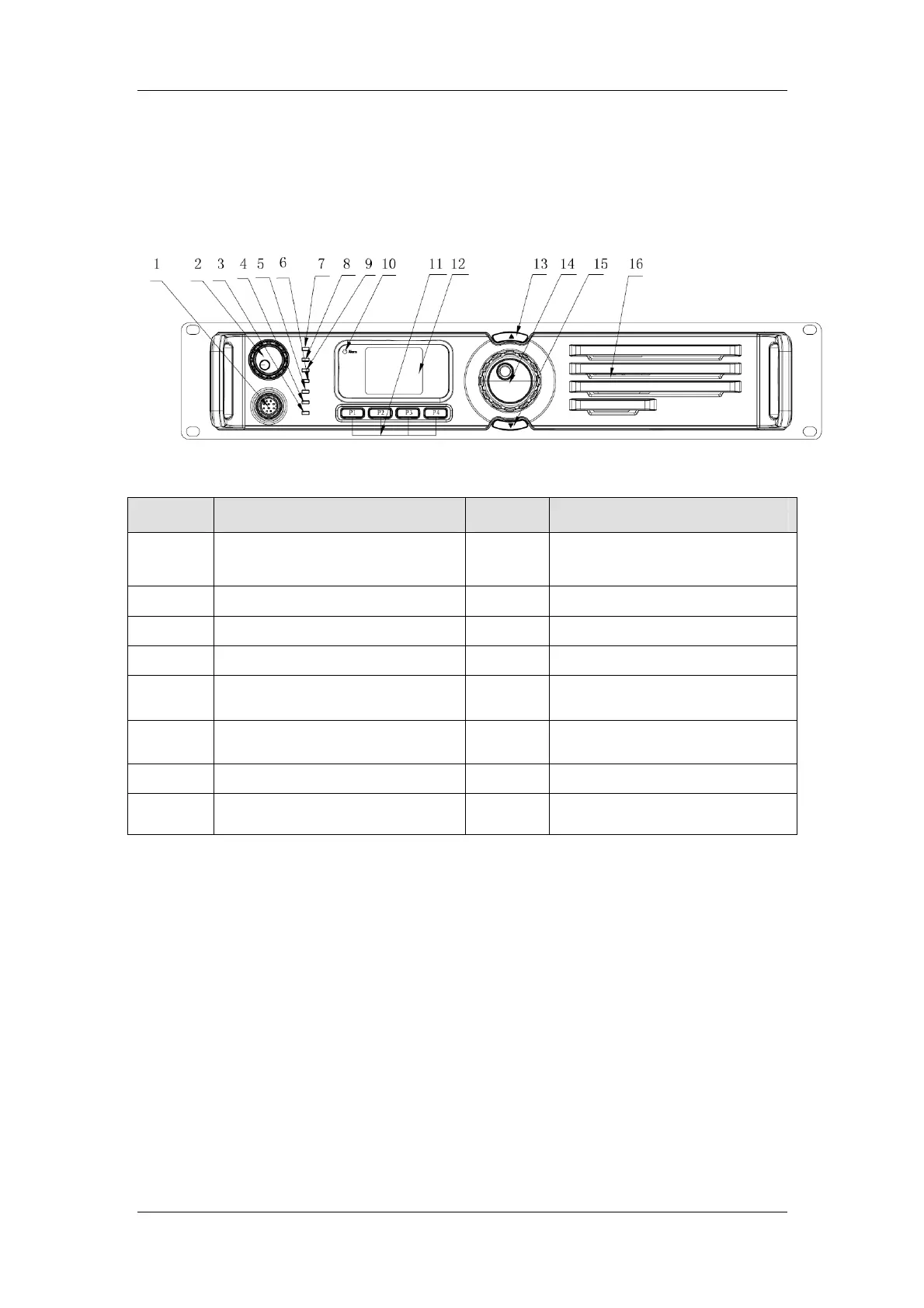

The front panel
No. Part Name No. Part Name
1 Accessory Jack 2
Volume Control Knob/Power
Indicator
3 Repeater Mode Indicator 4 Analog Mode Indicator
5 Slot 2 RX Indicator 6 Slot 2 TX Indicator
7 Digital Mode Indicator 8 Slot 1 TX Indicator
9 Slot 1 RX Indicator 10 Alarm Indicator
11
【P1】, 【P2】, 【P3】, 【P4】
12 LCD Display
13 Channel Up (CH+) * 14 Navigation Knob
15 Channel Down (CH-) * 16 Speaker Switch
