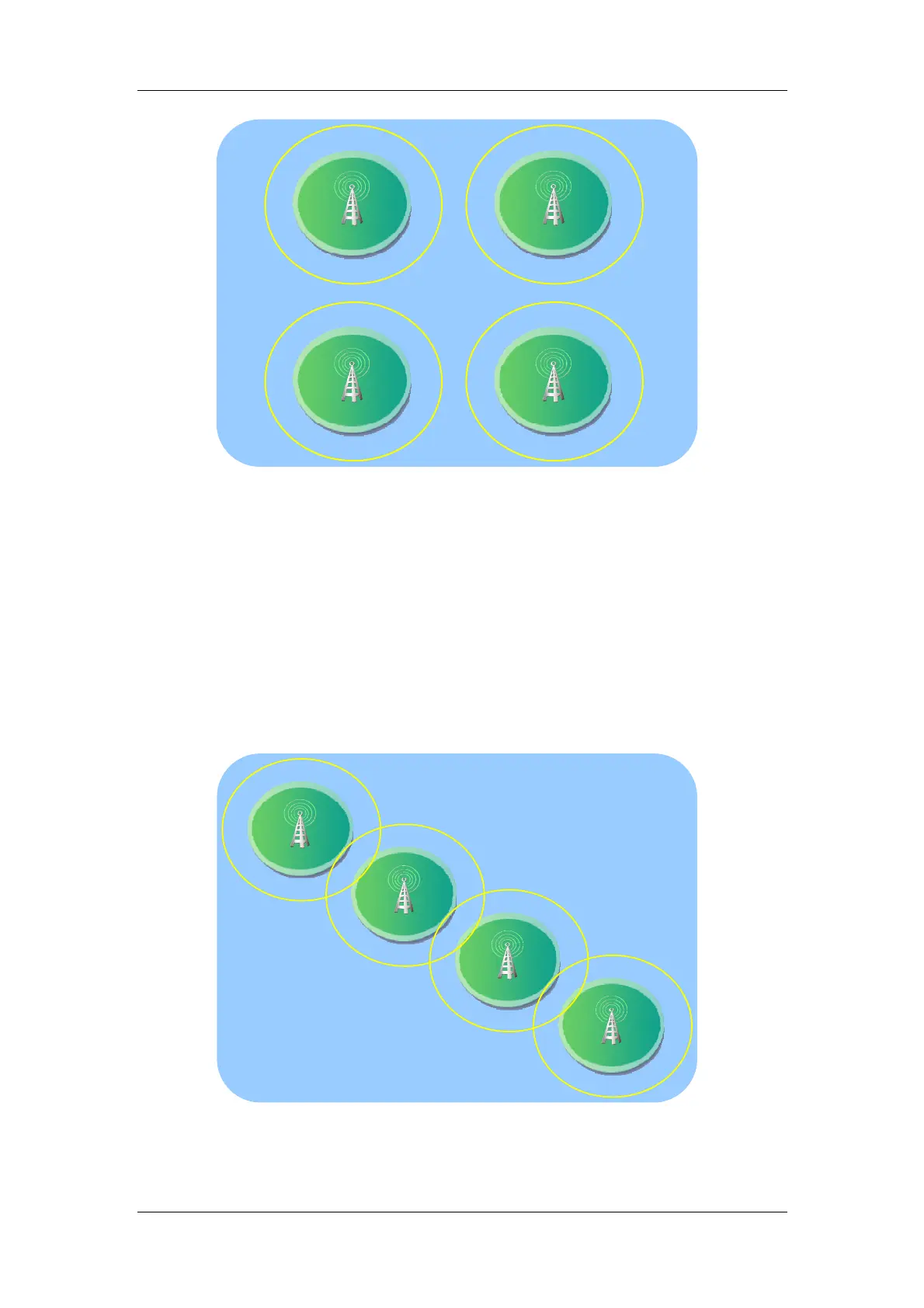

Figure 2.7.2.2-1：Non-overlapping Coverage
2.7.2.3 Linear coverage
This scheme is designed for communication services along the road, railway, river or
coastline. It involves multiple sites and overlapping coverage is present on a small
scale. The overlapped areas share frequencies, but different color codes are
required for roaming service. With this scheme, a user may be within the coverage
of one or two sites at the same time, and it takes about an hour to move from one
site to another.
TX=F1
RX=F2
CC=4
TX=F3
RX=F4
CC=3
TX=F1
RX=F2
CC=2
TX=F5
RX=F6
CC=1
Figure 2.7.2.3-1：Linear Coverage
