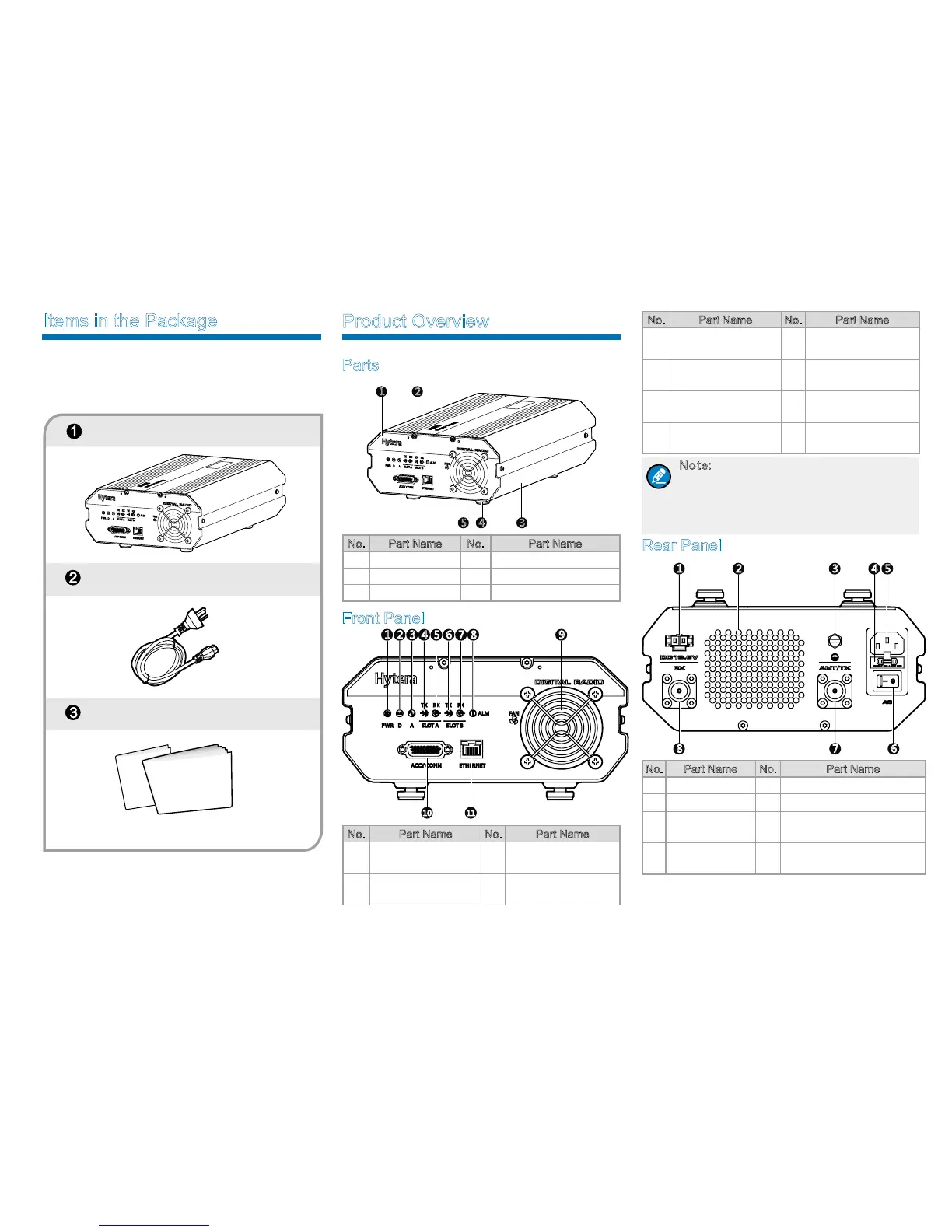

Items in the Package
Please unpack carefully and check that all items listed
below are received. If any item is missing or damaged,
please contact your dealer.
Repeater
AC Power Cord
Documentation Kit
Owner's Manual
Safety
Product Overview
Parts
1
2
345
No. Part Name No. Part Name
1 Front Panel 4 Foot Pad
2 Upper Cover 5 Fan Mesh Enclosure
3 Chassis / /
Front Panel
6 7 8
1
2
4 5
3
9
10 11
No. Part Name No. Part Name
1 Power LED Indicator 7
Slot B RX LED
Indicator
2
Digital Mode LED
Indicator
8 Alarm LED Indicator
No. Part Name No. Part Name
3
Analog Mode LED
Indicator
9 Fan Inlet
4
Slot A TX LED
Indicator
10 Accessory Connector
5
Slot A RX LED
Indicator
11 Ethernet Interface
6
Slot B TX LED
Indicator
/ /
Note: If the repeater is manufactured
without internal duplexer, then part 8 will
be an external duplexer RX port; if it is
manufactured with internal duplexer, then
there will be no connection inside part 8.
Rear Panel
1
2 3
4 5
6
78
No. Part Name No. Part Name
1 DC Power Inlet 5 AC Power Inlet
2 Fan Outlet 6 AC Power Switch
3 Ground Terminal 7
ANT/TX Antenna Connector
(N-type Female)
4 Fuse Box 8
R X An t e nna C o n nect o r
(N-type Female)
To Next Page
