Hytorc Stealth 4 - Hydraulic limited-clearance wrench

1 Hose connection (male coupling) (supply
hose) (A)
9 Compressed-air inlet
2 Hose connection (female coupling) (re-
turn hose) (B)
10 Air shut-off valve
3 Oil filling point 11 Water filter / Air pressure regulator
4 Oil drain point 12 Air lubricator
5 Oil level sight glass 13 Filter cap
6 Pressure gauge 14 Remote control
7 Pressure control valve / Wingnut 15 On/off switch
8 Pressure relief valve 16 Start button

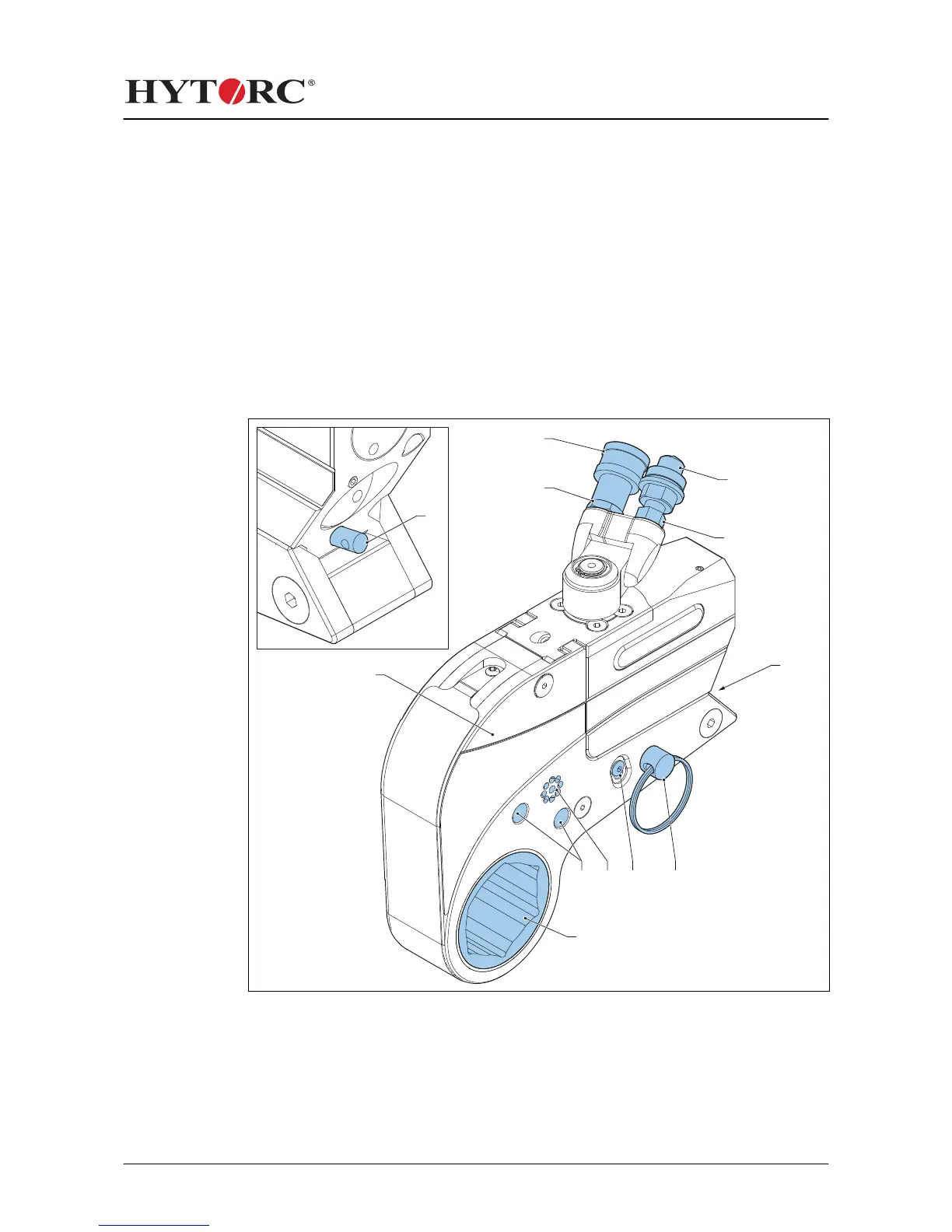

3.5 Hydraulic limited-clearance wrench


$
5




 

1
Hose connection (male coupling) (supply
hose) (A)
6 Disengagement button for reaction pawl
2 Hose connection (female coupling) (re-
turn hose) (R)
7 Mounting point for safety handle
3 Ratchet link (interchangeable) 8 Mounting holes for holding plate
4 Link release button 9 Hex drive or Hytorc nut drive
5 Link pin
Description
