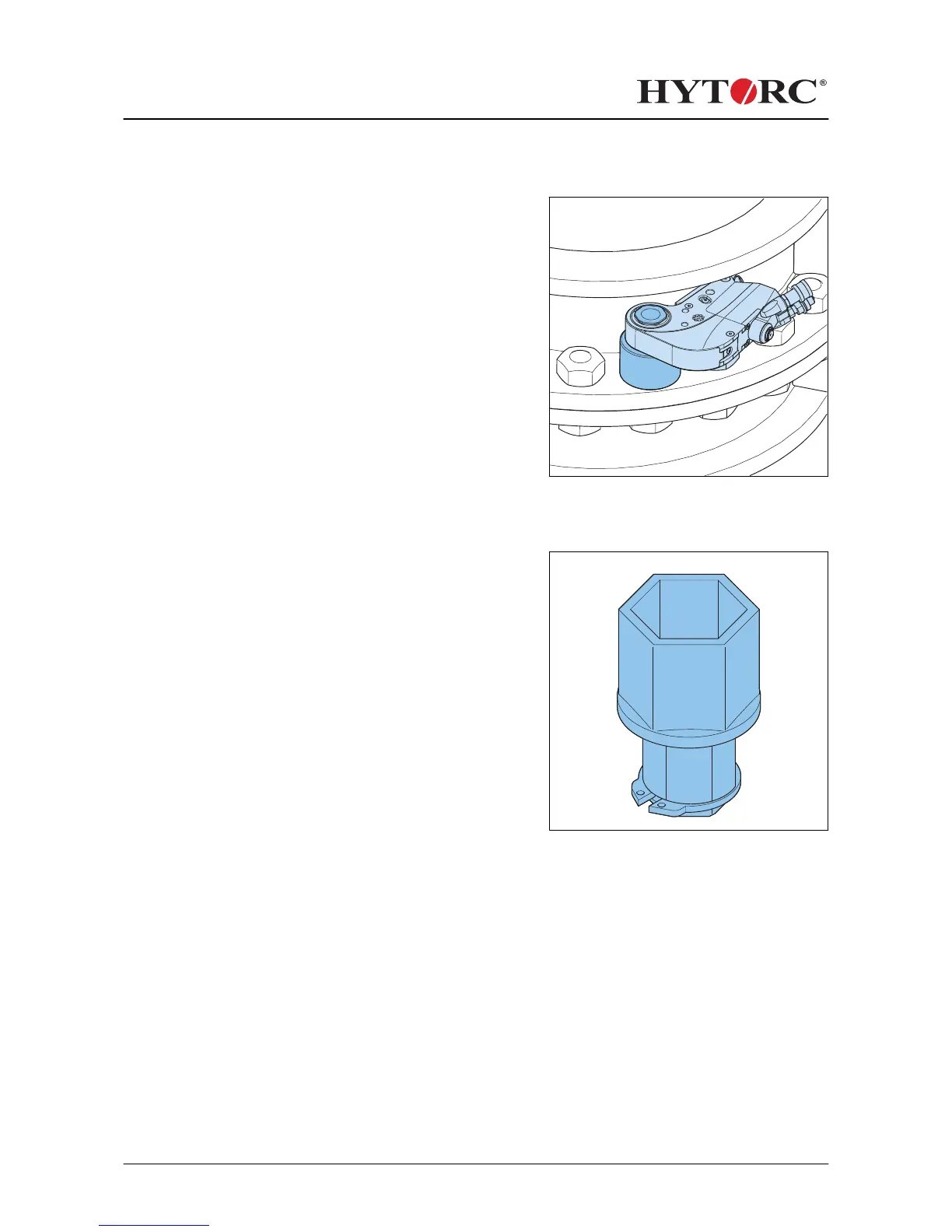

3.6.5
Stacking nuthead
Procedure
1.
Place the adapter in the tool.
2.
Use the circlip ring to fasten the
adapter.
3.
Place the adapter over the nut as
far as possible.
3.6.6
Male hex drive
Procedure
1.
Place the adapter in the tool.
2.
Use the circlip ring to fasten the
adapter.
3.
Place the hex drive into the nut as
far as possible.
Description
18
37 - 001 -
17
19
Table of Contents
Default Chapter
3
Table of Contents
3
1 About the Document
6
Purpose of the Document
6
How to Work with the Document
6
Languages
6
Illustrations
6
Safety Symbols in the Document
6
Related Documents
7
Revision History
7
Contact Information
7
2 Safety
8
General Safety Instructions
8
Personnel
8
Work Area
8
Equipment
8
Additional Safety Instructions
9
Electric and Pneumatic Pump Units
9
Electric Pump Units
9
Hydraulic Hoses
9
Reaction Arms
10
Sockets
10
Safety Symbols on the Tool
11
Qualified Personnel
11
Liability
11
3 Description
12
Intended Use
12
Overview
12
Electric Pump Unit
13
LED Indicators (Electric Pump Unit)
13
Pneumatic Pump Unit
14
Hydraulic Limited-Clearance Wrench
15
Accessories
16
Safety Handle
16
Boltsafe Load Tester
16
Torque and Angle Sensor
16
Insert
17
Stacking Nuthead
18
Male Hex Drive
18
4 Installation
19
Hydraulic Hoses
19
Hydraulic Hose Connections
19
Connecting the Hydraulic Hoses
20
Disconnecting the Hydraulic Hoses
21
Power Supply (Electric Pump Units)
22
Connecting the Power Supply (230V)
22
Connecting the Power Supply (400V)
22
Air Supply (Pneumatic Pump Units)
23
Explosion Protection (Pneumatic Pump Units)
23
5 Reaction Arms
24
Reaction Pad
24
Alco Reaction Arm
24
Interconnect Reaction Arm
25
Holding Plate
25
6 Operation
26
Inspections before Use
26
Remote Control
26
Electric Pump Unit
26
Pneumatic Pump Unit
27
Disengagement Button for Reaction Pawl
27
Torque
28
Pressure/Torque Chart
28
Setting the Torque
28
Replacing the Ratchet Link
29
Determining the Direction of Rotation
30
Tightening and Loosening a Bolted Flange Connection
30
Tightening a Bolted Flange Connection
31
Loosening a Bolted Flange Connection
31
Automatic Shut-Off System
32
Thermal Protection
32
7 Maintenance
33
Preventive Maintenance
33
Maintenance by HYTORC
33
8 Storage
34
Storing the Cables
34
9 Troubleshooting
35
Tools
35
Pump Units
36
General
36
Electric Pump Units
36
Pneumatic Pump Units
37
10 Technical Data
38
Stealth 2
38
Stealth 4
38
Stealth 8
39
Stealth 14
39
Stealth 22
39
Stealth 36
39
Swivel Rotation
40
Physical Conditions
40
Maximum Torque Values (Stacking Nutheads and Male Hex Drives)
40
Declaration of Conformity
43
Parts List
44
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Hytorc Stealth 4 and is the answer not in the manual?
Ask a question
