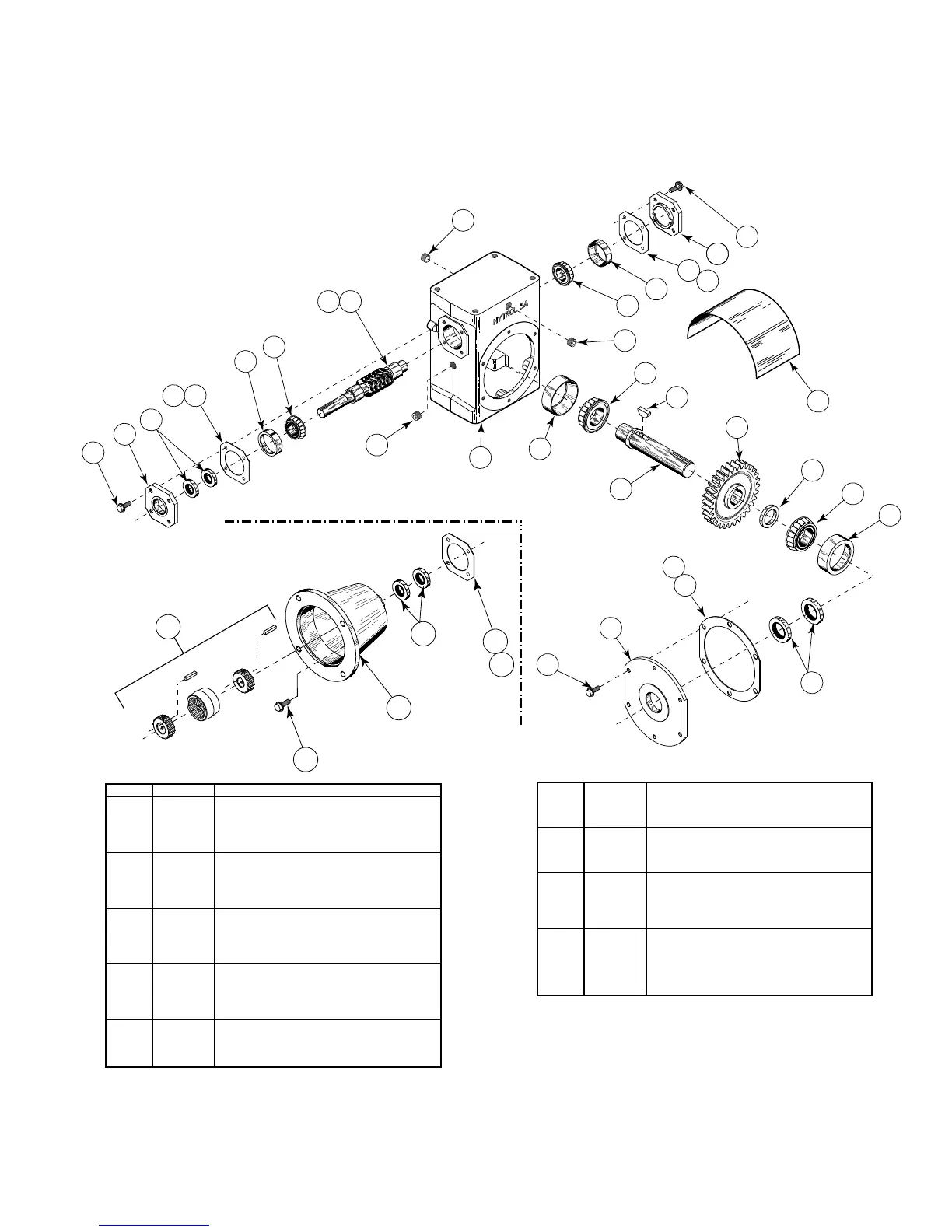

• Model 5A and 5AC Parts Drawing & List
Dibujo y Lista de Partes del Modelo 5A y 5AC
*For models shipped prior to April 2005, please contact factory.
*Para modelos embarcados antes de abril de 2005, por favor
contáctenos
Ref. No. Part No. Description
1
2
3
4
---
R-00161
R-00025
R-00165
---
R-00167
Speed Reducer Housing - 5A & 5AC
Worm Gear (Specify Ratio)
Worm Shaft - V-Belt Drive (Specify Ratio)
Output Shaft
5A & 5AC
---
---
5
6
7
R-00168
R-00169
R-00162
R-00148
R-00149
5A & 5AC - Double Sprocket Drive
5A & 5AC - Timing Belt Drive
Front Cover
Side Cover
Side Cover (Input) V-Belt Drive Only
8
9
10
11
12
012.104
012.105
012.106
012.107
051.115
Bearing Cone - 1.250 in. I.D.
Bearing Cup - 2.89593 in. O.D.
Bearing Cone - .84375 in. I.D.
Bearing Cup - 1.96875 in. O.D.
Spacer - 1.260 in I.D. x 1.75 in. O.D. x .267 in. Long
13
14
15
16
---
R-00154
015.1015
015.1035
---
052.115
Reducer Splash Shield
Seal - Double Lip, 3/4 in Shaft x 1.375 in. Bore
Seal - Double Lip, 1-1/4 in Shaft x 2 in. Bore
Gasket - Front Cover
.004 in Thick
---
---
---
17
052.1153
052.116
052.1163
052.1192
.010 in Thick
.016 in Thick
.031 in Thick
Gasket - Side Cover - .016 in Thick
Important!
Manufacturing advancements necessitates changes in parts.
Always contact the Integration Partner when replacement parts are
needed. Some replacement parts may effect other parts required.
Please have the conveyor serial number when ordering.
¡Importante!
Los avances en fabricación demandan cambios de partes.
Contacte siempre al Integrador cuando necesite refaccionamiento.
Algunas refacciones pueden afectar las otras partes requeridas. Por
favor tenga el número de serie del transportador cuando realice sus
órdenes.
18
19
20
21
---
095.100
049.539
092.0372
Gasket Sealing Paste (Not Shown, Available locally)
Gear Reducer Oil (Not Shown)
5/16-18 x 7/8 in. Lg Flange Lockbolt
3/8 in. NPT Steel Pipe Plug w/C’sunk Hex
22
23
24*
25*
090.2012
R-00122
R-00166
R-00146
Shaft Key - #810 Woodruff
Vent Plug Kit - 3/8 in. NPT (Not Shown)
Worm Shaft - C-Face Drive (Specify Ratio)
C-Face Motor Adapter - 56,143/145T Frames
26*
---
---
27
28
---
B-09179-B
B-09179-C
R-00163
R-00164
Flexible Coupling Kit - Motor to Reducer
5/8 in. to 3/4 in. (1/2 thru 1 HP)
3/4 in. to 7/8 in. (2 HP)
5A Reducer - Complete (Specify Ratio and Hand)
5AC Reducer - Complete (Specify Ratio and Hand)
29
30
31
32
R-00170
R-00171
R-00172
R-00173
5A Reducer - Complete, Timing Belt Drive
5AC Reducer - Complete. Timing Belt Drive
5A Reducer - Complete, Double Sprocket Drive
(Specify Ratio and Hand)
5AC Reducer - Complete, Double Sprocket Drive
(Specify Ratio and Hand)
* FOR 5AC REDUCER ONLY
7
