2-13

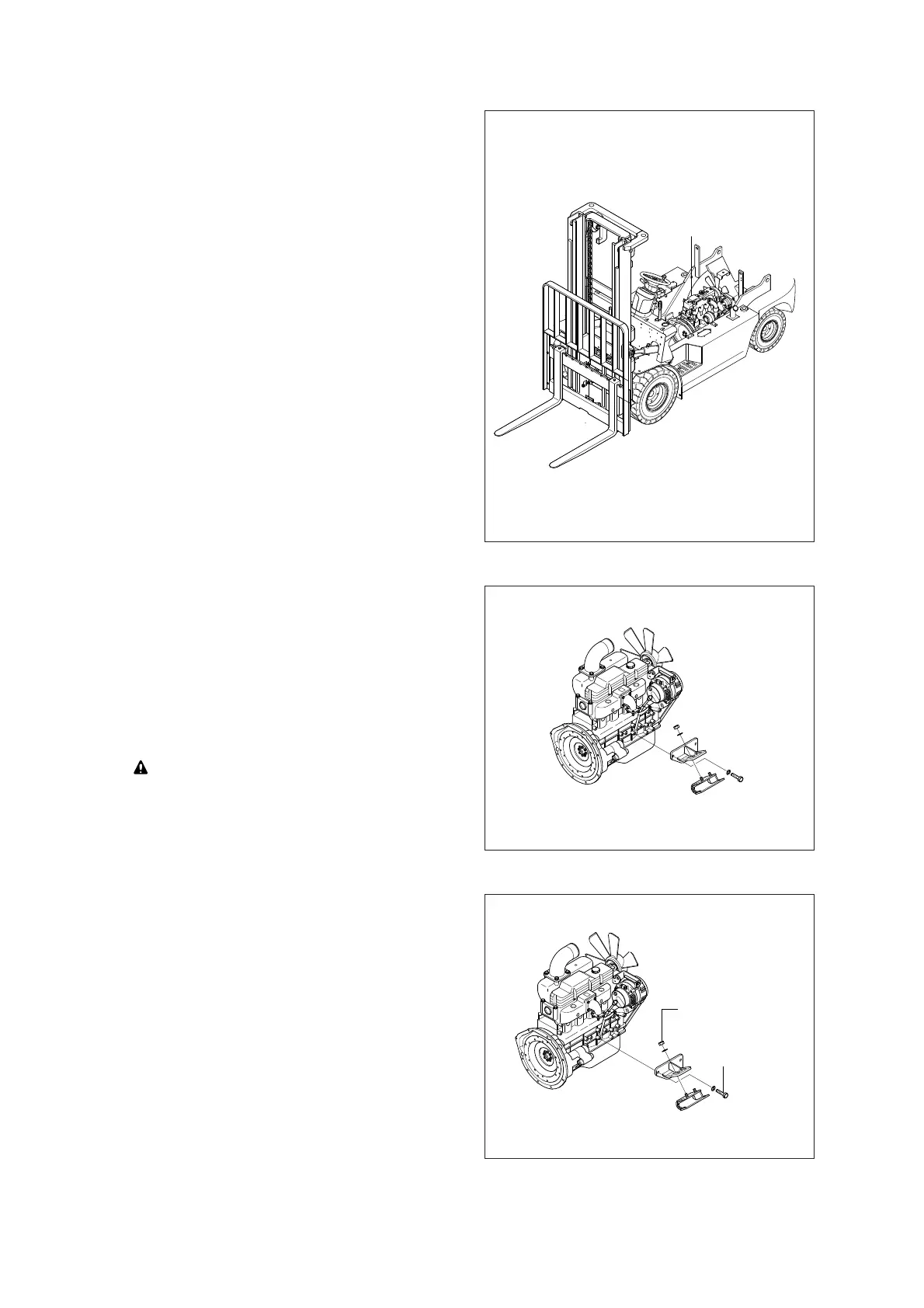

Remove the torque converter housing
cover, mounting bolts installed to flywheel
housing.
For details, see page 2-10.
Engine accessory
Engine accessory
Remove all wiring harnesses, cables and
hoses around the engine, dashboard and
frame.
Wiring harness to alternator and starter.
Wiring harness for oil pressure and
engine water temperature gauges.
Cables for meters, buttons and accelerator
pedal.
Hoses to fuel tank and air cleaner.
Exhaust pipe.
Radiator hose
Radiator hose
Open the drain valve of the radiator and
drain the cooling water, then remove the
radiator hose.
(2)
(2)
(3)
(3)
(4)
(4)
①
②
③
④
⑤
Engine
20DF7TRE23
22D9TRE24K
Mounting bolt
Mounting bolt
Attach a crane to the engine hook and
raise, then remove mounting bolts. Raise
the engine slightly, slide towards the
radiator, then lift up.
When sliding the engine, be careful of the
collision engine and radiator.
When raising the engine, only must use
When raising the engine, only must use
appropriate lifting appliances which
appropriate lifting appliances which
should be had sufficient capacity for
should be had sufficient capacity for
lifting of the engine.
lifting of the engine.
(5)
(5)
※
INSTALLATION
INSTALLATION
Installation is the reverse order of removal,
but be careful of the following points.
Tighten the engine mounting bolts and
nuts.
Tighten the engine mounting bracket bolts.
Do not remove the bolts unless necessary.
Loctite is coated over the threads of bolt.
So, once the bolts were removed, coat
them with loctite (#243) when installing.
Before installing the bolts, loctite in the
holes should be removed by a tap.
2)
2)
(1)
(2)
※
※
22D9TRE25K
Engine
7.8~11.6kgf m
.
7.8~11.6kgf m
.
Engine
7.8~11.6 kgf·m
(56.4~83.9 lbf·ft )
5.9~8.9 kgf·m
(42.7~64.3 lbf·ft )
