Hyundai 20DT-7 - Page 37

2-12

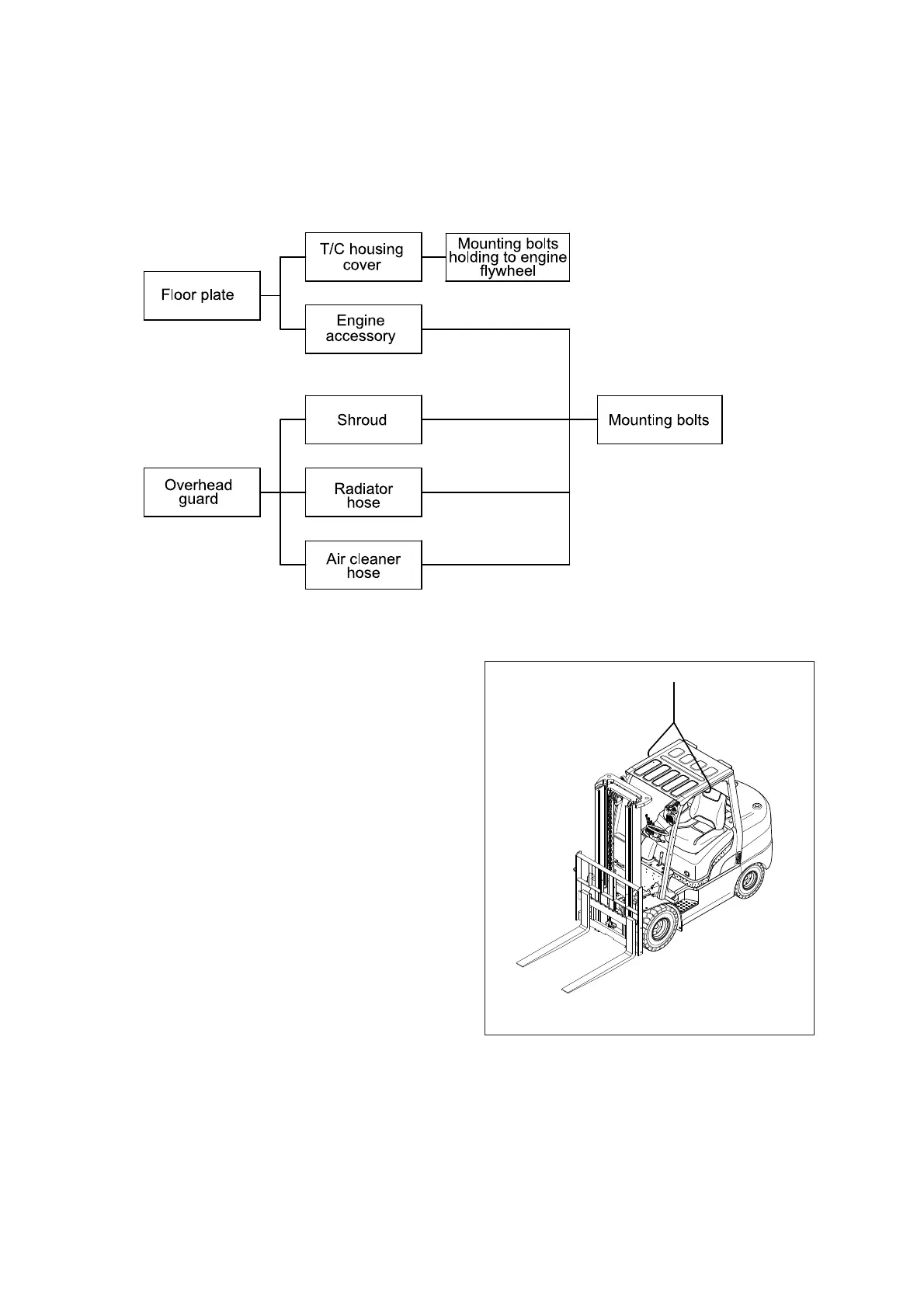

Overhead guard
Overhead guard
Remove the wiring for rear combination
lamp, working lamp, head lamp and
flasher lamp on the stay of the overhead
guard and then raise it together with the
bonnet.
(1)
(1)
D503RE25
20D7RE22
3. ENGINE
3. ENGINE
Lever the torque converter, transmission and front axle inside the frame, then remove the engine
assembly.
REMOVAL
REMOVAL
1)
1)
