3-3

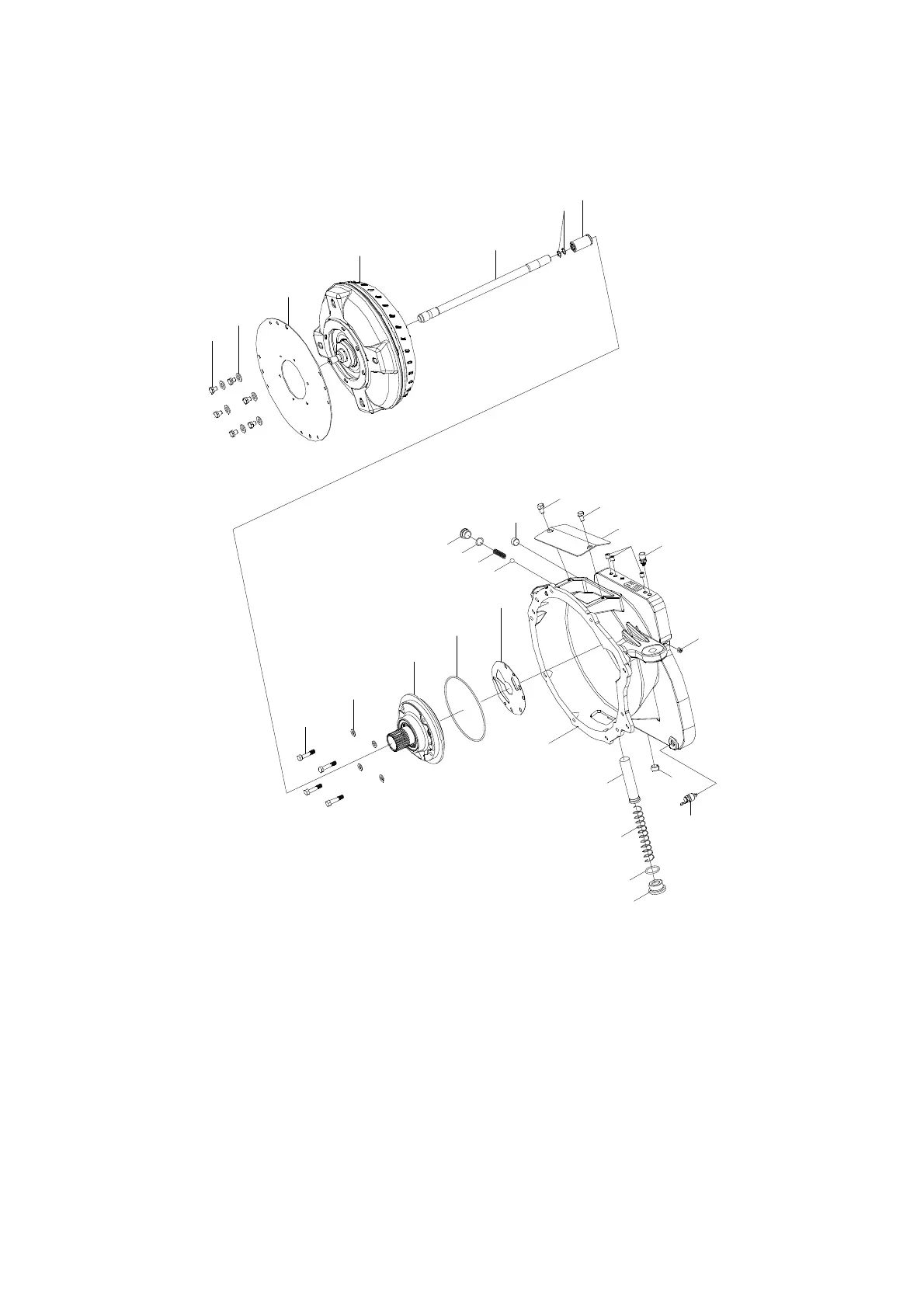

2. TORQUE CONVERTER
2. TORQUE CONVERTER
STRUCTURE
STRUCTURE
1)
1)
4
3
2
1
6
5
7
10
12
28
9
8
20
19
18
16
17
14
14
15
11
21
11
13
24
25
26
27
22
23
15L7APT03
11 Plug
12 O-ring
13 Torque converter housing
14 Hexagon bolt
15 Torque converter cover
16 O-ring
17 Plug
18 Spring
19 Ball
20 Plug
1 Hexagon bolt
2 Plain washer
3 Flexible plate
4 Torque converter assembly
5 Shaft
6 Snap ring
7 Gear
8 Hexagon bolt
9 Copper washer
10 Charging pump assembly
21 Air breather
22 Magnetic plug
23 Temperature sensor
24 Inner oil strainer
25 Oil strainer spring
26 O-ring
27 Oil strainer plug
28 Gasket
