3-4
OPERATION
The torque converter is connected with a flywheel by a flexible plate, engine output is delivered
from the flywheel to the flexible plate.
The exterior of the torque converter is protected by the torque converter housing.
The torque converter housing forms the oil path for the oil pump, it includes the oil strainer filtering
sucked oil through this oil path and the oil level gauge measuring oil level of the transmission
inside.
2)

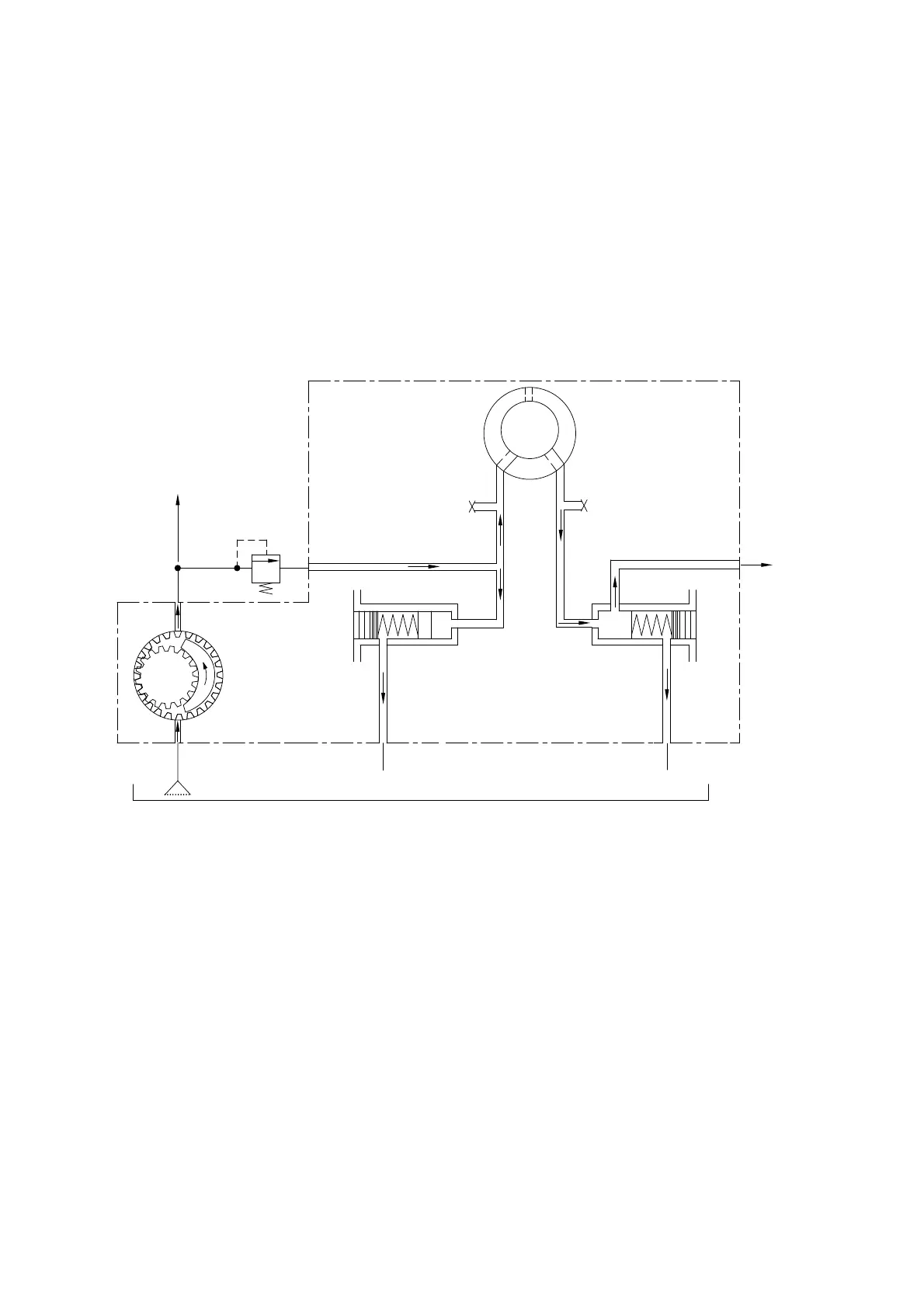

TORQUE CONVERTER HYDRAULIC CIRCUIT
TORQUE CONVERTER HYDRAULIC CIRCUIT
3)
Main relief valve
B
To control valve
Gear pump
Torque converter assy
Inlet port
Inlet pressure
detector port
Outlet port
Outlet pressure
detector port
C
F
T
P
S
G
I
To cooler
Strainer
Drain
Drain
A
D
H
Torque
converter
20D7PT04
