3. TRANSMISSION
3. TRANSMISSION

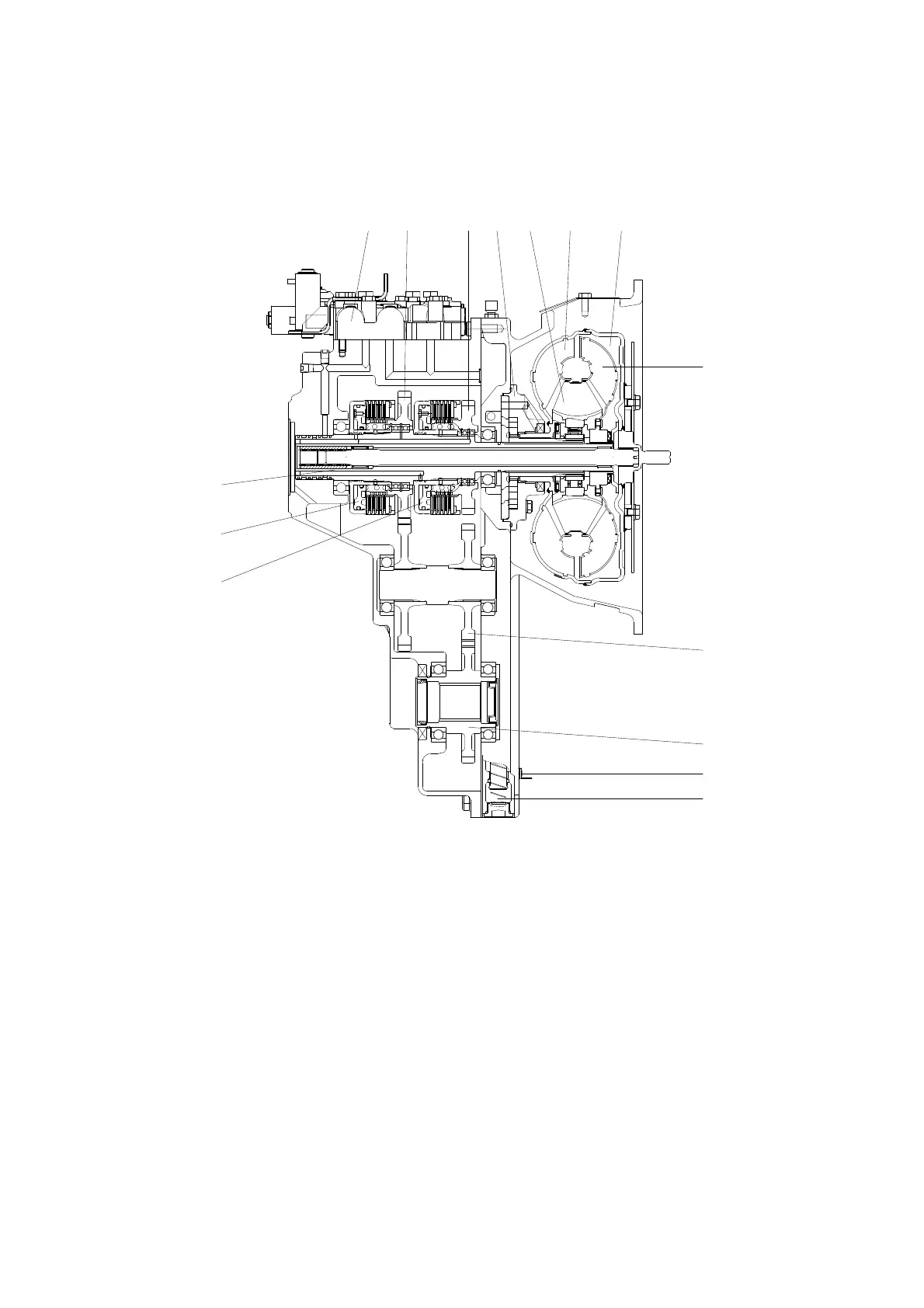

STRUCTURE
STRUCTURE
1)
1)
12
3
456
12
10
11
8
15
14
13
7
9
15L7APT28
1 Control valve
2 Torque converter
3 Turbine wheel
4 Impeller wheel
5 Stator wheel
6 Forward clutch gear
7 Oil pump
8 Reverse clutch gear
9 Output gear
10 Temperature sensor
11 Oil strainer
12 Idle gear
13 Forward clutch pack
14 Input shaft
15 Reverse clutch pack
