3-8

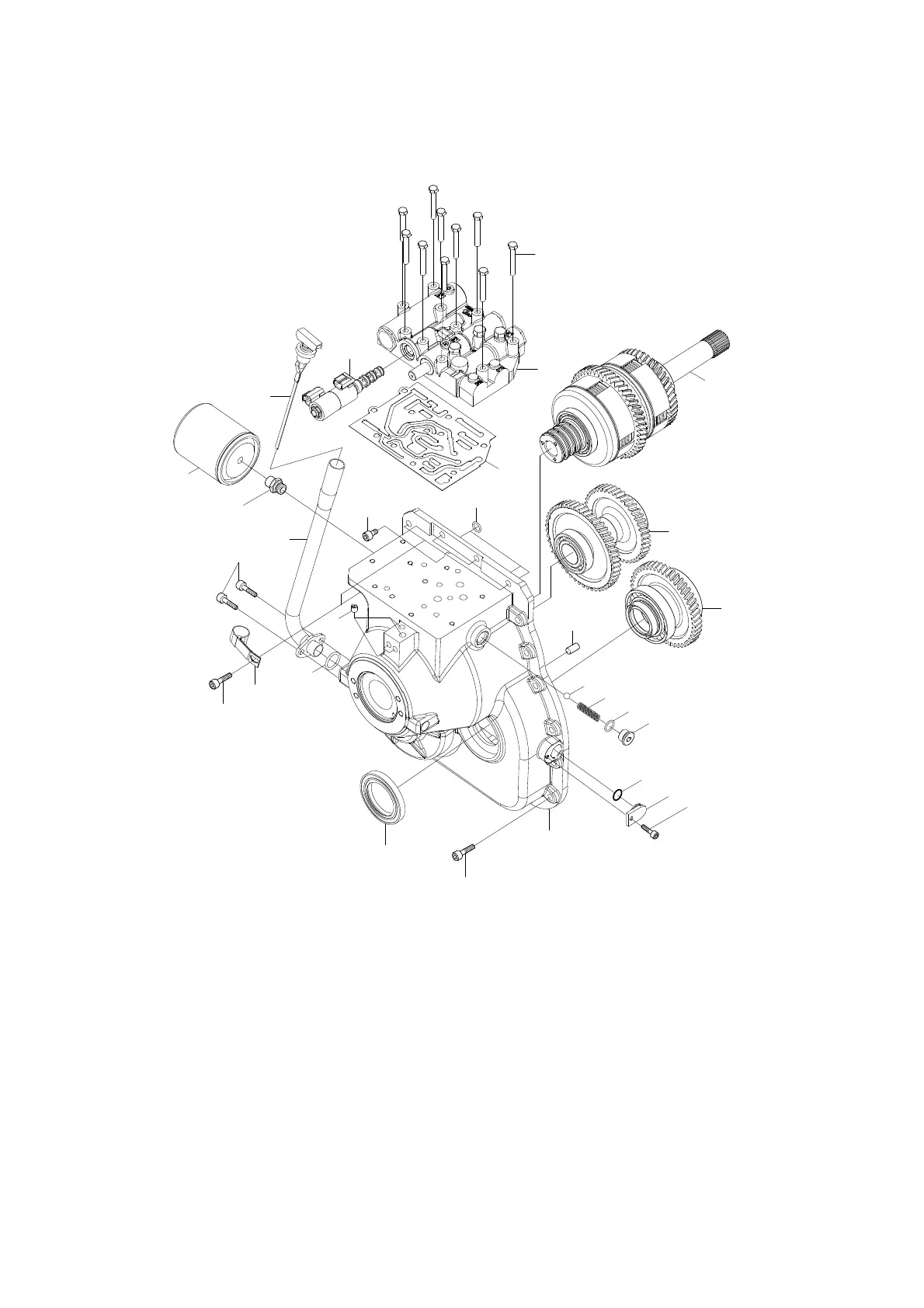

TRANSMISSION CASE AND CONTROL VALVE
TRANSMISSION CASE AND CONTROL VALVE
Structure
Structure
17
20
13
18
19
22
23
24
7
6
5
4
26
30
31
32
1
16
3
21
25
15
14
12
9
10
11
8
27
20DF7TPT07
5)
5)
1 Transmission case
3 Oil seal
4 Ball
5 Spring
6 O-ring
7 Plug
8 Plug
9 Bolt
10 Transmission oil filter
11 Pipe
12 Socket bolt
13 Oil gauge
14 Clamp
15 Socket bolt
16 Flange bolt
17 Control valve
18 Solenoid valve
19 Gasket
20 Hexagon bolt
21 O-ring
(1)
(1)
22 Cylinder gear
23 Idle gear
24 Output gear
25 Socket bolt
26 Lock pin
27 O-ring
30 O-ring
31 Plug
32 Socket bolt
