Hyundai 20DT-7 - Page 55

3-13

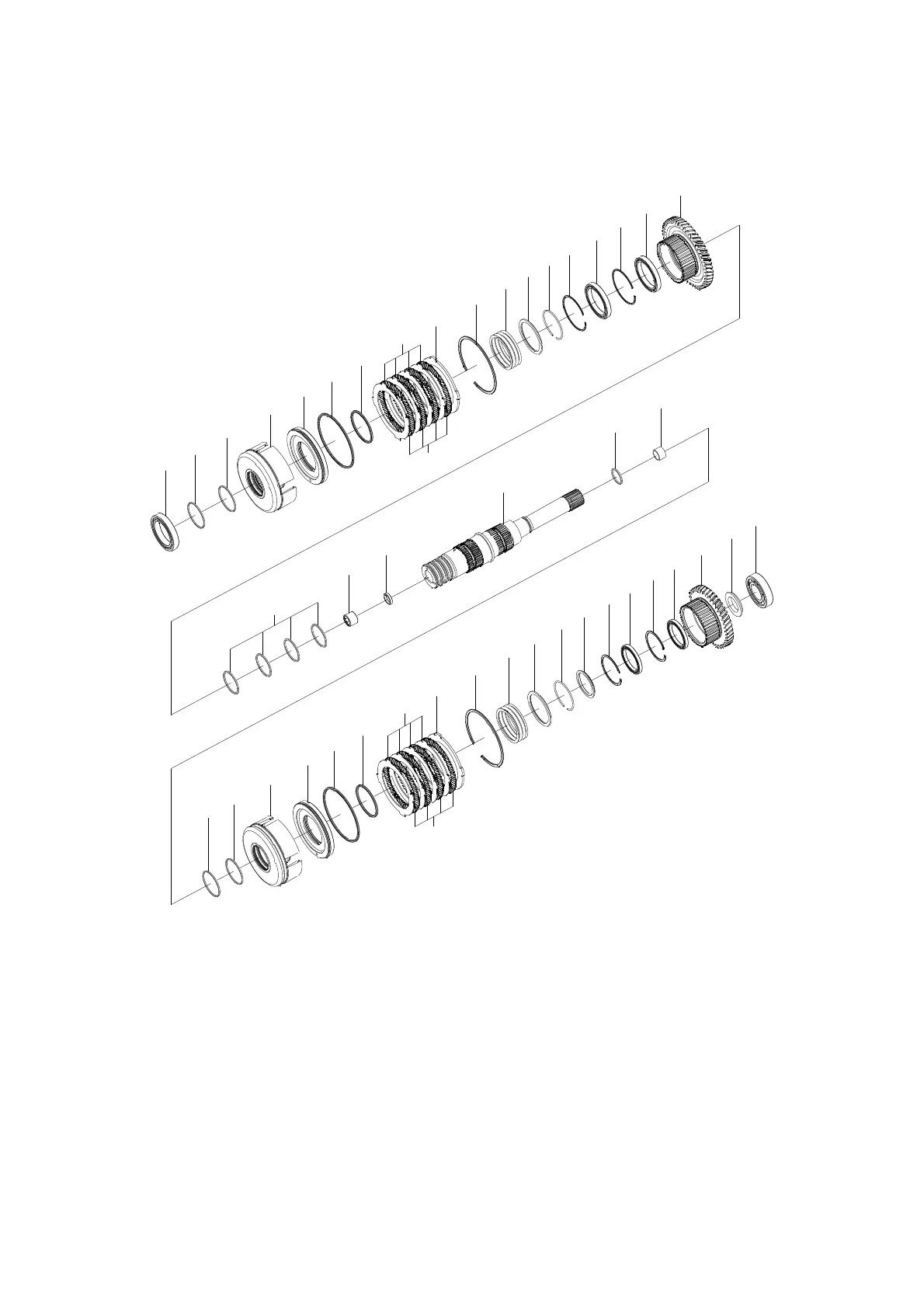

Structure
Structure
(2)
(2)
7
8
9
8
9
21
20
19
18
17
15
14
13
12
10
11
11
22
16
1
5
6
4
3
2
23
12
13
14
15
17
16
18
19
20
21
24
11
11
25
26
25
26
27
28
29
15L7APT11
1 Shaft
2 Seal ring
3 Needle bearing
4 Ring
5 Seal ring
6 Bushing
7 Reverse clutch gear
8 Ball bearing
9 Snap ring
10 Clutch drum
11 Seal ring
12 Piston
13 Quad ring
14 Quad ring
15 Plate
16 Friction plate
17 Plate
18 Snap ring
19 Spring
20 Back plate
21 Wire ring
22 Plate
23 Clutch drum
24 Spacer
25 Snap ring
26 Ball bearing
27 Forward clutch gear
28 Spacer
29 Ball bearing
