OUTPUT GEAR
OUTPUT GEAR
Operation
Operation
The output gear is engaging the forward clutch gear and reverse clutch gear together.
If a driver selects forward, the forward clutch gets plugging, the forward clutch gear revolves and
the power of forward clutch gear is delivered to output gear.
If a driver selects reverse, the reverse clutch gets plugging, the reverse clutch gear revolves and
the power of reverse clutch gear is delivered to output gear.
(1)
(1)
1
2
3
4
5
2
15L7APT14

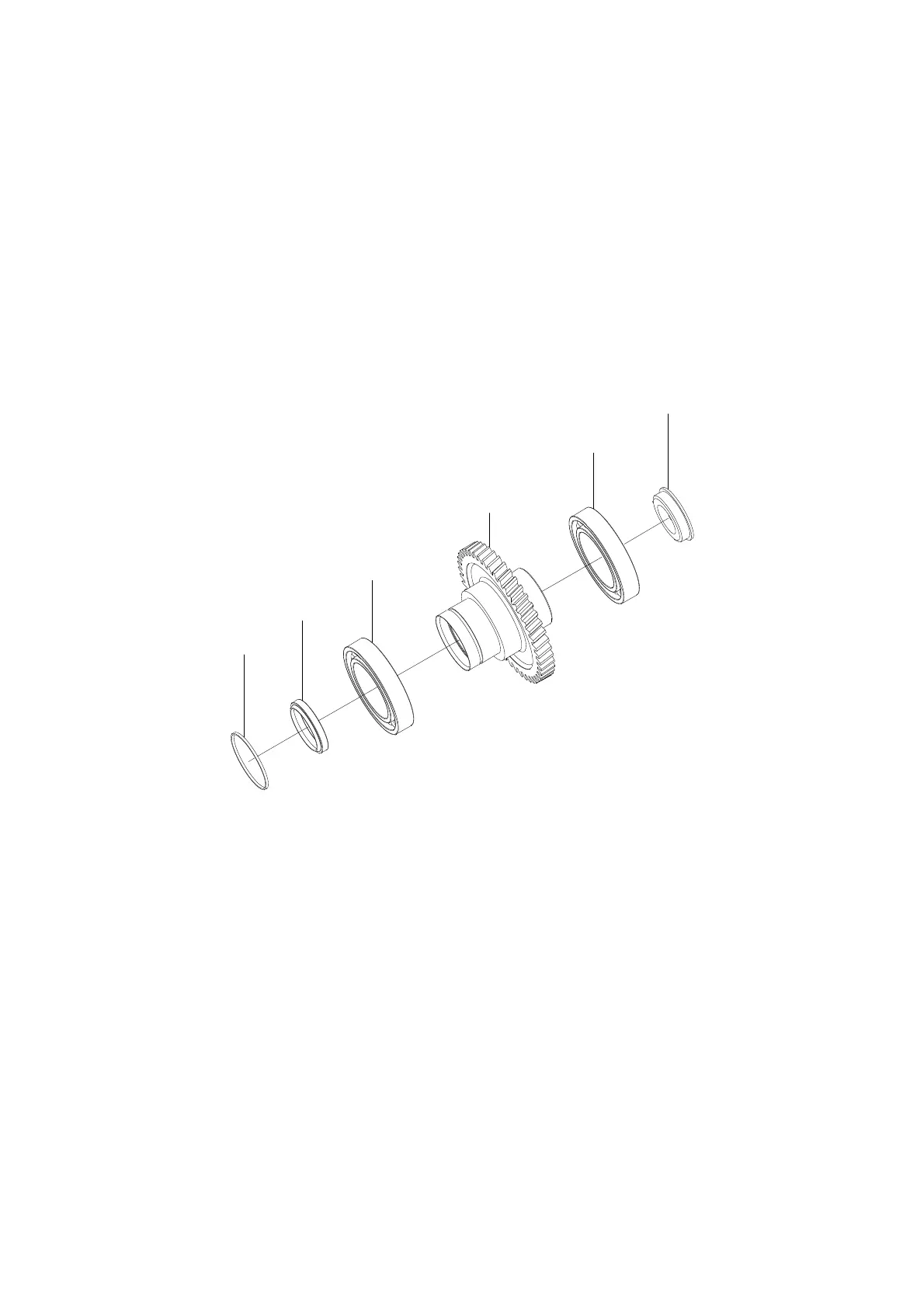

1 Output gear
2 Ball bearing
3 Cover
4 Oil seal
5 Seal ring
