3-16
CARRIER ASSEMBLY
Operation
Carrier sub assy includes differential device and parking brake.
The pinion shaft is supported by the taper roller bearing in the carrier case and the bolt at the end
of pinion shaft and transfers the power which is delivered from the drive shaft assy to the ring
gear assembled from bolts at a differential device.
This power makes the differential device run.
Since the differential device is connected with an axle shaft and a spindle, the power transferred
to differential device is delivered to final drive through the axle shaft.

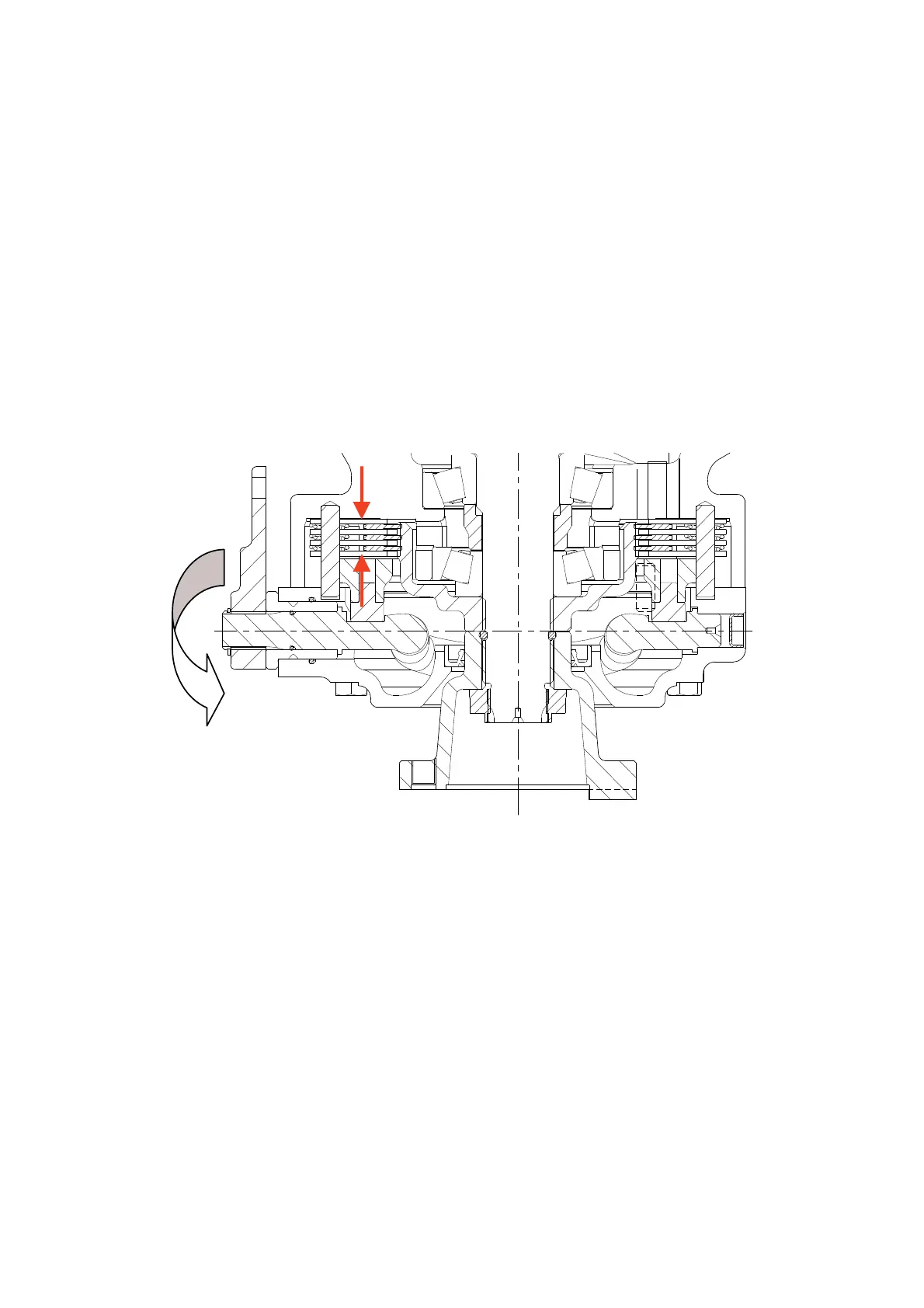

Parking brake, like as traveling brake system is consists of several friction plate functions braking
by sticking to each friction plate when pull parking hand lever.
(1)
3)
15L7APT21
