Owner's Guide: SS5 Stepper Servo Motor Driver
Page 9
TECHNICAL DOCUMENT
5. Switch Selection

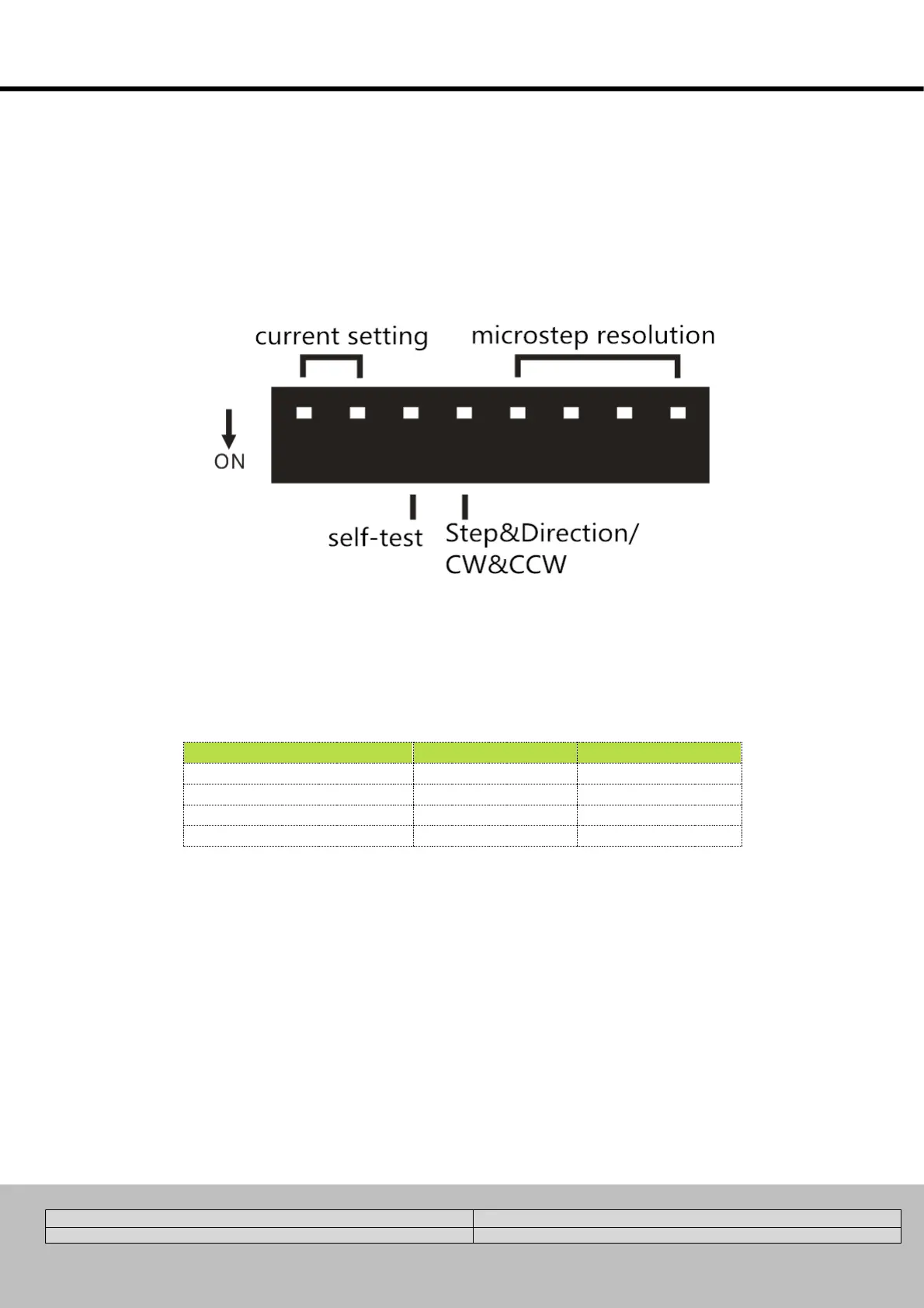

The SS5 drive uses an 8-bit DIP switch to set the subdivision accuracy, dynamic current, self-test function and pulse mode selection. The detailed
description is as follows:
Running Current
After the drive is matched with the motor model, the running current dialing can set the actual output current to be 40%~100% of the rated current
of the motor.
Rated current
SW1
SW2
40%
ON
ON
60%
OFF
ON
80%
ON
OFF
100%
OFF
OFF
