MODE 8 - 45 channel 16 bit
High resolution colour control over each individual
cell with a strobe and a high resolution master
intensity having overall control over all 7 cells.
ch1 - master intensity high byte all cells
ch2 - master intensity low byte all cells
ch3 – strobe all cells
ch4 - red high byte cell 1
ch5 - red low byte cell 1
ch6 - green high byte cell 1
ch7 - green low byte cell 1
ch8 - blue high byte cell 1
ch9 - blue low byte cell 1
ch10 - red high byte cell 2
ch11 - red low byte cell 2
ch12 - green high byte cell 2
ch13 - green low byte cell 2
ch14 - blue high byte cell 2
ch15 - blue low byte cell 2
ch16 - red high byte cell 3
ch17 - red low byte cell 3
ch18 - green high byte cell 3
ch19 - green low byte cell 3
ch20 - blue high byte cell 3
ch21 - blue low byte cell 3
ch22 - red high byte cell 4
ch23 - red low byte cell 4
ch24 - green high byte cell 4
ch25 - green low byte cell 4
ch26 - blue high byte cell 4
ch27 - blue low byte cell 4
ch28 - red high byte cell 5
ch29 - red low byte cell 5
ch30 - green high byte cell 5
ch31 - green low byte cell 5
ch32 - blue high byte cell 5
ch33 - blue low byte cell 5
ch34 - red high byte cell 6
ch35 - red low byte cell 6
ch36 - green high byte cell 6
ch37 - green low byte cell 6
ch38 - blue high byte cell 6
ch39 - blue low byte cell 6
ch40 - red high byte cell 7
ch41 - red low byte cell 7
ch42 - green high byte cell 7
ch43 - green low byte cell 7
ch44 - blue high byte cell 7
ch45 - blue low byte cell 7

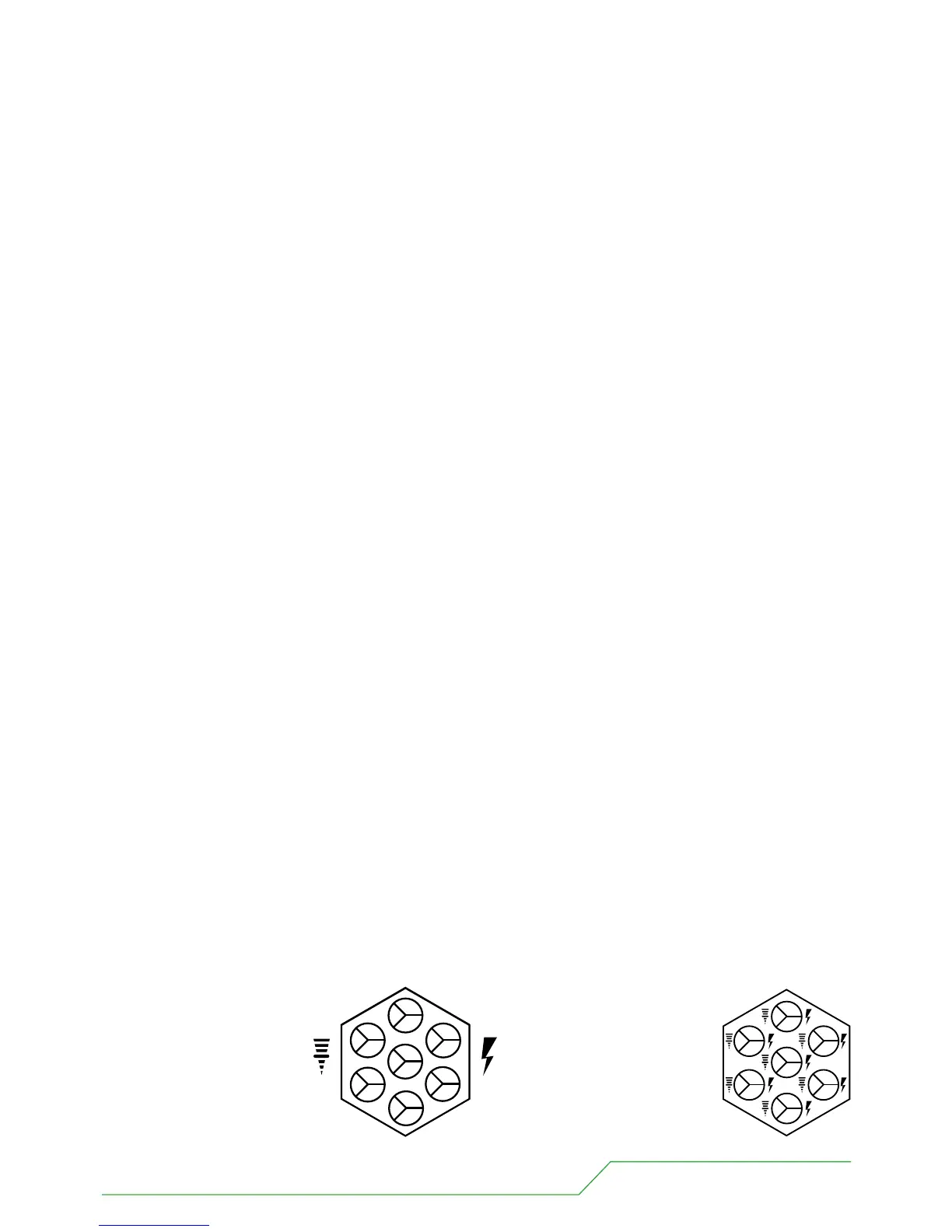

Mode 8
45 channel 16 bit
R
G
B
R
G
B
R
G
B
R
G
B
R
G
B
R
G
B
R
G
B
MODE 9 - 35 channel 8 bit
Ideal for control over all aspects of programming
where dmx line space may be a consideration.
For each cell there is individual control over master
intensity, strobe and red green blue colour mixing.
(most useful when each cell is patched
individually -5ch).
ch1 - master intensity cell 1
ch2 – strobe cell 1
ch3 - red cell 1
ch4 - green cell 1
ch5 - blue cell 1
ch6 - master intensity cell 2
ch7 – strobe cell 2
ch8 - red cell 2
ch9 - green cell 2
ch10 - blue cell 2
ch11 - master intensity cell 3
ch12 – strobe cell 3
ch13 - red cell 3
ch14 - green cell 3
ch15 - blue cell 3
ch16 - master intensity cell 4
ch17 – strobe cell 4
ch18 - red cell 4
ch19 - green cell 4
ch20 - blue cell 4
ch21 - master intensity cell 5
ch22 – strobe cell 5
ch23 - red cell 5
ch24 - green cell 5
ch25 - blue cell 5
ch26 - master intensity cell 6
ch27 – strobe cell 6
ch28 - red cell 6
ch29 - green cell 6
ch30 - blue cell 6
ch31 - master intensity cell 7
ch32 – strobe cell 7
ch33 - red cell 7
ch34 - green cell 7
ch35 - blue cell 7
Mode 9
35 channel 8 bit
r
g
b
r
g
b
r
g
b
r
g
b
r
g
b
r
g
b
r
g
b
BB7 USERS MANUAL - PAGE 10
