i-Pix BB7 - MODE 6 - 42 Channel 16 Bit; MODE 7 - 23 Channel 8 Bit

MODE 6 - 42 channel 16 bit
Ideal for use with media servers, with a greater
resolution over the colours. Each cell can be
individually coloured with its own red green blue
channel. (most useful when each cell is patched
individually -6ch)
ch1 - red high byte cell 1
ch2 - red low byte cell 1
ch3 - green high byte cell 1
ch4 - green low byte cell 1
ch5 - blue high byte cell 1
ch6 - blue low byte cell 1
ch7 - red high byte cell 2
ch8 - red low byte cell 2
ch9 - green high byte cell 2
ch10 - green low byte cell 2
ch11 - blue high byte cell 2
ch12 - blue low byte cell 2
ch13 - red high byte cell 3
ch14 - red low byte cell 3
ch15 - green high byte cell 3
ch16 - green low byte cell 3
ch17 - blue high byte cell 3
ch18 - blue low byte cell 3
ch19 - red high byte cell 4
ch20 - red low byte cell 4
ch21 - green high byte cell 4
ch22 - green low byte cell 4
ch23 - blue high byte cell 4
ch24 - blue low byte cell4
ch25 - red high byte cell 5
ch26 - red low byte cell 5
ch27 - green high byte cell 5
ch28 - green low byte cell 5
ch29- blue high byte cell 5
ch30 - blue low byte cell 5
ch31- red high byte cell 6
ch32 - red low byte cell 6
ch33 - green high byte cell 6
ch34 - green low byte cell 6
ch35 - blue high byte cell 6
ch36 - blue low byte cell 6
ch37 - red high byte cell 7
ch38 - red low byte cell 7
ch39 - green high byte cell 7
ch40 - green low byte cell 7
ch41 - blue high byte cell 7
ch42 - blue low byte cell 7
MODE 7 - 23 channel 8 bit
Colour control over each individual cell with a
master intensity and strobe having overall control
over all 7 cells.
ch1 - master intensity all cells
ch2 - strobe all cells
ch3 - red cell 1
ch4 - green cell 1
ch5 - blue cell 1
ch6 - red cell 2
ch7 - green cell 2
ch8 - blue cell 2
ch9 - red cell 3
ch10 - green cell 3
ch11 - blue cell 3
ch12 - red cell 4
ch13 - green cell 4
ch14 - blue cell 4
ch15 - red cell 5
ch16 - green cell 5
ch17 - blue cell 5
ch18 - red cell 6
ch19 - green cell 6
ch20 - blue cell 6
ch21 - red cell 7
ch22 - green cell 7
ch23 - blue cell 7
R
G
B
R
G
B
R
G
B
R
G
B
R
G
B
R
G
B
R
G
B

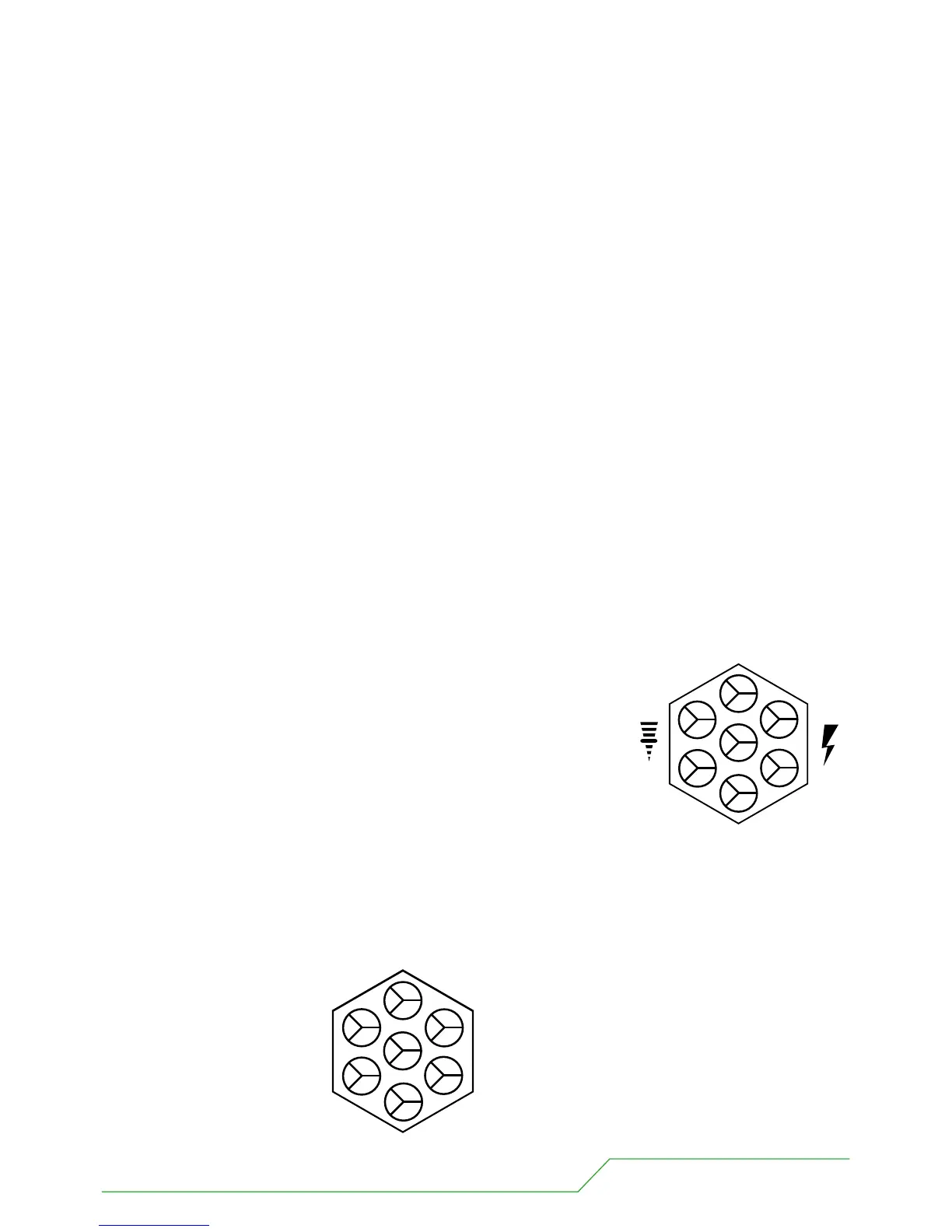

Mode 6
42 channel 16 bit
Mode 7
23 channel 8 bit
r
g
b
r
g
b
r
g
b
r
g
b
r
g
b
r
g
b
r
g
b
BB7 USERS MANUAL - PAGE 9
