i-Pix BB7 - MODE 10 - 63 Channel 16 Bit; 63 Channel 16 Bit

ch1 - master intensity high byte cell 1
ch2 - master intensity low byte cell 1
ch3 – strobe cell 1
ch4 - red high byte cell 1
ch5 - red low byte cell 1
ch6 - green high byte cell 1
ch7 - green low byte cell 1
ch8 - blue high byte cell 1
ch9 - blue low byte cell 1
ch10 - master intensity high byte cell 2
ch11 - master intensity low byte cell 2
ch12 – strobe cell 2
ch13 - red high byte cell 2
ch14 - red low byte cell 2
ch15 - green high byte cell 2
ch16 - green low byte cell 2
ch17 - blue high byte cell 2
ch18 - blue low byte cell 2
ch19 - master intensity high byte cell 3
ch20 - master intensity low byte cell 3
ch21 – strobe cell 3
ch22 - red high byte cell 3
ch23 - red low byte cell 3
ch24 - green high byte cell 3
ch25 - green low byte cell 3
ch26 - blue high byte cell 3
ch27 - blue low byte cell 3
ch28 - master intensity high byte cell 4
ch29 - master intensity low byte cell 4
ch30 – strobe cell 4
ch31 - red high byte cell 4
ch32 - red low byte cell 4
ch33 - green high byte cell 4
ch34 - green low byte cell 4
ch35 - blue high byte cell 4
ch36 - blue low byte cell 4
ch37 - master intensity high byte cell 5
ch38 - master intensity low byte cell 5
ch39 – strobe cell 5
ch40 - red high byte cell 5
Mode 10
63 channel 16 bit
R
G
B
R
G
B
R
G
B
R
G
B
R
G
B
R
G
B
R
G
B
ch41 - red low byte cell 5
ch42 - green high byte cell 5
ch43 - green low byte cell 5
ch44 - blue high byte cell 5
ch45 - blue low byte cell 5
ch46 - master intensity high byte cell 6
ch47 - master intensity low byte cell 6
ch48 – strobe cell 6
ch49 - red high byte cell 6
ch50 - red low byte cell 6
ch51 - green high byte cell 6
ch52 - green low byte cell 6
ch53 - blue high byte cell 6
ch54 - blue low byte cell 6
ch55 - master intensity high byte cell 7
ch56 - master intensity low byte cell 7
ch57 – strobe cell 7
ch58 - red high byte cell 7
ch59 - red low byte cell 7
ch60 - green high byte cell 7
ch61 - green low byte cell 7
ch62 - blue high byte cell 7
ch63 - blue low byte cell 7

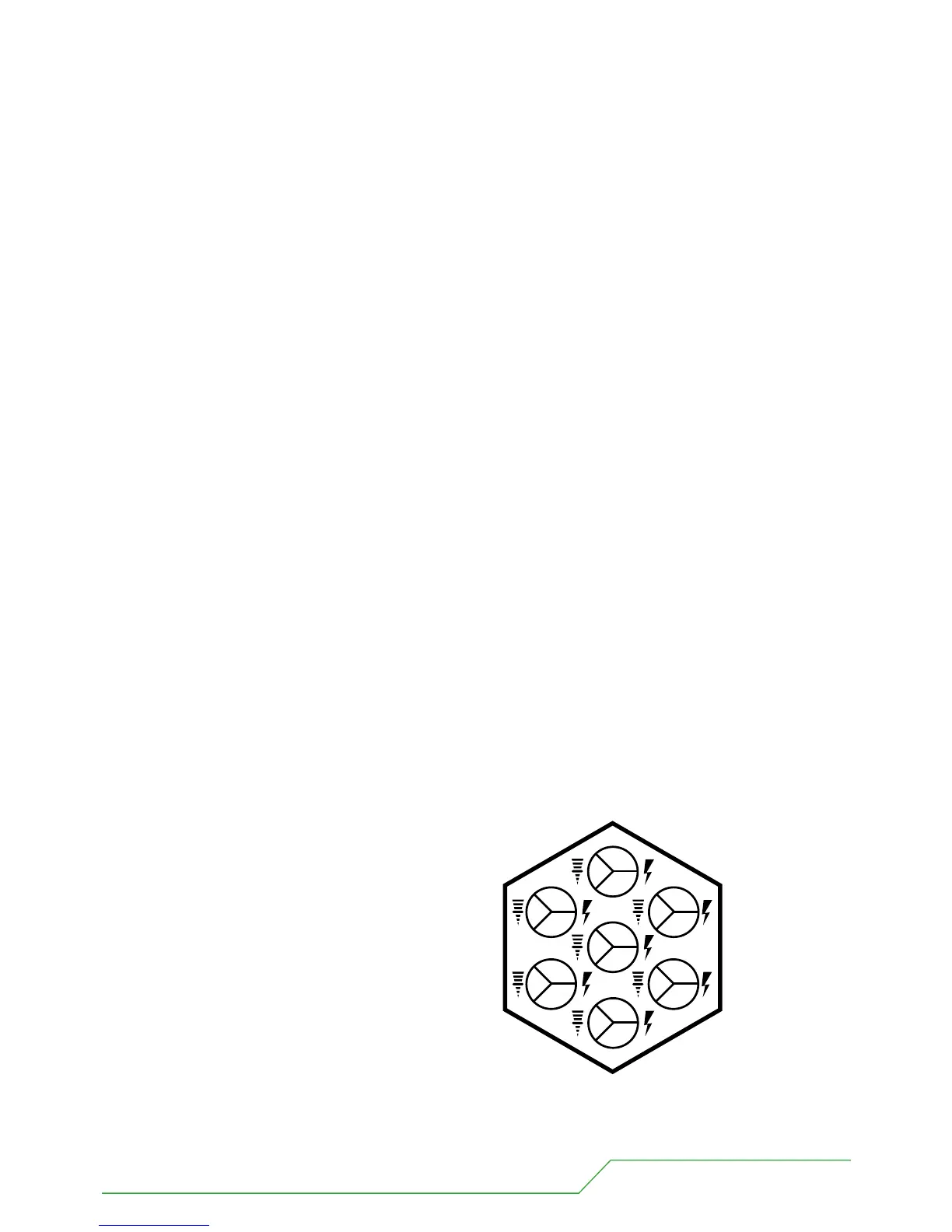

MODE 10 - 63 channel 16 bit
Ideal for control over all aspects of programming with high resolution master intensity, high resolution colour
control and a strobe control over each individual cell. (most useful when each cell is patched individually - 9ch)
BB7 USERS MANUAL - PAGE 11
