IAME 125 cc LEOPARD TaG engine User Manual

18/10/02 mod. C MAN-016 D
9
3.2

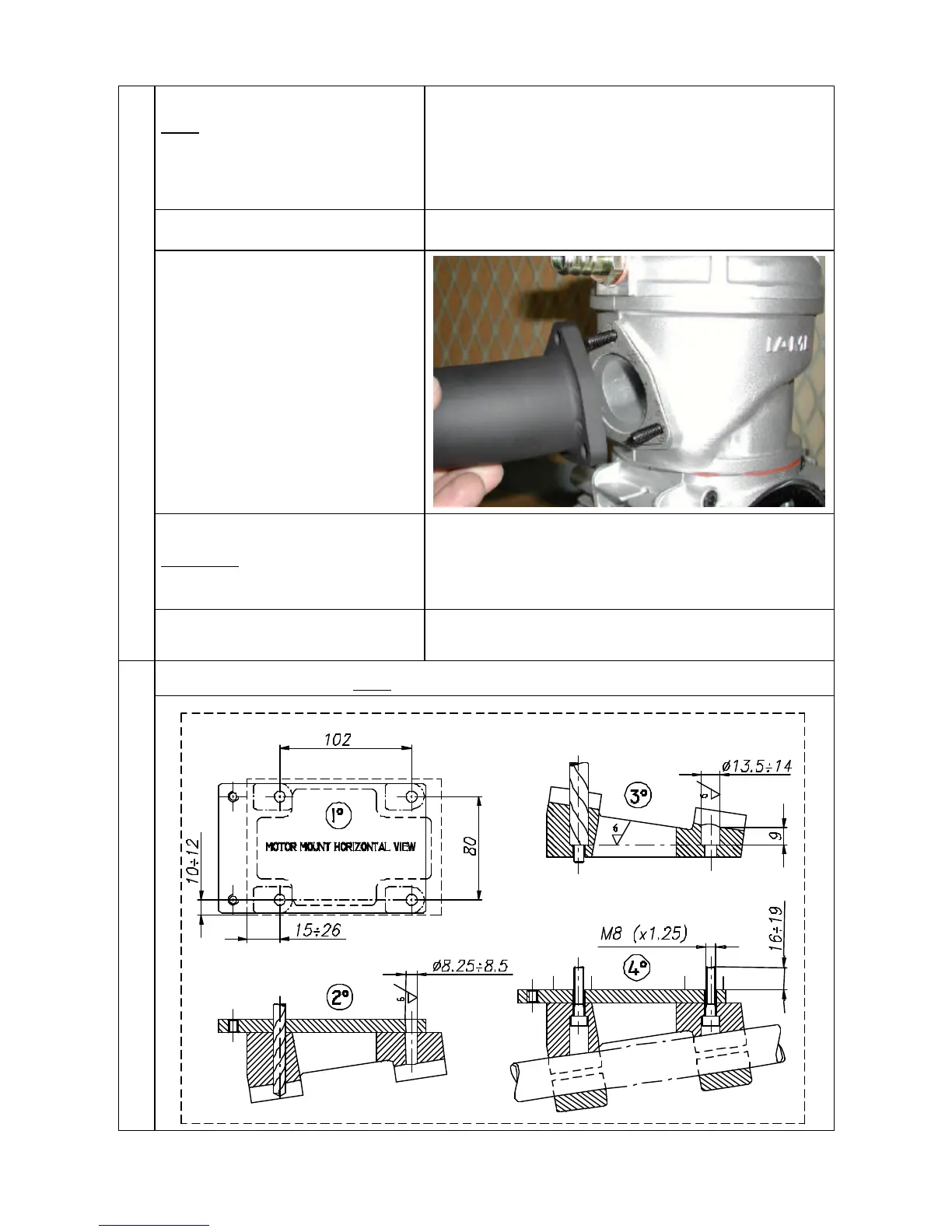

EXHAUST HEADER ASSEMBLY
NOTE:
THE ENGINE IS SUPPLIED WITH THE
EXHAUST GASKET AND NUTS ALREADY
INSERTED. WHEN THE SHIPMENT IS MADE
AN EXHAUST COVER TO PROTECT THE
INTERNAL PARTS.
3.2.1 REMOVE THE NUTS AND THE EXHAUST
COVER.
3.2.2
MAKE SURE THE EXHAUST GASKET IS
SEATED AND INSTALL THE EXHAUST
HEADER (SEE FIG 1).
3.2.3 INSTALL THE WASHERS
SUGGESTION:
PUT THE ENGINE IN HORIZONTAL POSITION
AND SET INTO POSITION THE WASHERS
WITH A SCREWDRIVER.
3.2.4 INSTALL THE THREE NUTS.
TORQUE AT 9 ÷ 11 Nm (80 ÷ 100 in-lb)
10 mm SOCKET WRENCH (OR 10 mm OPEN WRENCH.)
PREPARATION AND INSTALLATION OF THE MOTOR MOUNT
NOTE: ALL DIMENSIONS ARE IN MILLIMETERS
3.3
3.3.1 DRILL 4 HOLES (DIAM. 8.5mm) IN THE MOTOR MOUNT.
Fig.1
