IAME 125 cc LEOPARD TaG engine - Install the Exhaust

18/10/02 mod. C MAN-016 D
19
3.10 INSTALL THE EXHAUST
NOTE:
SEE SECTION 9 FOR RECOMMENDATIONS
ON THE IDEAL LENGHT OF THE EXHAUST.

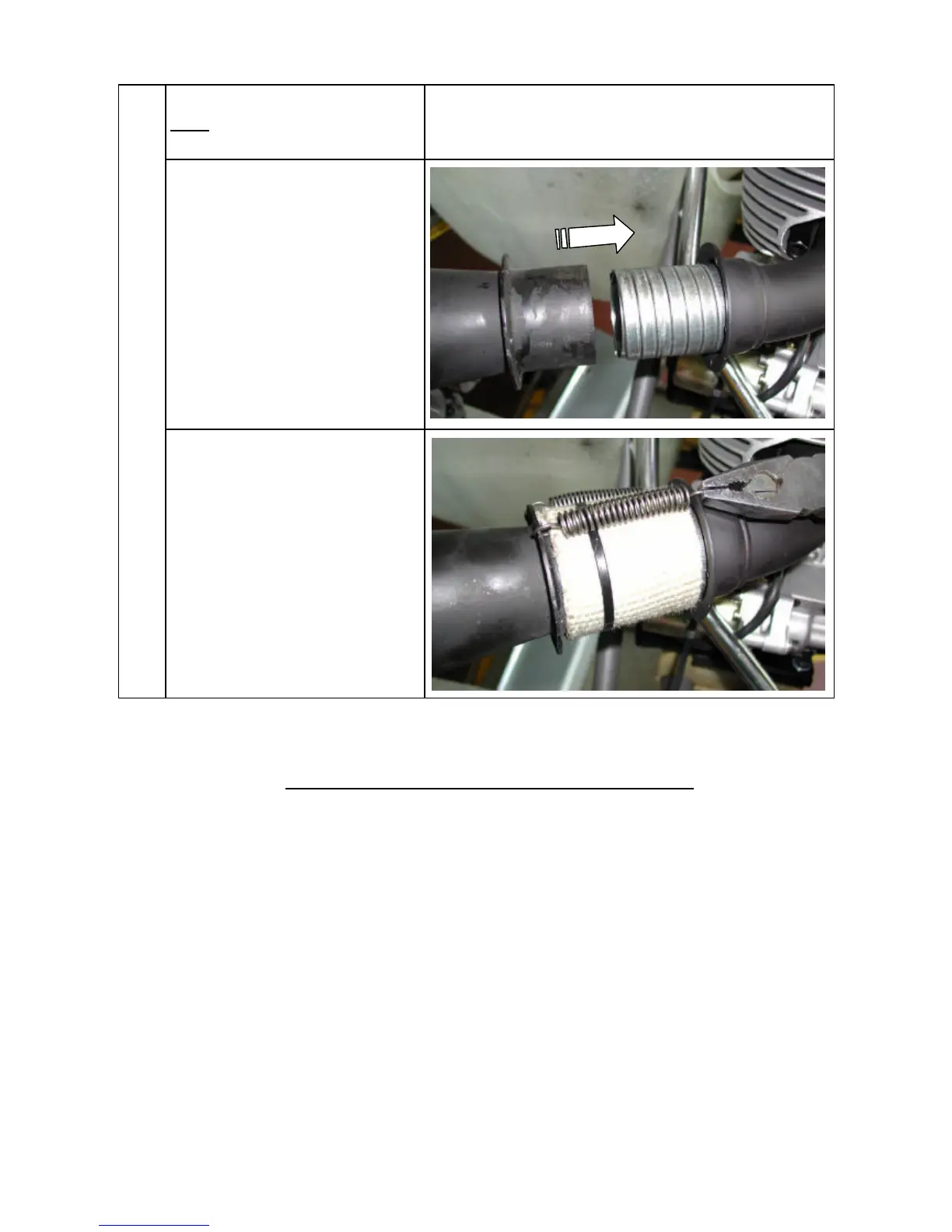

3.10.1 INSTALL THE FLEXIBLE (L= 65mm –
FLEXIBLE COMPLETELY CLOSED) AND THE
EXHAUST HEADER (SEE FIG. 33) AND
CONNECT THE EXHAUST.
3.10.2 INSTALL THE FIBER STRIP AROUND
THE FLEXIBLE AND FIX WITH THE 3
SPRINGS (SEE FIG. 34).
THE ENGINE IS READY TO BE STARTED
Fig.33
Fig.34
