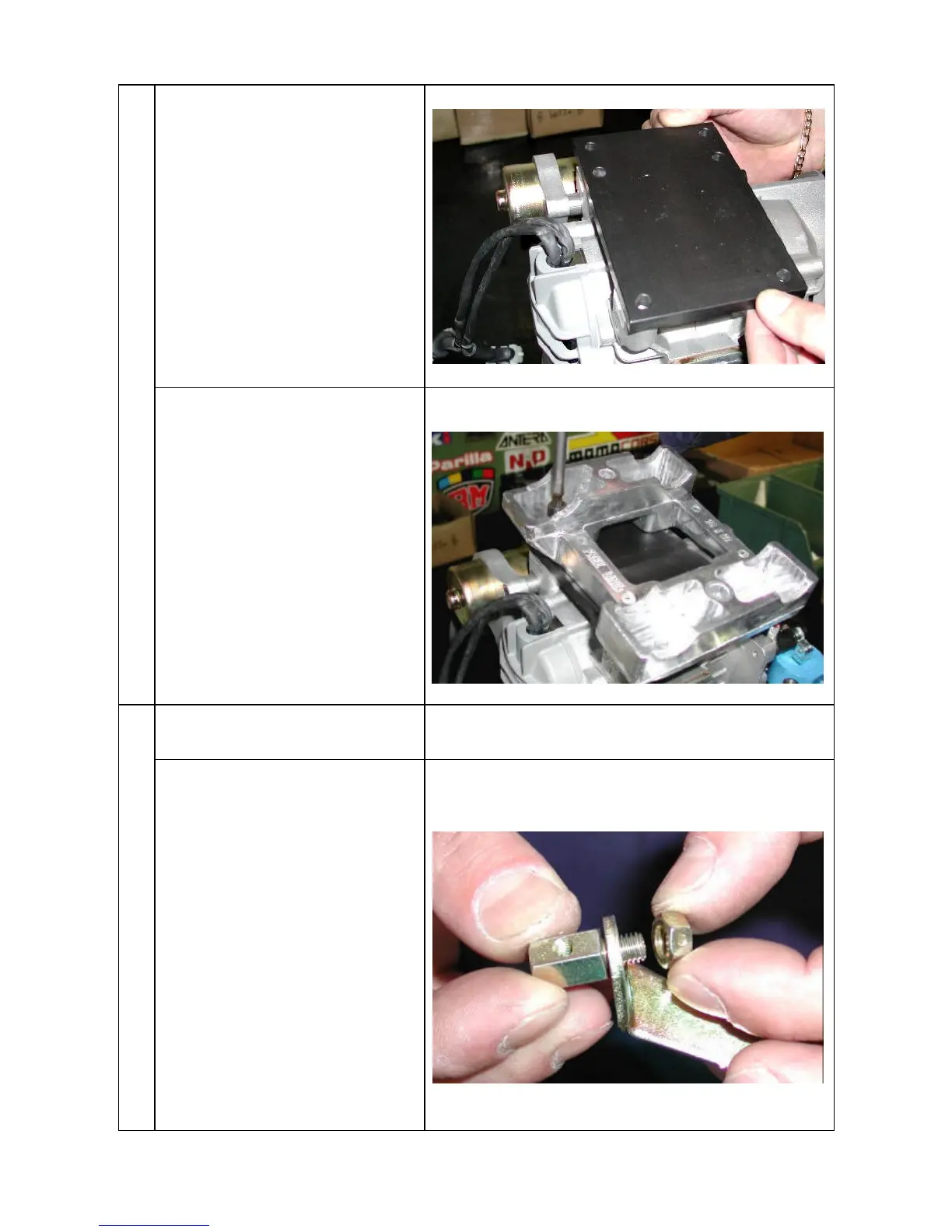

3.3.2 BEFORE INSTALLING THE MOTOR
MOUNT, POSITION THE ADDITIONAL MOUNT
PLATE ON THE CRANKCASE (SEE FIG. 2).
3.3.3 INSTALL THE MOTOR MOUNT. MAKE
SURE TO USE M8 ALLEN SCREWS WITH A
LENGHT SUCH AS TO ENGAGE, IN THE
CRANKCASE, A THREADED PORTION
LENGHT OF 16÷19mm (THE SCREW MUST
PROTRUDE FROM THE PLATE FOR 16÷19mm)
(SEE FIG. 3 AND DRAW. PAG. 9)
4 ALLEN SCREWS M8 – TORQUE AT 22÷24
Nm (190 ÷ 210 in-lb)
6 mm ALLEN WRENCH.
INSTALL THE CARBURETOR
3.4
3.4.1 INSTALL THE GAS CABLE CLAMP ON
THE SUPPORT (SEE FIG. 4)
12 POINT WRENCH 10mm
Fig.4
Fig.2
Fig.3
