IAME 125 cc LEOPARD TaG engine User Manual

18/10/02 mod. C MAN-016 D
12
ATTENTION:
WHEN REPLACING THE CARB GASKET
ALWAYS MAKE SURE THAT THE GASKET IS
INSTALLED SO THAT THE HOLE IN THE
GASKET MATCHES WITH THE TWO
PRESSURE HOLES IN THE CARB. AND IN
THE CRANKCASE: OTHERWISE THE ENGINE
WON’T START.
INSTALL THE CARBURETOR.
N.2 NUTS M6 AND TWO WASHERS.
TORQUE AT 6 ÷ 10 Nm (50 ÷ 90 in-lb)
3.5 INSTALL THE ENGINE ON THE
CHASSIS
3.5.1 POSITION THE ENGINE ON THE 2
OUTSIDE MAIN RAILS AND FIX THE MOTOR-
MOUNT WITH THE TWO CLAMPS (SEE
FIG.10)
SUGGESTION:
NEVER TORQUE COMPLETELY THE CLAMPS
UNTIL THE CHAIN IS INSTALLED AND
PROPERLY ALIGNED.
3.5.2 CHECK THE ALIGNMENT OF THE
ENGINE SPROCKET AND THE AXLE
SPROCKET WITH A STRAIGHT EDGE (SEE
FIG. 11).
3.5.3 INSTALL THE CHAIN (PITCH: # 219) (SEE
FIG. 12).

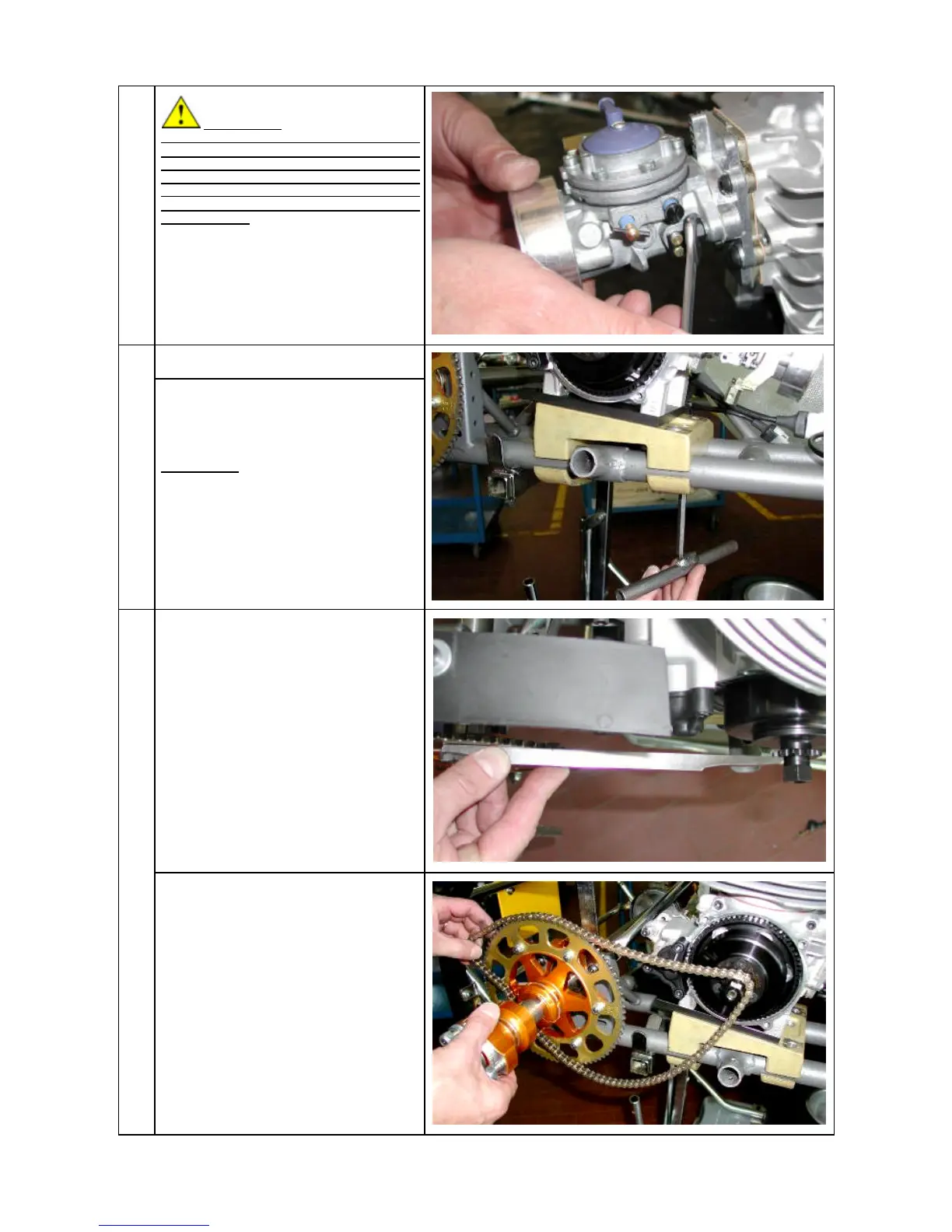

Fig.9
Fig.11
Fig.10
Fig.12
