IAME 125 cc LEOPARD TaG engine User Manual

18/10/02 mod. C MAN-016 D
7
7

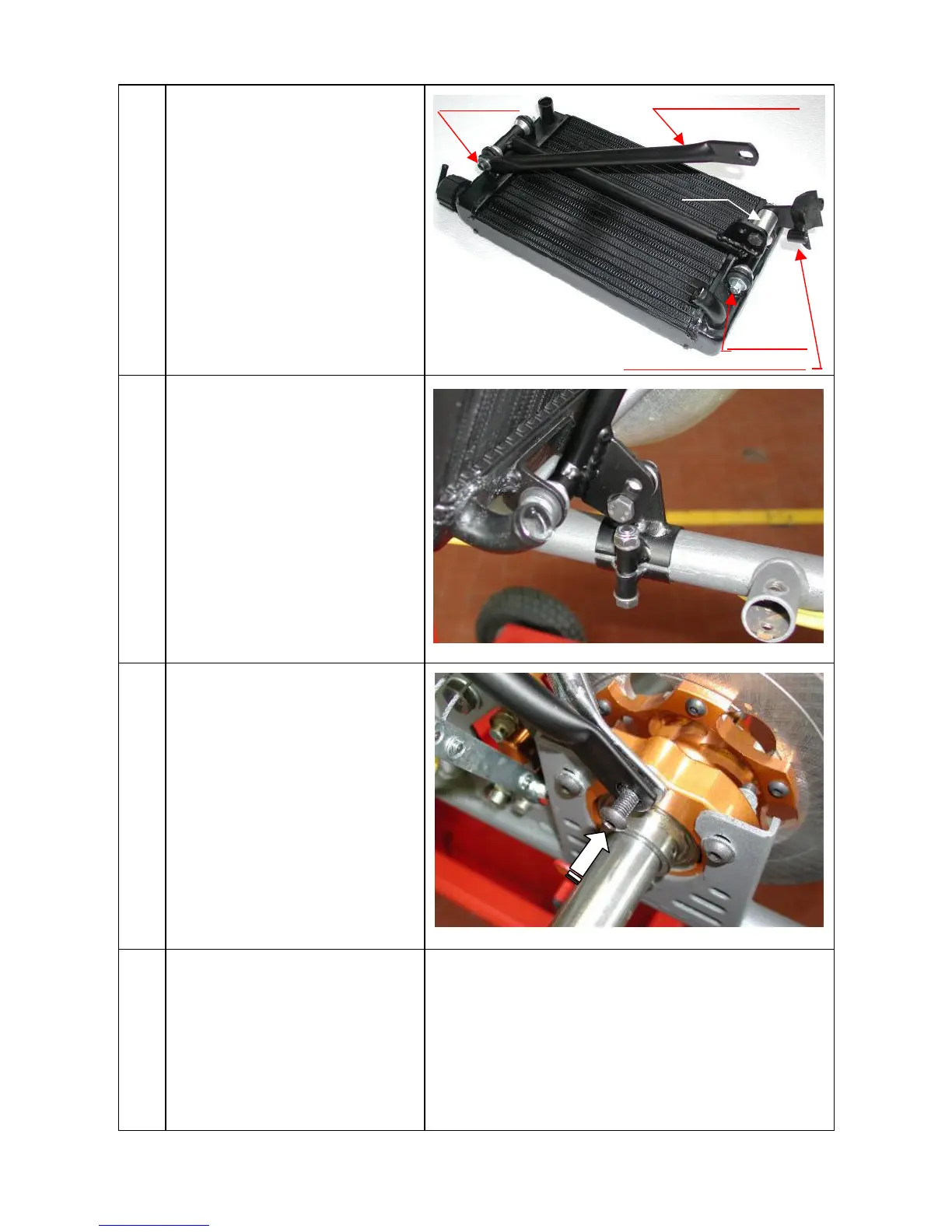

FIX THE SUPPORT BRACKET TO THE
RADIATOR, AND ALSO INSERT THE UPPER
SUPPORT BRACKET (SCREWS M6X90 AND
M6X85 WITH NUTS).
PLACE THE RADIATOR LOWER FIXING
CLAMP AND THE SPACER ON THE
RADIATOR SUPPORT BRACKET (SCREW
M8X45 WITH NUT) (SEE FIG. 7).
8
PLACE THE LOWER FIXING CLAMP ON THE
CHASSIS SIDE RAIL (BRAKE SIDE) (N°2
SCREWS M8X45 WITH NUTS) TIGHTEN THE
BOLTS BY HAND (SEE FIG. 8).
9
PLACE THE RADIATOR SO THAT THE HOLE,
ON THE UPPER RADIATOR BRACKET, AND
ONE OF THE UPPER HOLES ON THE
BEARING SUPPORT BOX, MATCH (SEE
FIG. 9).
ONCE YOU FIND THE CORRECT POSITION,
TIGHTEN ALL THE BOLTS
10
THE KIT INCLUDES THREE RUBBER
HOSES.
CONNECT THE FIRST HOSE TO THE
FITTING ON THE RADIATOR INLET AND THE
FITTING ON THE ENGINE OUTLET, TIGHTEN
WITH STEEL CLAMPS (SEE FIG.10).
Fig.7
UPPER SUPPORT BRACKET
RADIATOR LOWER FIXING CLAMP
SPACER
Fig.8
Fig.9
SCREW
M6X90
SCREW M6X85
