IAME EASY-KART 2003 - Page 11

9
MAN-028

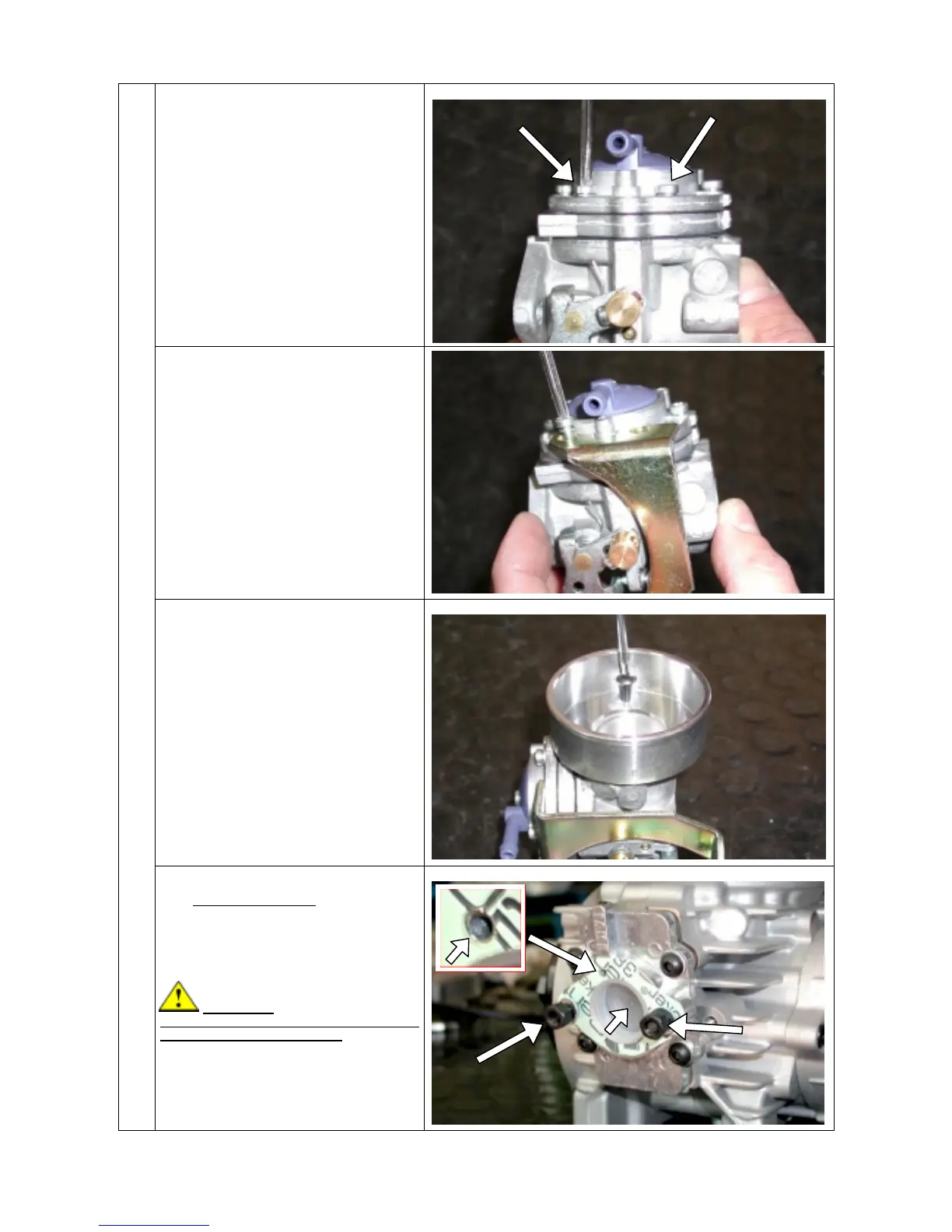

3.3.2 REMOVE 2 SCREWS 3.5mm ON THE
CARB. PUMP (IN CORRESPONDENCE OF THE
THROTTLE LEVER) (SEE FIG. 6).
SCREWDRIVER 4.8 mm.
3.3.3 INSERT THE GAS BRACKET AND THE
TWO SCREWS (SEE FIG. 7).
3.3.4 INSTALL THE INTAKE SUPPORT – 2
SCREWS M5 X10 (SEE FIG. 8)
3 mm ALLEN WRENCH
3.3.5 INSTALL THE CARBURETOR –
REED VALVE ENGINE
(SEE FIGG. 9/10).
 REMOVE THE TWO M6 NUTS FROM THE
INLET MANIFOLD.
 REMOVE THE PLASTIC PLUG FROM THE
INLET MANIFOLD.
ATTENTION:
MAKE SURE THAT THE PRESSURE HOLE ON
THE GASKET IS NOT PLUGGED.
10mm OPEN WRENCH
Fi
g
.6
Fi
g
.7
Fi
g
.8
Fi
g
.9
