8
MAN-028

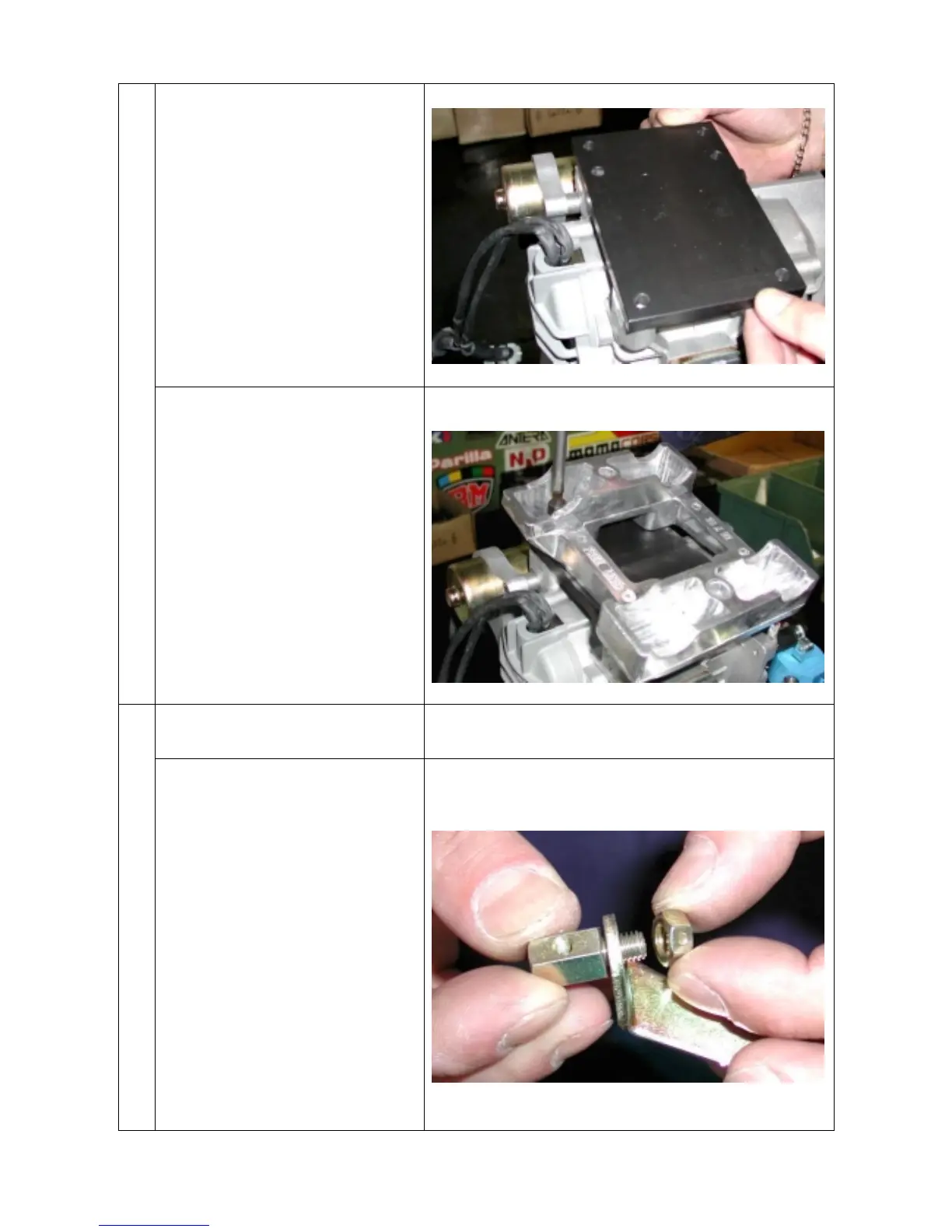

3.2.2 BEFORE INSTALLING THE MOTOR
MOUNT, POSITION THE ADDITIONAL MOUNT
PLATE (IF INCLUDED IN THE SUPPLY) ON
THE CRANKCASE (SEE FIG. 3).
3.2.3 INSTALL THE MOTOR MOUNT. MAKE
SURE TO USE M8 ALLEN SCREWS WITH A
LENGHT SUCH AS TO ENGAGE, IN THE
CRANKCASE, A THREADED PORTION
LENGHT OF APPR. 18mm (THE SCREW MUST
PROTRUDE FROM THE PLATE FOR APPR.
18mm) (SEE FIG. 4 AND DRAW. PAG. 7)
4 ALLEN SCREWS M8 – TORQUE AT 22÷24
Nm
6 mm ALLEN WRENCH.
INSTALL THE CARBURETOR
3.3
3.3.1 INSTALL THE GAS CABLE CLAMP ON
THE SUPPORT (SEE FIG. 5)
12 POINT WRENCH 10mm
Fi
