IAME EASY-KART 2003 User Manual

25
MAN-028
ATTENTION:

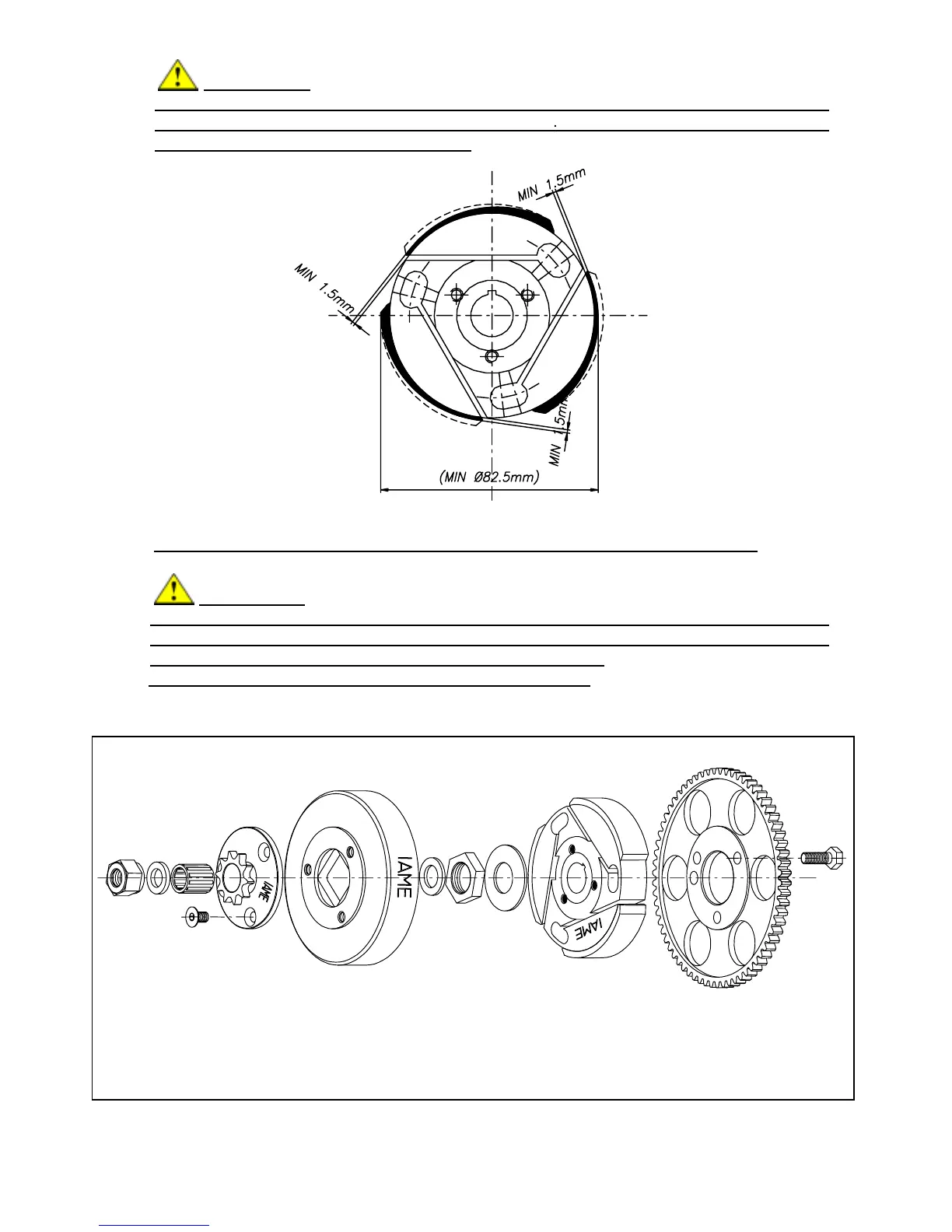

In case the friction material has been totally worn out and there has been a
metal contact between the clutch body and the clutch drum, it is necessary to
replace the clutch drum. See drawing.
11- INSTRUCTIONS FOR THE DISASSEMBLY / ASSEMBLY OF THE CLUTCH
ATTENTION:
The following operations can be performed by a skilled mechanic under the
conditions to have available the dedicated tools shown on the text, otherwise it
is necessary to apply to an Authorized Service Center.
Refer to the following drawing during the operations.
A
A
A
1
2
3
4
5
6
7
8
9
10
A
A
A
11
12
1 Drum nut 5 Sprocket 9 Cone safety washer
2 External washer 6 Clutch drum 10 Clutch body
3 Roller cage 7 Internal washer 11 Starter ring
4 Screw 8 Locking nut 12 Screw
