MAN048ING18

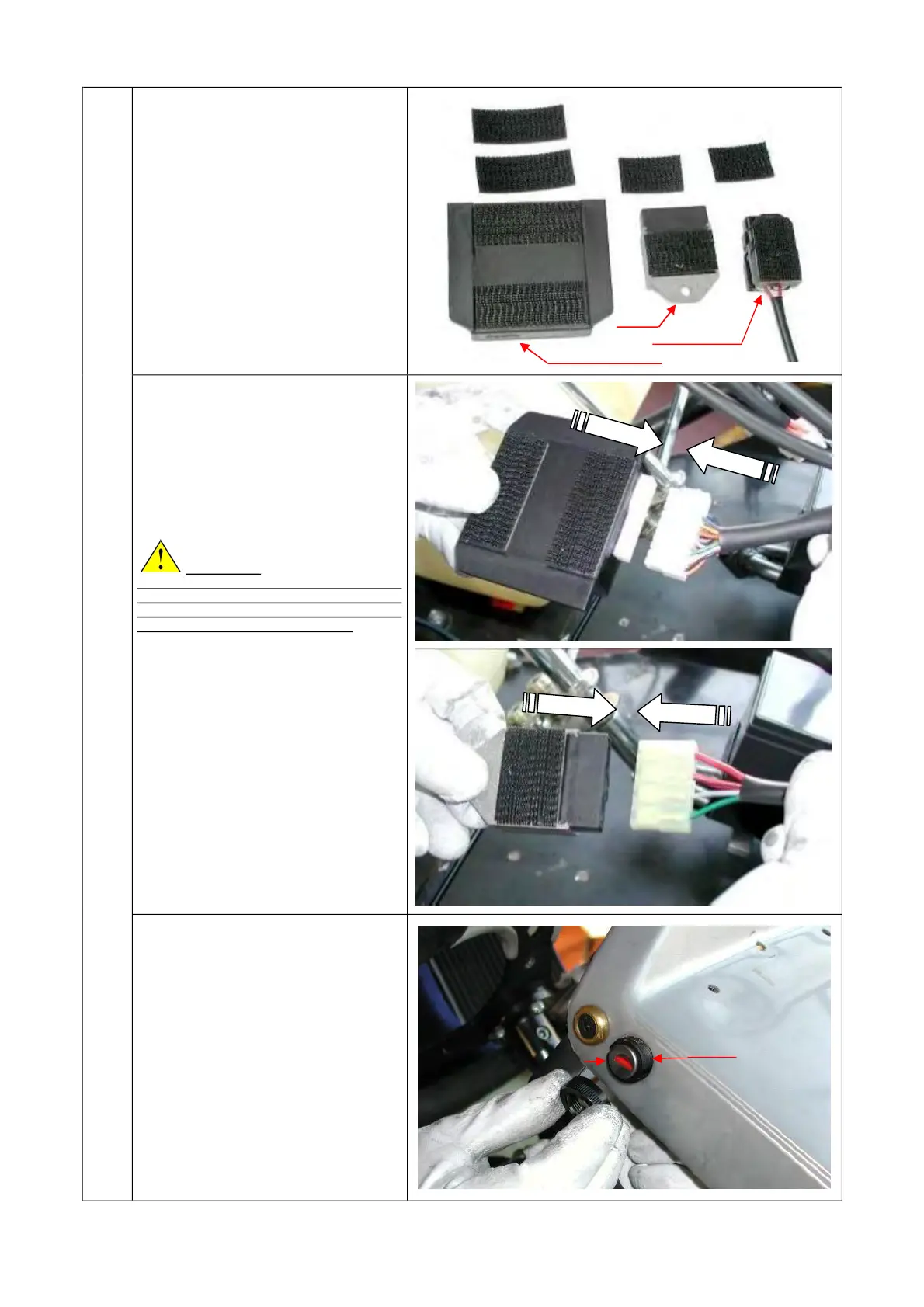

3.8.10CUTTHEDUALLOCKFIXINGSTRAP

ANDATTACHITTOTHEELECTRONICBOX,

THESTARTERFUSE,ANDTHEFUSE

HOLDER(SEEFIG.28).

3.8.11 –CONNECT THE ELECTRONIC BOX

TO THE 20 POLE TERMINAL IN THE

WIRINGHARNESS(SEEFIG.29).

CONNECTTHE STARTERRELAYTOTHE4

POLETERMINAL IN THEWIRING HARNESS

(SEEFIG.30).

ATTENTION:

MAKE SURE THAT THE FIXING TONGUES

ARE PROPERLY INSERTED TO

GUARANTEE THE BEST POSSIBLE

CONNECTIONOFTHETERMINALS.

3.8.12 DRILL A Ø 22mm HOLE IN THE SIDE

OF FRONT FAIRING (ENGINE SIDE) AND

INSERT THE STARTING ASSEMBLY (SEE

FIG.31).

SECURE THE ASSEMBLY WITH THE

THREADEDRINGNUT.

Fig.28

ELECTRONICBOX.

RELAY

FUSEHOLDER

Fig.29

Fig.30

Fig.31

Ø22mm

THT

IAME Parilla Leopard TaG Series User Manual
