IAME Parilla LEOPARD - Page 14

MAN048ING12

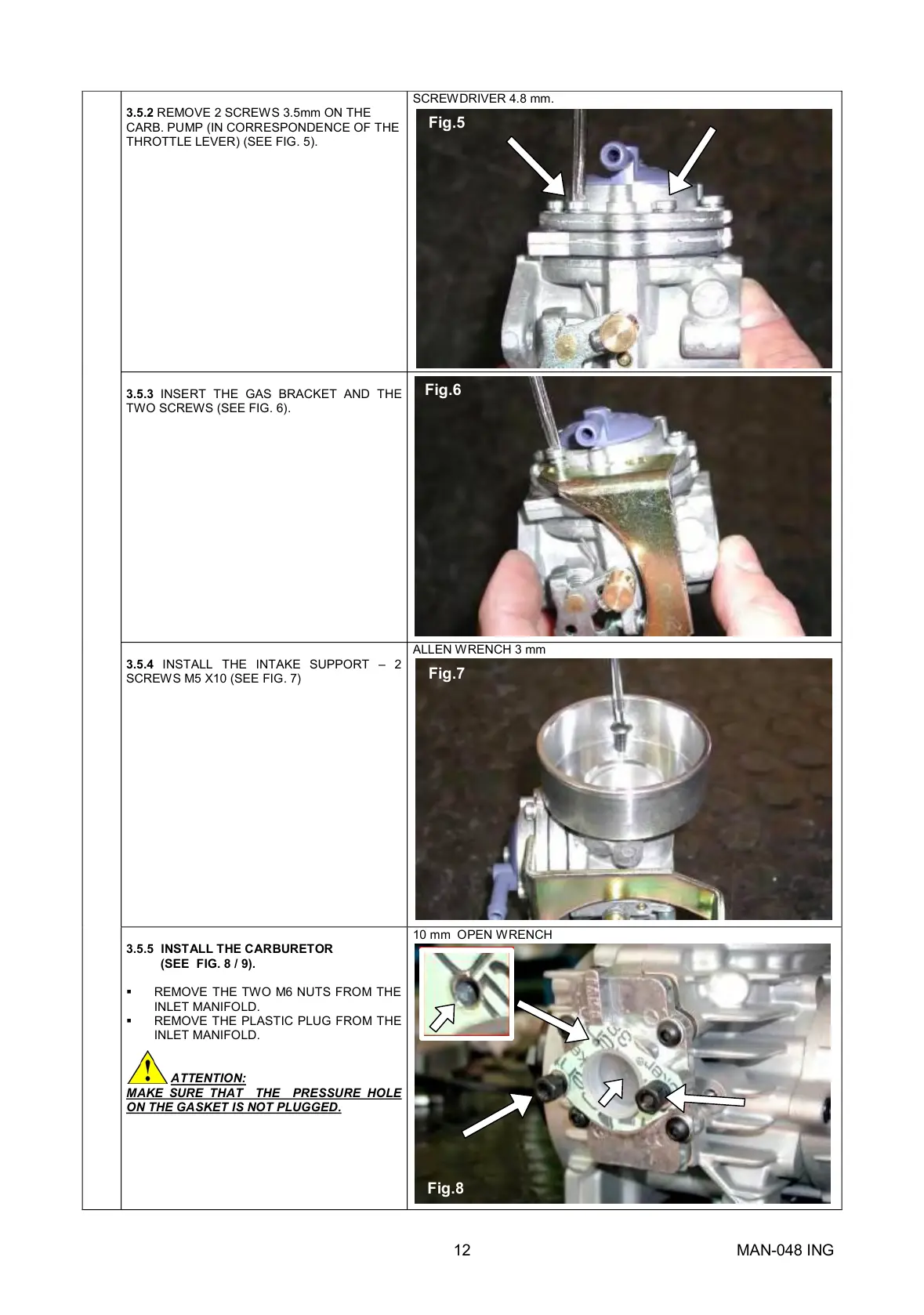

3.5.2REMOVE2SCREWS3.5mmONTHE
CARB.PUMP(INCORRESPONDENCEOFTHE
THROTTLELEVER)(SEEFIG.5).
SCREWDRIVER4.8mm.
3.5.3 INSERT THE GAS BRACKET AND THE
TWOSCREWS(SEEFIG.6).
3.5.4 INSTALL THE INTAKE SUPPORT – 2
SCREWSM5X10(SEEFIG.7)
ALLENWRENCH3mm
3.5.5 INSTALLTHECARBURETOR
(SEEFIG.8/9).
§ REMOVETHETWOM6NUTSFROMTHE
INLETMANIFOLD.
§ REMOVETHEPLASTICPLUGFROMTHE
INLETMANIFOLD.
ATTENTION:
MAKE SURE THAT THE PRESSURE HOLE
ONTHEGASKETISNOTPLUGGED.
10mmOPENWRENCH
Fig.5
Fig.6
Fig.7
Fig.8
