IAME Parilla LEOPARD - Preparation and Installation of the Engine on the Chassis; Installation Sketch

MAN048ING5
3 PREPARATIONANDINSTALLATIONOFTHEENGINEONTHECHASSIS
NOTE:
Incasetheengineissuppliedalreadyassembledonthechassis,itisatcareofthe assemblerto
follow these instructions. The final customer, in this case, can skip this section and can start
readingfromsection4.
Whenevertheengineoracomponentisdisassembled,itisnecessarytoalwaysfollowtheunder
showninstructionsforproperreassembly.

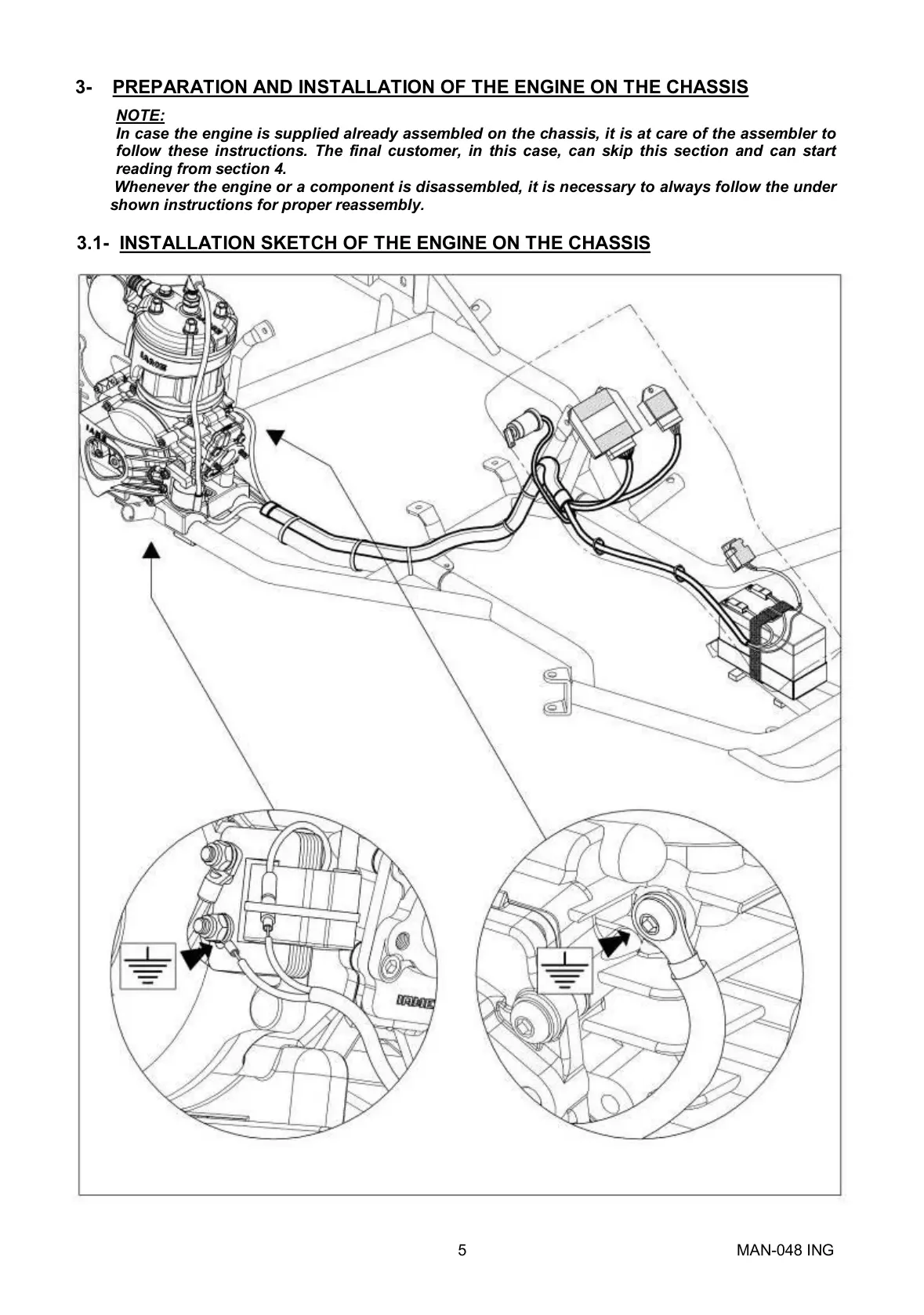

3.1 INSTALLATIONSKETCHOFTHEENGINEONTHECHASSIS
