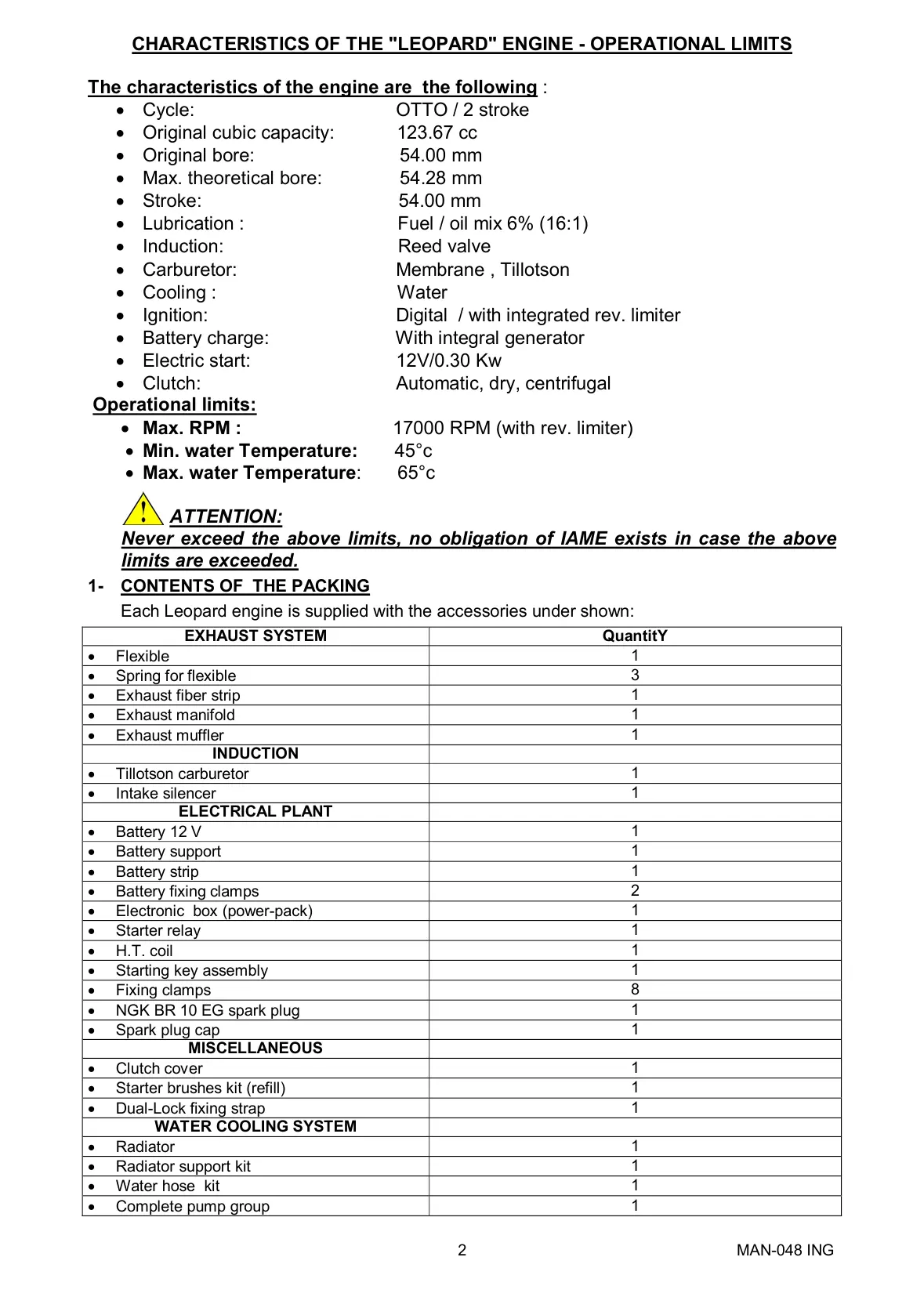

CHARACTERISTICSOFTHE"LEOPARD"ENGINEOPERATIONALLIMITS
Thecharacteristicsoftheenginearethefollo wing:
· Cycle: OTTO/2stroke
· Originalcubiccapacity:123.67cc
· Originalbore:54.00mm
· Max.theoreticalbore:54.28mm
· Stroke:54.00mm
· Lubrication: Fuel/oilmix6%(16:1)
· Induction: Reedvalve
· Carburetor: Membrane,Tillotson
· Cooling: Water
· Ignition: Digital/withintegratedrev.limiter
· Batterycharge: Withintegralgenerator
· Electricstart: 12V/0.30Kw
· Clutch: Automatic,dry,centrifugal
Operationallimits:
· Max.RPM: 17000RPM(withrev.limiter)
· Min.waterTemperature: 45°c
· Max.waterTemperature:65°c
ATTENTION:
Never exceedthe above limits, noobligationof IAMEexists in casetheabove
limitsareexceeded.
1 CONT ENT SOFT HEPACKING
EachLeopardengineissuppliedwiththeaccessoriesundershown:
EXHAUSTSYSTEM QuantitY
· Flexible
1
· Springforflexible
3
· Exhaustfiberstrip
1
· Exhaustmanifold
1
· Exhaustmuffler
1
INDUCTION
· Tillotsoncarburetor
1
· Intakesilencer
1
ELECTRICALPLANT
· Battery12V
1
· Batterysupport
1
· Batterystrip
1
· Batteryfixingclamps
2
· Electronicbox(powerpack)
1
· Starterrelay
1
· H.T.coil
1
· Startingkeyassembly
1
· Fixingclamps
8
· NGKBR10EGsparkplug
1
· Sparkplugcap
1
MISCELLANEOUS
· Clutchcover
1
· Starterbrusheskit(refill)
1
· DualLockfixingstrap
1
WATERCOOLINGSYSTEM
· Radiator
1
· Radiatorsupportkit
1
· Waterhosekit
1
· Completepumpgroup
1
